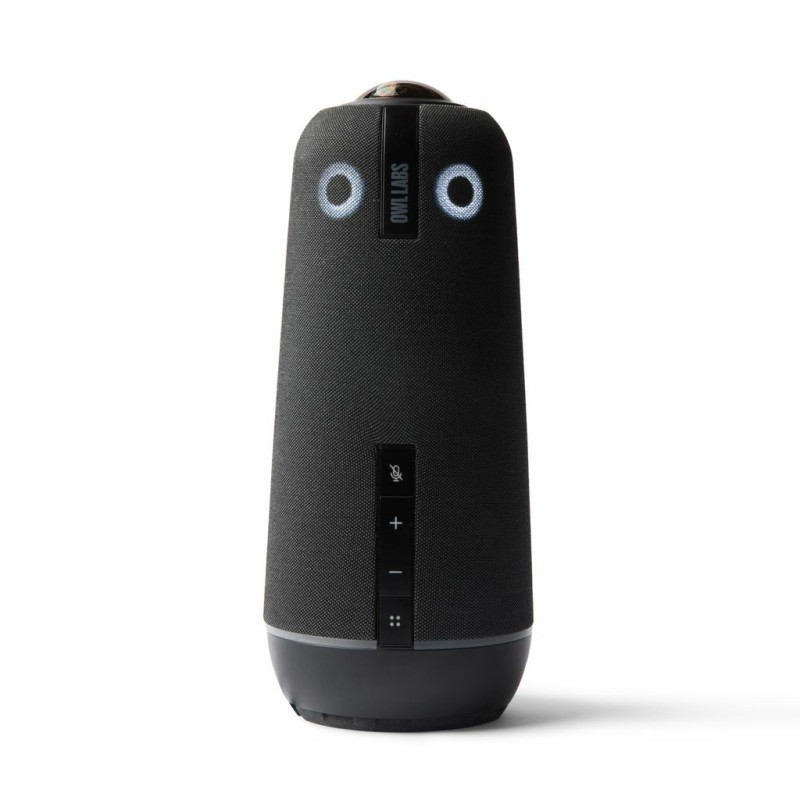

Owl Labs Meeting Owl 4+, Group video conferencing system, CMOS, 4K Ultra HD, 30 fps, Charcoal
| Product type | Group video conferencing system |
| Product color | Charcoal |
| Number of cameras | 1 |
| Signal-to-Noise Ratio (SNR) | 72 dB |
| HD type | 4K Ultra HD |
| Maximum video resolution | 3840 x 2160 pixels |
| Supported video modes | 360p, 720p, 1080p, 1440p, 2160p |
| Supported graphics resolutions | 640 x 360, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160 |
| Maximum frame rate | 30 fps |
| Video formats supported | MJPG, NV12 |
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| Microphone pick-up range | 98.4" (2.5 m) |
| USB connector type | USB Type-C |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Security algorithms | WPA2, WPA3 |
| Megapixel | 64 MP |
| Sensor type | CMOS |
| Camera type | Single camera |
| Zoom capability | Yes |
| Effective sensor resolution | 64 MP |
| Focal length range | 300 - 3000 mm |
| Horizontal field of view | 360° |
| Vertical field of view | 55° |
| Focus adjustment | Auto |
| Built-in display | No |
| Microphone sensitivity | -36 dB |
| Microphone direction type | Omnidirectional |
| Microphone mute | Yes |
| Number of microphones | 8 |
| Country of origin | Vietnam |
| Processor family | Qualcomm Snapdragon |
| Processor model | QCS8250 |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | ChromeOS, Linux |
| Power source type | DC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Current | 1.6 A |
| DC output voltage | 20 V |
| DC output current | 3 A |
| Width | 4.57" (116 mm) |
| Depth | 4.57" (116 mm) |
| Height | 10.8" (275 mm) |
| Weight | 3.31 lbs (1.5 kg) |
| Package width | 13" (330 mm) |
| Package depth | 20.9" (530 mm) |
| Package height | 18.1" (460 mm) |
| Package weight | 5 lbs (2.27 kg) |
| Cables included | AC, USB Type-C |
| AC adapter included | Yes |
| Packaging content | Meeting Owl 4+ Power adapter and line cord USB-C to USB-C SuperSpeed cable Setup Guide Table Card + Owl holder Safety/regulatory/warranty slipsheet Owl Connect card Owl Labs sticker |
