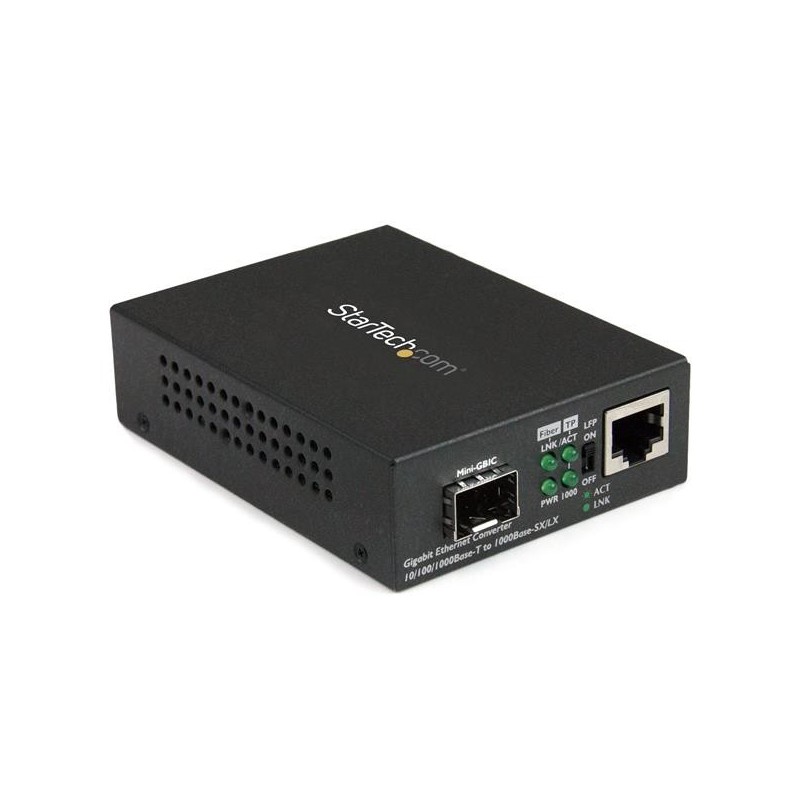

MCM1110SFP - MCM1110SFP

Convert and extend different networks over a Gigabit fiber cable connection using the SFP of your choice

This fiber media converter offers an easy, cost-effective way to extend your network over fiber, using the SFP of your choice. It converts a copper RJ45 Ethernet connection to Gigabit fiber to extend your network over longer distances or connect workstations to switches. The converter provides a powerful networking solution for campuses, businesses, government facilities, stadiums, or other areas requiring network access.

A cost-effective extension and flexible performance

The Gigabit fiber media converter provides a cost-efficient way to connect your Ethernet network to remote devices over a fiber backbone. It features an open SFP slot that lets you choose the MSA-compliant Gigabit SFP that best suits your fiber connection mode (single / multimode) and distance requirements.

A versatile way to connect different networks

Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.

Installation is fast and easy

The unmanaged fiber media converter has a standalone design with simple plug-and-play set-up to ensure fast and easy installation. Compact in size, the converter gives you flexible installation options - including a wall mounting option.

The MCM1110SFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Convert between an RJ45 copper Ethernet connection and a fiber optic connection to extend your network cost-effectively
- Gigabit Open SFP slot to customize the network extension distance to your requirements with virtually any MSA-compliant multi or single mode transceiver
- 10/100/1000 Mbps compatible RJ45 port supports auto negotiation to bridge different network speeds and devices to a Gigabit fiber network

StarTech.com MCM1110SFP. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 1000Base-T, 100Base-TX, 10Base-T, Converter output interface: 1000Base-LX, 1000Base-SX. Fiber mode structure: Multi-mode, Single-mode, Mean time between failures (MTBF): 50000 h. LED indicators: Activity, Link, Power, Product color: Black, Housing material: Steel. Fiber optic connector: SFP, Connectivity technology: Wired. Input voltage: 100 - 240 V, Input current: 1 A, Output voltage: 5 V

Maximum data transfer rate	1000 Mbit/s
Converter input interface	1000Base-T, 100Base-TX, 10Base-T
Converter output interface	1000Base-LX, 1000Base-SX
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Jumbo frames support	Yes
Auto MDI/MDI-X	Yes
Duplex system	Full
Wavelength-division multiplexing (WDM)	Yes
Fiber mode structure	Multi-mode, Single-mode
Mean time between failures (MTBF)	50000 h
Internal	No
LED indicators	Activity, Link, Power
Product color	Black
Housing material	Steel
Fiber optic connector	SFP
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
DC-in jack	Yes
Input voltage	100 - 240 V
Input current	1 A
Output voltage	5 V
Output current	2 A
Power consumption (typical)	5 W
Power over Ethernet (PoE)	No
External power adapter	Yes
Power plug type	Type N
Width	2.76" (70 mm)
Depth	3.74" (95 mm)
Height	1.02" (26 mm)
Weight	6.53 oz (185 g)
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Manual	Yes
Package width	11.2" (284 mm)
Package depth	5.47" (139 mm)
Package height	2.68" (68 mm)
Package weight	19.2 oz (544 g)
Compliance certificates	RoHS
Certification	CE, FCC
Harmonized System (HS) code	85176990
