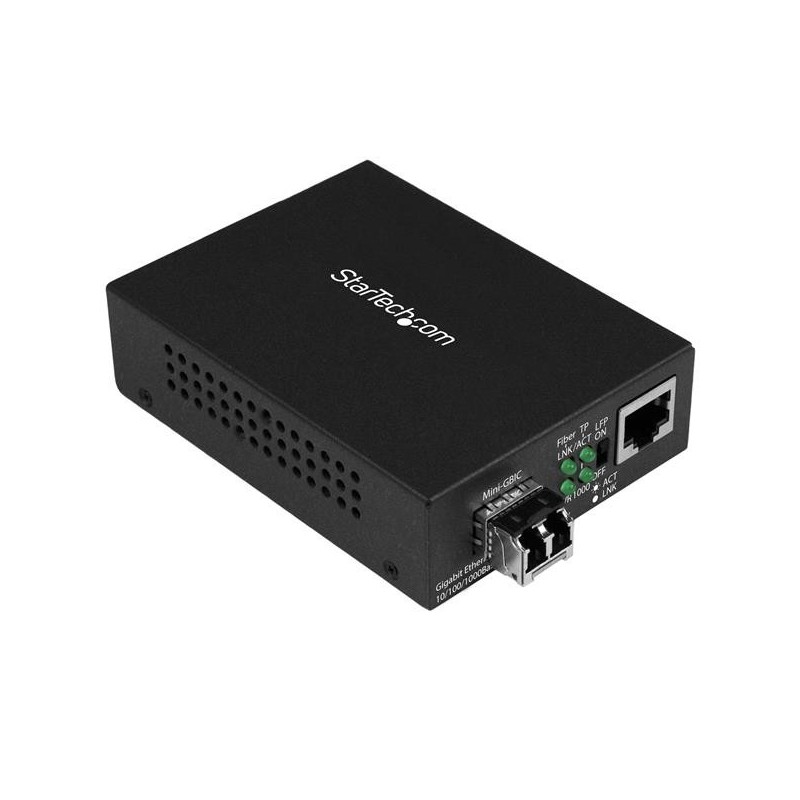

MCM1110MMLC - MCM1110MMLC

Convert and extend different networks over a Gigabit fiber cable connection up to 550m / 1804ft

This fiber media converter offers an easy, cost-effective way to extend your network over Gigabit fiber. It is equipped with a multimode transceiver which converts a copper RJ45 Ethernet connection to Gigabit fiber to extend your network over longer distances or connect workstations to switches. The converter provides a powerful extended networking solution for campuses, businesses, government facilities, stadiums, or other areas requiring network access.

Cost-effective extension and dependable performance

The Gigabit Fiber Media Converter provides a cost-effective and dependable solution for shorter range network extensions. It connects an Ethernet network to remote devices over a fiber backbone, with a 550m range on the fiber optic interface. The media converter has a durable metal housing, engineered to deliver long-lasting performance.

Versatile connections for broad compatibility

Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.

The multimode transceiver is removable, giving you the flexibility to change your transceiver in the future to meet your networking needs.

Easy installation and compact convenience

The unmanaged fiber media converter has a standalone design with simple plug-and-play set-up to ensure fast and easy installation. Compact in size, the converter gives you flexible installation options - including a wall mounting option to save space.

The MCM1110MMLC is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Convert between an RJ45 copper Ethernet connection and a fiber optic connection to extend your network cost-effectively
- 10/100/1000 Mbps RJ45 port supports auto negotiation to bridge different network speeds and devices to a Gigabit fiber network
- Compact standalone design and wall mounting option for easy and convenient installation

StarTech.com MCM1110MMLC. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 1000Base-T, 100Base-TX, 10Base-T, Converter output interface: 1000Base-LX, 1000Base-SX. Maximum transfer distance: 21653.5" (550 m), Wavelength: 850 nm, Fiber mode structure: Multi-mode. LED indicators: Activity, Link, Power, Product color: Black, Housing material: Steel. Fiber optic connector: LC, Connectivity technology: Wired. Input voltage: 100 - 240 V, Input current: 1 A, Output voltage: 5 V

Maximum data transfer rate	1000 Mbit/s
Converter input interface	1000Base-T, 100Base-TX, 10Base-T
Converter output interface	1000Base-LX, 1000Base-SX
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Data transfer rate	1000 Mbit/s
Jumbo frames support	Yes
Auto MDI/MDI-X	Yes
Duplex system	Full
Maximum transfer distance	21653.5" (550 m)
Wavelength	850 nm
Wavelength-division multiplexing (WDM)	No
Fiber mode structure	Multi-mode
Mean time between failures (MTBF)	50000 h
Internal	No
LED indicators	Activity, Link, Power
Product color	Black
Housing material	Steel
Fiber optic connector	LC
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
DC-in jack	Yes
Input voltage	100 - 240 V
Input current	1 A
Output voltage	5 V
Output current	2 A
Power over Ethernet (PoE)	No
External power adapter	Yes
Power plug type	Type N
Width	2.76" (70 mm)
Depth	3.7" (94 mm)
Height	1.02" (26 mm)
Weight	7.09 oz (201 g)
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Manual	Yes
Package width	5.51" (140 mm)
Package depth	11.2" (284 mm)
Package height	2.68" (68 mm)
Package weight	19.6 oz (556 g)
Compliance certificates	RoHS
Certification	CE, FCC, REACH, TAA
Harmonized System (HS) code	85176990
