CSV-1596 - W128561543

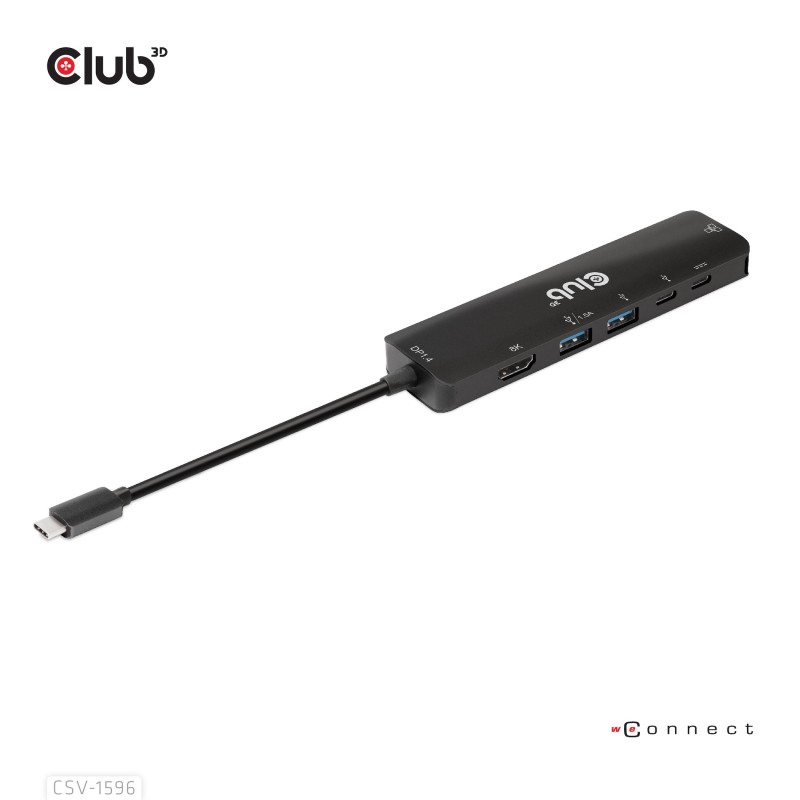

CLUB3D CSV-1596, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 100 W, 1.4/2.3, 100,1000 Mbit/s, Black, 8K Ultra HD
Description
The Club 3D CSV-1596 is a USB Gen1 Type-C, 6-in-1 Hub with HDMI™8K30Hz-4K120Hz, 2xUSB Type-A, RJ45 and 2xUSB Type-C, Data and PD charging 100 watt, providing an ideal solution for extending the port of Type-C/Thunderbolt host (PC/Laptop/Mobile phone,etc.), especially for those host with a single Type-C port. This hub adopts the latest DP1.4 Alt mode supported IC, enabling to output HDMI™ video with max. 8K30Hz-4K120Hz and at the meanwhile transfer USB 3.1 data with max 5Gbps. The USB Type-A and Type-C data ports allow you to connect 4 USB devices simultaneously. 1 Gigabit Ethernet for super fast Ethernet. Besides, the Type-C female supports PD 3.0 PD Charging 100W (15W is dedicated to the functioning of this product, the rest power(max 85W) will be passed to charge for the host. This 6-in-1 Hub will work on all DP Alt mode supported Type-C hosts.
CLUB3D CSV-1596. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W, HDCP version: 1.4/2.3. Ethernet LAN data rates: 100,1000 Mbit/s. Product color: Black, HD type: 8K Ultra HD, Maximum refresh rate: 120 Hz. Output voltage: 5 V, Output current: 1.5 A, Power consumption (max): 7.5 W. Width: 4.96" (126 mm), Depth: 1.26" (32 mm), Height: 1.38" (35 mm)
CLUB3D CSV-1596. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W, HDCP version: 1.4/2.3. Ethernet LAN data rates: 100,1000 Mbit/s. Product color: Black, HD type: 8K Ultra HD, Maximum refresh rate: 120 Hz. Output voltage: 5 V, Output current: 1.5 A, Power consumption (max): 7.5 W. Width: 4.96" (126 mm), Depth: 1.26" (32 mm), Height: 1.38" (35 mm)
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB Power Delivery | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDCP | Yes |
| HDCP version | 1.4/2.3 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Product color | Black |
| HD type | 8K Ultra HD |
| Number of displays supported | 1 |
| Maximum refresh rate | 120 Hz |
| High Dynamic Range (HDR) supported | Yes |
| Hub interfaces | HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Plug and Play | Yes |
| Certification | ROHS, FCC, CE EMI |
| Output voltage | 5 V |
| Output current | 1.5 A |
| Power consumption (max) | 7.5 W |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Width | 4.96" (126 mm) |
| Depth | 1.26" (32 mm) |
| Height | 1.38" (35 mm) |
| Weight | 3.14 oz (89 g) |
| Quantity per pack | 1 pc(s) |
| Package width | 2.76" (70 mm) |
| Package depth | 1.38" (35 mm) |
| Package height | 12.6" (320 mm) |
| Package weight | 4.8 oz (136 g) |
| Harmonized System (HS) code | 84719000 |
| Cable length | 11.8" (0.3 m) |
| Cable type | Round cable |
Product Details
W128561543
15 Items
New
Data sheet
- Product color
- Black
- Windows operating systems supported
- Yes
- Quantity per pack
- 1 pc(s)
- Host interface
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- HDMI ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- Ethernet LAN data rates
- 100,1000 Mbit/s
- Cable length
- 11.8" (0.3 m)
- Weight
- 3.14 oz (89 g)
- Harmonized System (HS) code
- 84719000
- Output voltage
- 5 V
- HD type
- 8K Ultra HD
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 2
- Plug and Play
- Yes
- Width
- 4.96" (126 mm)
- Height
- 1.38" (35 mm)
- Certification
- ROHS, FCC, CE EMI
- Depth
- 1.26" (32 mm)
- Output current
- 1.5 A
- Package weight
- 4.8 oz (136 g)
- Package width
- 2.76" (70 mm)
- Package depth
- 1.38" (35 mm)
- Package height
- 12.6" (320 mm)
- Mac operating systems supported
- Yes
- Cable type
- Round cable
- Number of displays supported
- 1
- HDCP
- Yes
- Power consumption (max)
- 7.5 W
- USB Power Delivery
- Yes
- USB Power Delivery up to
- 100 W
- USB Type-C DisplayPort Alternate Mode
- Yes
- Maximum refresh rate
- 120 Hz
- Hub interfaces
- USB Power Delivery revision
- 3.0
- High Dynamic Range (HDR) supported
- Yes
- HDCP version
- 1.4/2.3
Specific References
- UPC
- 841615102594
- EAN13
- 8719214472344
- MPN
- CSV-1596
