CSV-1598 - W128561819

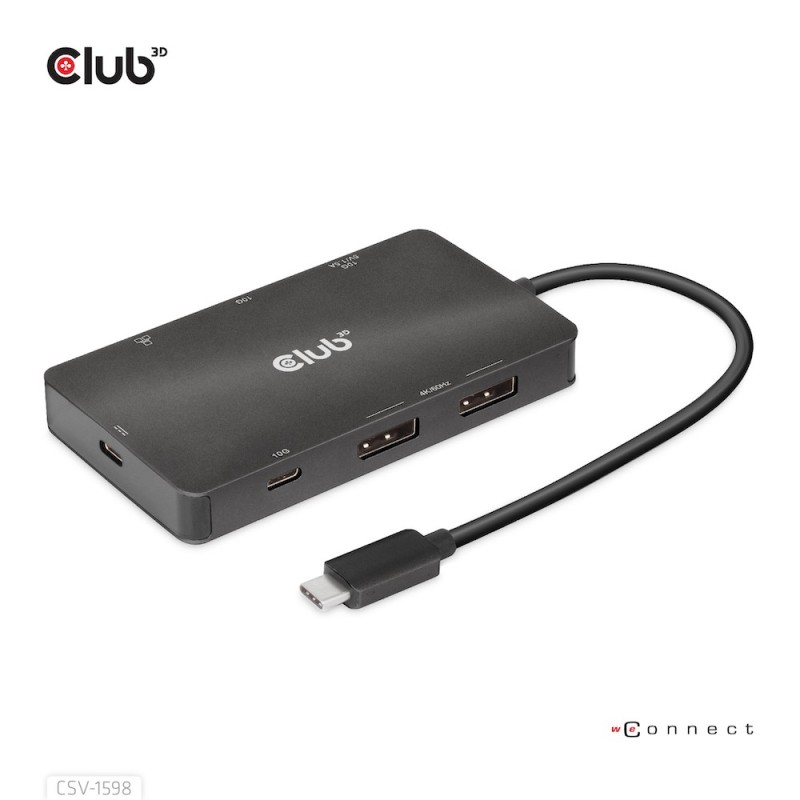

CLUB3D CSV-1598, USB 3.2 Gen 2 (3.1 Gen 2) Type-C, 100 W, 1.4/2.2, 10,100,1000 Mbit/s, Black, 4K Ultra HD
Description
The Club 3D CSV-1598 is a 7-in-1 USB Gen2 Type-C to Dual Display Portable Dock with DP™1.4 Alt mode which provides most advanced, efficient solution to extend a single USB Type-C port to be multiple ports. It integrates video, data and power ports that allows to connect 2 DisplayPort™ 4k60Hz displays simultaneously for enjoying videos on big screen, connect multiple USB devices for data transmission , connect Ethernet source for getting PC to super high speed network. Besides, it has PD charging port which supports max 100W PD charging to support the function of the adapter and charge for the host simultaneously.It can work on all DP™ Alt mode supported USB Type-C host.
CLUB3D CSV-1598. Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W, HDCP version: 1.4/2.2. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product color: Black, HD type: 4K Ultra HD, Maximum refresh rate: 60 Hz. Output voltage: 5 V, Output current: 1.5 A, Power consumption (max): 7.5 W. Width: 4.13" (105 mm), Depth: 2.32" (59 mm), Height: 0.551" (14 mm)
CLUB3D CSV-1598. Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W, HDCP version: 1.4/2.2. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product color: Black, HD type: 4K Ultra HD, Maximum refresh rate: 60 Hz. Output voltage: 5 V, Output current: 1.5 A, Power consumption (max): 7.5 W. Width: 4.13" (105 mm), Depth: 2.32" (59 mm), Height: 0.551" (14 mm)
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| DisplayPorts quantity | 2 |
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Product color | Black |
| HD type | 4K Ultra HD |
| Number of displays supported | 2 |
| Maximum refresh rate | 60 Hz |
| High Dynamic Range (HDR) supported | Yes |
| Hub interfaces | DisplayPort, RJ-45, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Plug and Play | Yes |
| Certification | ROHS, FCC, CE EMI |
| Output voltage | 5 V |
| Output current | 1.5 A |
| Power consumption (max) | 7.5 W |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Width | 4.13" (105 mm) |
| Depth | 2.32" (59 mm) |
| Height | 0.551" (14 mm) |
| Weight | 3.6 oz (102 g) |
| Quantity per pack | 1 pc(s) |
| Package width | 3.15" (80 mm) |
| Package depth | 1.26" (32 mm) |
| Package height | 9.84" (250 mm) |
| Package weight | 5.5 oz (156 g) |
| Cable length | 6.69" (0.17 m) |
| Cable type | Round cable |
Product Details
W128561819
6 Items
New
Data sheet
- Product color
- Black
- Windows operating systems supported
- Yes
- Quantity per pack
- 1 pc(s)
- Host interface
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C
- DisplayPorts quantity
- 2
- Ethernet LAN (RJ-45) ports
- 1
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Cable length
- 6.69" (0.17 m)
- Weight
- 3.6 oz (102 g)
- Output voltage
- 5 V
- HD type
- 4K Ultra HD
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 2
- Plug and Play
- Yes
- Width
- 4.13" (105 mm)
- Height
- 0.551" (14 mm)
- Certification
- ROHS, FCC, CE EMI
- Depth
- 2.32" (59 mm)
- Output current
- 1.5 A
- Package weight
- 156 g
- Package width
- 3.15" (80 mm)
- Package depth
- 1.26" (32 mm)
- Package height
- 9.84" (250 mm)
- Mac operating systems supported
- Yes
- Cable type
- Round cable
- Number of displays supported
- 2
- HDCP
- Yes
- Power consumption (max)
- 7.5 W
- USB Power Delivery
- Yes
- USB Power Delivery up to
- 100 W
- USB Type-C DisplayPort Alternate Mode
- Yes
- Maximum refresh rate
- 60 Hz
- Hub interfaces
- DisplayPort, RJ-45, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C
- USB Power Delivery revision
- 3.0
- High Dynamic Range (HDR) supported
- Yes
- HDCP version
- 1.4/2.2
Specific References
- UPC
- 841615102761
- EAN13
- 8719214472528
- MPN
- CSV-1598
