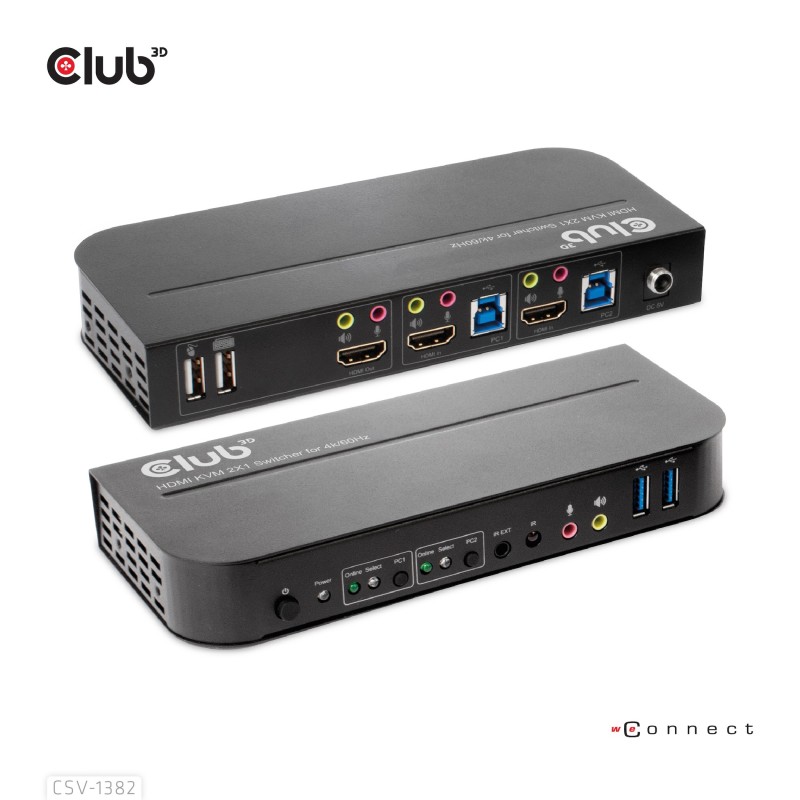

CSV-1382 - W128561284

Data sheet

Product color

Black

Windows operating systems supported

Yes

Package type

Box

HDMI ports quantity

3

Headphone outputs

4

Weight

12.9 oz (365 g)

Harmonized System (HS) code

84719000

Input voltage

5 V

HD type

4K Ultra HD

Maximum resolution

4096 x 2160 pixels

Plug and Play

Yes

Width

7.01" (178 mm)

Height

1.02" (26 mm)

Depth

2.95" (75 mm)

Package weight

27.6 oz (783 g)

Package width

9.06" (230 mm)

Package depth

2.56" (65 mm)

Package height

8.27" (210 mm)

Power source

DC

Mac operating systems supported

Yes

Linux operating systems supported

Yes

Built-in display

No

LED indicators

Yes

DC-in jack

Yes

Operating temperature (T-T)

0 - 45 °C

Storage temperature (T-T)

-10 - 80 °C

Operating relative humidity (H-H)

10 - 85%

Storage relative humidity (H-H)

5 - 90%

AC adapter included

Yes

Cables included

USB Type-A to USB Type-B

Housing material

Metal

Handheld remote control

Yes

Power consumption (typical)

12 W

HDCP

Yes

Keyboard port type

USB

Mouse port type

USB

Video port type

HDMI

Number of microphone inputs

4

Quick installation guide

Yes

High Dynamic Range (HDR) supported

Yes

HDCP version

1.4/2.2

External power adapter

Yes

Rack mounting

No

Number of computers controlled

2

Audio connections

Yes

Video bandwidth

60 Hz

Console ports

3.5mm headphone, 3.5mm mic, HDMI, USB B

USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity

2

Data transfer rate (max)

18 Gbit/s

Specific References

UPC

841615102464

EAN13

8719214472245

MPN

CSV-1382
