UNIDOCKU33 - UNIDOCKU33

External SSD/HDD Docking Station | USB 3.2 Gen 1 (5 Gbps) to SATA III and IDE

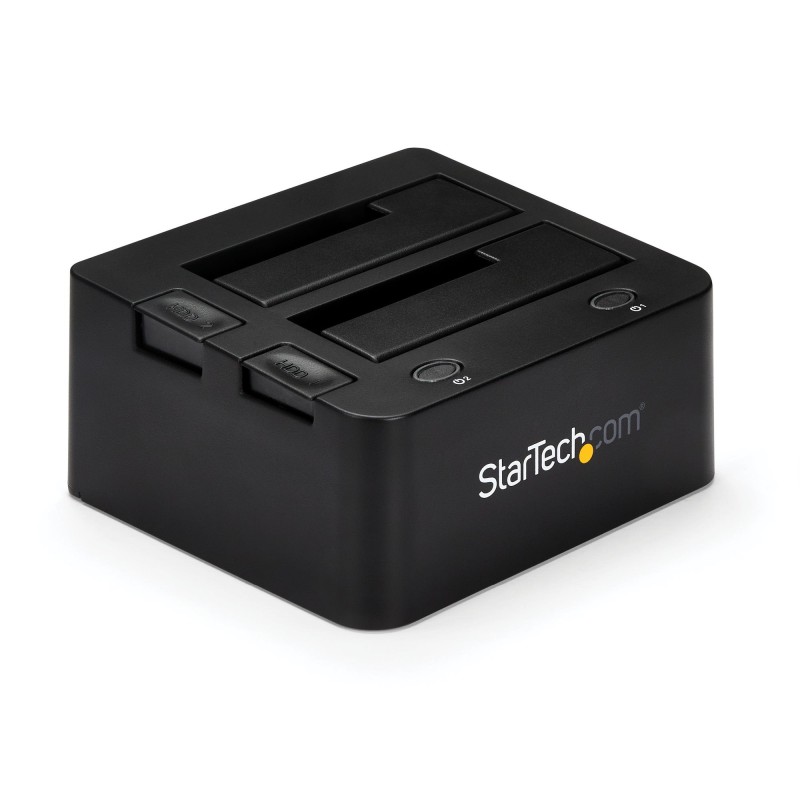

The UNIDOCKU33 USB 3.0 Universal HDD / SSD Dock enables you to instantly access your 2.5 or 3.5in IDE and SATA hard drives through two top loading drive slots, saving you the hassle of mounting the drives into a computer or external enclosure or tray.

Enhanced with UASP (USB Attached SCSI Protocol), this hard drive docking station lets you get the most out of the fastest drive technologies such as SATA III (6 Gbps), solid state drives (SSD) and hybrid, drives with performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller. See our UASP testing results below for further details.

The slot-loading design holds the SATA and IDE drives upright inside the docks, neatly keeping them off the desk, for convenience and a clutter-free setup. For SATA drives, the HDD can be inserted and connected directly through the designated dock slot, while the IDE drive slot is conveniently positioned near the rear panel 40-pin data and LP4 power connections, making it easy to connect to the dock using the included IDE data and power cables.

A single USB 3.0 connection to your host computer, enables access to both the IDE & SATA hard drives simultaneously - a convenient solution for migrating data from an IDE drive to a SATA drive or vice versa. The dock can also be used to greatly increase the storage and backup capabilities of your computer system with support for high capacity drives (tested with up to 6TB 3.5" and 2TB 2.5" drives).

The UNIDOCKU33 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Improved Performance with UASP

UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

At the same peak in testing UASP also shows an 80% reduction in required processor resources.

Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.

The StarTech.com Advantage


StarTech.com UNIDOCKU33. Storage media type: HDD, SSD, Storage drive interface: Parallel ATA (IDE), Serial ATA, Serial ATA II, Serial ATA III, Storage drive sizes supported: 2.5,3.5". Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B. Product color: Black, Material: Plastic, Maximum data transfer rate: 5 Gbit/s. AC input voltage: 110-240 V, Input current: 1.3 A, Output voltage: 12 V. Width: 5.12" (130 mm), Depth: 5.79" (147 mm), Height: 2.76" (70 mm)

Storage media type	HDD, SSD
Storage drive interface	Parallel ATA (IDE), Serial ATA, Serial ATA II, Serial ATA III
Storage drive sizes supported	2.5,3.5"
Number of storage drives supported	2
Maximum storage capacity	6 TB
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	1
DC-in jack	Yes
Product color	Black
Material	Plastic
Maximum data transfer rate	5 Gbit/s
Hot-swap	Yes
Plug and Play	Yes
RAID support	No
LED indicators	Activity, Power
UASP support	Yes
Certification	CE, FCC
Built-in fan	No
AC input voltage	110-240 V
Input current	1.3 A
Output voltage	12 V
Output current	3 A
Power plug type	Type M
Width	5.12" (130 mm)
Depth	5.79" (147 mm)
Height	2.76" (70 mm)
Weight	17.6 oz (500 g)
Package width	4.84" (123 mm)
Package depth	7.36" (187 mm)
Package height	8.43" (214 mm)
Package weight	2.2 lbs (1 kg)
AC adapter included	Yes
Cables included	USB
Manual	Yes
Operating temperature (T-T)	5 - 80 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	8 - 90%
Chipset	JMicron - JMS561U, JMD330
Mean time between failures (MTBF)	30000 h
Compliance certificates	RoHS
Harmonized System (HS) code	84733080
Master (outer) case width	8.27" (210 mm)
Master (outer) case length	24.6" (625 mm)
Master (outer) case height	17.7" (450 mm)
Quantity per master (outer) case	10 pc(s)
