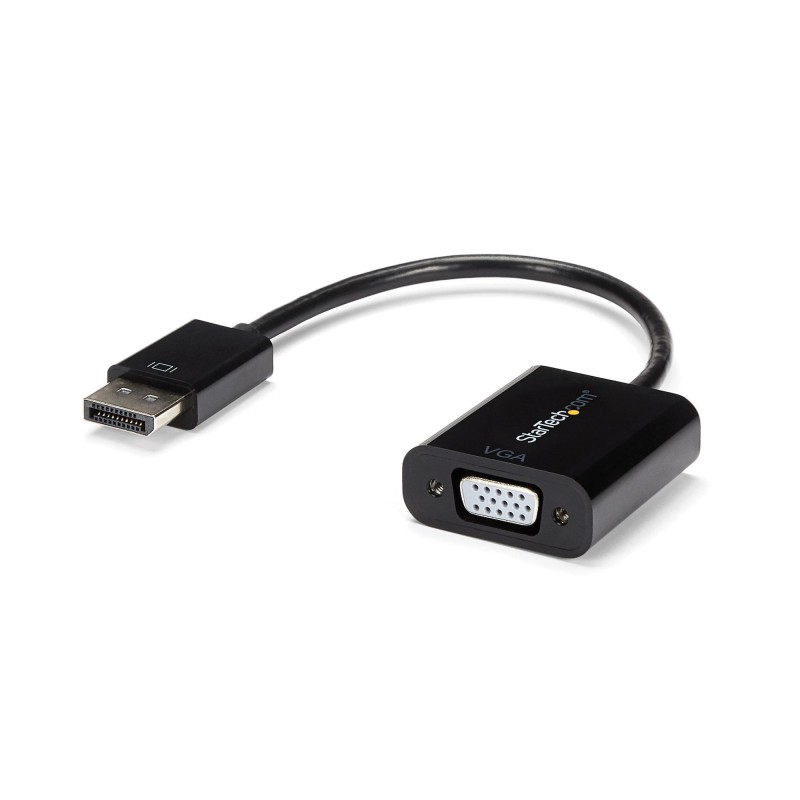

DP2VGA3 - DP2VGA3

DisplayPort 1.2 | Multi-Monitor Solution | Plug & Play Connectivity

This DisplayPort to VGA adapter lets you connect your DisplayPort equipped laptop or desktop computer to a VGA monitor or projector, eliminating the expense of upgrading to a DP display.

Crystal-Clear Picture Quality

With support for video resolutions up to 1920x1200 or 1080p, you’ll be surprised at the picture quality the adapter provides, even when connected to an older VGA monitor, projector or television. The adapter harnesses the video capabilities built into your DisplayPort connection to deliver every detail in stunning high-definition.

Works with Your Legacy VGA Displays & Projectors

This DisplayPort video adapter makes your DP computer fully compatible with legacy VGA monitors or projectors in your home or around the office. You can use the converter to either connect to an existing VGA display or add a secondary monitor to your workstation, helping to boost your productivity.

Designed for Maximum Portability

This DisplayPort to VGA dongle maximizes portability with a compact, lightweight design, making it the perfect travel accessory to carry with your DisplayPort devices. The ultra-portable design makes this adapter perfect for BYOD (Bring Your Own Device) applications at the office, delivering HD video presentations on-the-go or even staying connected at home.

For added convenience, this DP to VGA converter supports plug-and-play connectivity and requires no additional software or drivers for a hassle-free setup.

DP2VGA3 is backed by a 3-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage


StarTech.com DP2VGA3. Cable length: 3.94" (0.1 m), Connector 1: DisplayPort, Connector 2: VGA (D-Sub). Compliance certificates: CE, RoHS. Weight: 1.13 oz (32 g), Width: 1.46" (37 mm), Depth: 9.06" (230 mm). Package width: 7.87" (200 mm), Package depth: 8.66" (220 mm), Package height: 0.709" (18 mm). Master (outer) case width: 13" (330 mm), Master (outer) case length: 19.8" (502 mm), Master (outer) case height: 8.27" (210 mm)

Cable length	3.94" (0.1 m)
Connector 1	DisplayPort
Connector 2	VGA (D-Sub)
Connector 1 gender	Male
Connector 2 gender	Female
Connector 1 form factor	Straight
Connector 2 form factor	Straight
DisplayPort version	1.2
Maximum resolution	2048 x 1152 pixels
Supported graphics resolutions	1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1152
Supported video modes	720p, 1080p
Product color	Black
Chipset	Analogic ANX9833
Plug and Play	Yes
Converter type	Active video converter
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	10 - 85%
Compliance certificates	CE, RoHS
Weight	1.13 oz (32 g)
Width	1.46" (37 mm)
Depth	9.06" (230 mm)
Height	0.551" (14 mm)
Package width	7.87" (200 mm)
Package depth	8.66" (220 mm)
Package height	0.709" (18 mm)
Package weight	1.45 oz (41 g)
Harmonized System (HS) code	84733080
Master (outer) case width	13" (330 mm)
Master (outer) case length	19.8" (502 mm)
Master (outer) case height	8.27" (210 mm)
Quantity per master (outer) case	150 pc(s)
