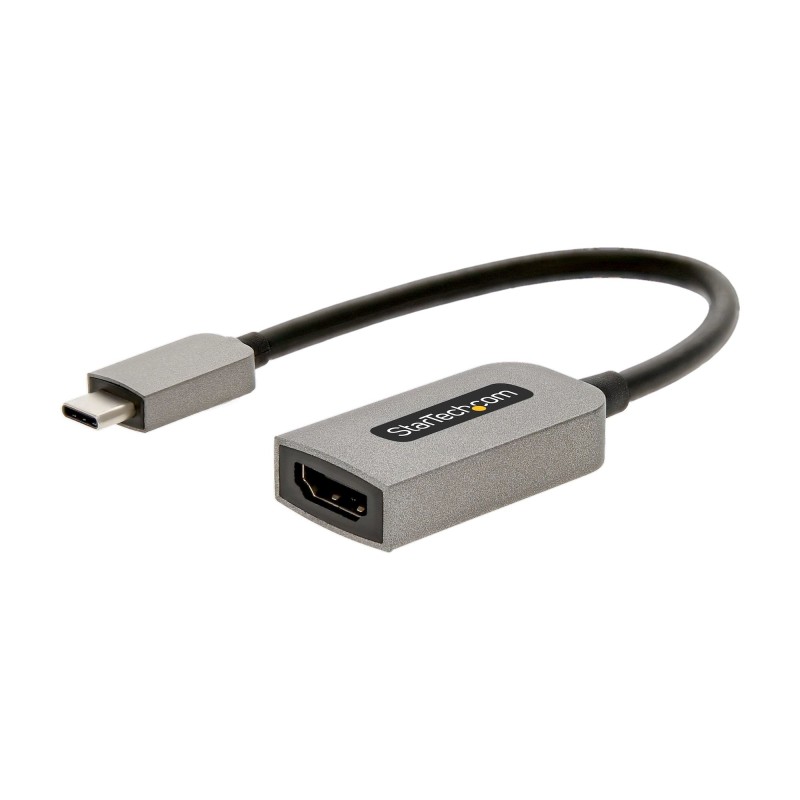

USBC-HDMI-CDP2HD4K60 - W128266763

Compact USB-C to 4K 60Hz HDMI dongle with HDR10 support

This adapter is a practical solution for ultra-slim USB Type-C laptops and tablets that don't include HDMI ports, an increasingly common challenge in today's mobile work environments.

4K 60Hz with HDR

The USB-C video adapter is fully compatible with your HDMI 2.0b equipment, supporting resolutions up to 4K 60Hz (3840 X 2160) and bandwidths up to 18Gbps. It delivers 4:4:4 chroma subsampling for accurate color reproduction and sharp image fidelity. Backward compatibility ensures smooth integration with earlier HDMI versions.

Enjoy enhanced contrast, brightness, and color accuracy thanks to High Dynamic Range (HDR) support, enabling more vivid and true-to-life visuals in digital signage, video conferencing, or high-resolution presentations.

Built for Business Durability

Designed for daily use, this compact lightweight adapter features a metal inner housing for EMI shielding on the USB-C connector, a high-impact plastic shell for durability, and a heavy-duty cable with molded strain relief for long-term reliability.

Notes:

• To achieve HDR, your USB-C port must support DisplayPort 1.4 and your display must support HDMI 2.0b.
• NVIDIA graphics adapters may not support 4:4:4 chroma subsampling.

StarTech.com USBC-HDMI-CDP2HD4K60. USB connector type: USB Type-C, USB connector gender: Male, USB connector form factor: Straight. Product color: Gray. Depth: 1.73" (44 mm), Height: 0.413" (10.5 mm), Weight: 0.564 oz (16 g). Package width: 4.92" (125 mm), Package depth: 8.86" (225 mm), Package height: 0.591" (15 mm). Quantity per master (outer) case: 300 pc(s), Master (outer) case width: 12.6" (320 mm), Master (outer) case length: 19.7" (500 mm)

DVI output	No
HDMI output	Yes
DisplayPort output	No
Number of displays supported	1
USB connector type	USB Type-C
USB connector gender	Male
USB connector form factor	Straight
HDMI version	2.0b
HDCP	Yes
Maximum resolution	4096 x 2160 pixels
Refresh rate at maximum resolution	60 Hz
Supported graphics resolutions	3840 x 2160, 4096 x 2160
Audio output channels	2.0 channels
Chipset	ANX7517
Product color	Gray
Depth	1.73" (44 mm)
Height	0.413" (10.5 mm)
Weight	0.564 oz (16 g)
USB cable length	5.12" (0.13 m)
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	25 - 60%
Package width	4.92" (125 mm)
Package depth	8.86" (225 mm)
Package height	0.591" (15 mm)
Package weight	0.776 oz (22 g)
Compliance certificates	CE, RoHS
Quantity per master (outer) case	300 pc(s)
Master (outer) case width	12.6" (320 mm)
Master (outer) case length	19.7" (500 mm)
Master (outer) case height	8.27" (210 mm)
Harmonized System (HS) code	84733020
