PEX2S953LP - W128255152

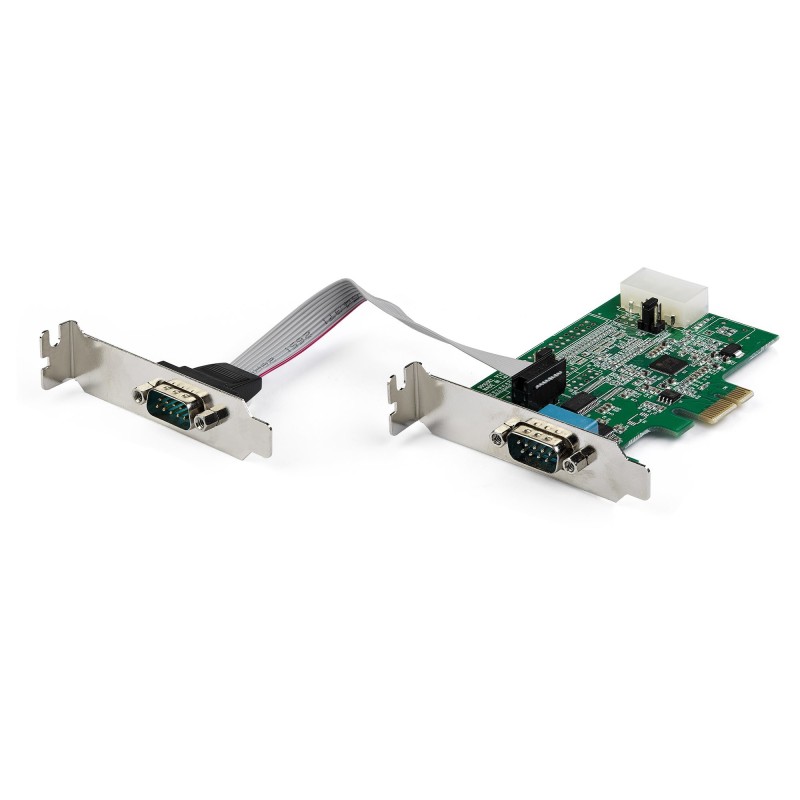

StarTech.com PEX2S953LP, Mini PCI Express, Serial, PCIe 1.1, RS-232, 222366 h, CE, FCC
Description
PCI Express to Serial Adapter | 921.4Kbps | Windows® and Linux® Compatible
This RS232 Serial Adapter Card lets you add two RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.4Kbps.
Maximum Compatibility
With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.
Experience Optimal Technology
This PCIe to serial adapter supports the following features:
• Compatible with industry standard 16950 UART
• Supports max baud rate of up-to 921.4Kbps
• Provides 5/12V power output on Pin 9 when external power is connected
• 256-byte depth FIFO per transmitter and receiver
• Supports 9, 8, 7, 6, 5 data bits
• Asix AX99100 chipset
• PCI Express 1.1 compliant
PEX2S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
StarTech.com PEX2S953LP. Host interface: Mini PCI Express, Output interface: Serial, Expansion card standard: PCIe 1.1. Mean time between failures (MTBF): 222366 h, Certification: CE, FCC. Chipset: Asix AX99100, Baud rate: 921.6 Kbit/s, FIFO (First In, First Out): 256 B. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows.... Width: 2.64" (67 mm), Depth: 3.86" (98 mm), Height: 0.709" (18 mm)
This RS232 Serial Adapter Card lets you add two RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.4Kbps.
Maximum Compatibility
With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.
Experience Optimal Technology
This PCIe to serial adapter supports the following features:
• Compatible with industry standard 16950 UART
• Supports max baud rate of up-to 921.4Kbps
• Provides 5/12V power output on Pin 9 when external power is connected
• 256-byte depth FIFO per transmitter and receiver
• Supports 9, 8, 7, 6, 5 data bits
• Asix AX99100 chipset
• PCI Express 1.1 compliant
PEX2S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
StarTech.com PEX2S953LP. Host interface: Mini PCI Express, Output interface: Serial, Expansion card standard: PCIe 1.1. Mean time between failures (MTBF): 222366 h, Certification: CE, FCC. Chipset: Asix AX99100, Baud rate: 921.6 Kbit/s, FIFO (First In, First Out): 256 B. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows.... Width: 2.64" (67 mm), Depth: 3.86" (98 mm), Height: 0.709" (18 mm)
| Host interface | Mini PCI Express |
| Output interface | Serial |
| Expansion card standard | PCIe 1.1 |
| Serial ports quantity | 2 |
| Serial interface type | RS-232 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Internal | Yes |
| Mean time between failures (MTBF) | 222366 h |
| Certification | CE, FCC |
| Chipset | Asix AX99100 |
| Baud rate | 921.6 Kbit/s |
| FIFO (First In, First Out) | 256 B |
| Data bits | 5, 6, 7, 8, 9 |
| Stop bits | 1, 1.5, 2 |
| Parity bit | Even, Mark, No, Odd, Space |
| Flow Control type | No, RTS/CTS, XON/XOFF |
| Operating temperature (T-T) | -10 - 80 °C |
| Storage temperature (T-T) | -20 - 100 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
| Compliance certificates | RoHS |
| Width | 2.64" (67 mm) |
| Depth | 3.86" (98 mm) |
| Height | 0.709" (18 mm) |
| Weight | 1.96 oz (55.6 g) |
| Quantity | 1 |
| Mounting brackets included | Yes |
| Manual | Yes |
| Package width | 5.59" (142 mm) |
| Package depth | 6.77" (172 mm) |
| Package height | 1.26" (32 mm) |
| Package weight | 5.16 oz (146.4 g) |
| Harmonized System (HS) code | 84733020 |
| Quantity per master (outer) case | 75 pc(s) |
| Master (outer) case width | 14" (355 mm) |
| Master (outer) case length | 27.2" (690 mm) |
| Master (outer) case height | 12.5" (317 mm) |
Product Details
W128255152
48 Items
New
Data sheet
- Quantity per pack
- 1
- Host interface
- Mini PCI Express
- Weight
- 1.96 oz (55.6 g)
- Harmonized System (HS) code
- 84733020
- Internal
- Yes
- Serial ports quantity
- 2
- Width
- 2.64" (67 mm)
- Height
- 0.709" (18 mm)
- Certification
- CE, FCC
- Depth
- 3.86" (98 mm)
- Package weight
- 5.16 oz (146.4 g)
- Master (outer) case width
- 14" (355 mm)
- Master (outer) case length
- 27.2" (690 mm)
- Master (outer) case height
- 12.5" (317 mm)
- Quantity per master (outer) case
- 75 pc(s)
- Package width
- 5.59" (142 mm)
- Package depth
- 6.77" (172 mm)
- Package height
- 1.26" (32 mm)
- Linux operating systems supported
- Yes
- Operating temperature (T-T)
- -10 - 80 °C
- Storage temperature (T-T)
- -20 - 100 °C
- Operating relative humidity (H-H)
- 5 - 85%
- Peripheral (Molex) power connectors (4-pin)
- 1
- Output interface
- Serial
- Manual
- Yes
- Compliance certificates
- RoHS
- Mean time between failures (MTBF)
- 222366 h
- Mounting brackets included
- Yes
- Expansion card standard
- PCIe 1.1
- Chipset
- Asix AX99100
- Serial interface type
- RS-232
- Server operating systems supported
- Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
- Baud rate
- 921.6 Kbit/s
- Data bits
- 5, 6, 7, 8, 9
- Flow Control type
- No, RTS/CTS, XON/XOFF
- Parity bit
- Even, Mark, No, Odd, Space
- Stop bits
- 1, 1.5, 2
- FIFO (First In, First Out)
- 256 B
Specific References
- UPC
- 065030881166
- EAN13
- 0065030881166
- MPN
- PEX2S953LP
