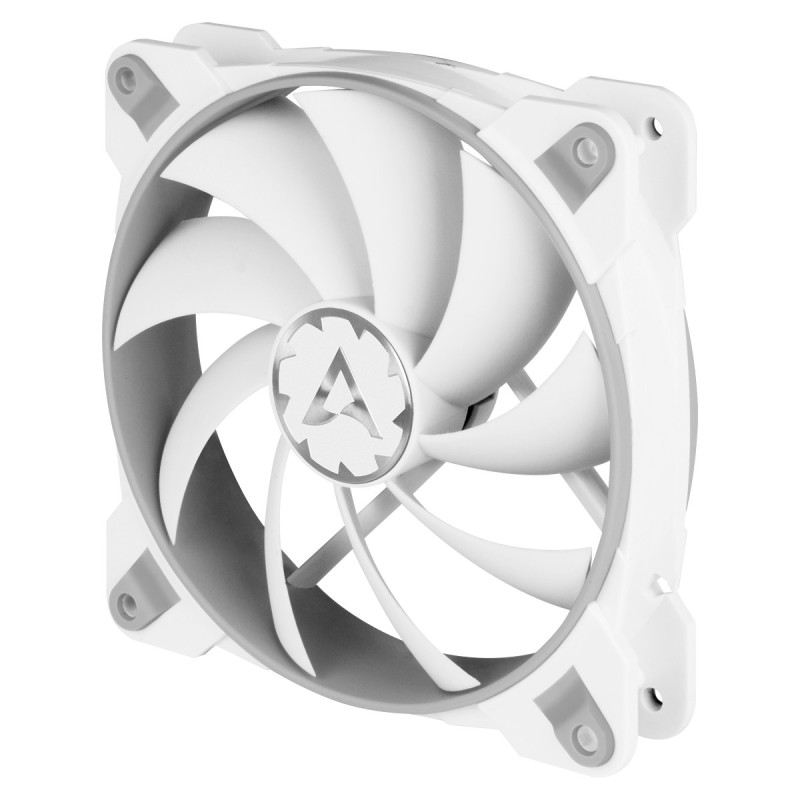

BioniX F120 Gaming Fan with PWM PST The BioniX F120 has the best airflow to noise ratio. The extreme silent 3-phase motor guarantees long gaming sessions without annoying noise. With a wide range of 200 to 1 800 RPM, the BioniX F120 is controllable with PWM to regulate the fan speed as needed. The optimised fan blade
design ensures high pressure and high ventilation for your gaming case to get a higher airflow at lower noise generation. The 3-phase motor with low coil temperature quadruples the life span and we extend the warranty to 10 years.
ARCTIC BioniX F120. Type: Fan, Fan diameter: 4.72" (12 cm), Rotational speed (min): 200 RPM, Rotational speed (max): 1800 RPM, Noise level: 0.5 sone, Airflow: 117 m³/h, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 4.72" (120 mm), Depth: 1.06" (27 mm), Height: 4.72" (120 mm). Product color: Gray, White
Suitable location Computer case Type Fan Fan diameter 4.72" (12 cm) Supported processor sockets Not supported Compatible processor series Not supported Rotational speed (min) 200 RPM Rotational speed (max) 1800 RPM Noise level 0.5 sone Maximum airflow 69 cfm Airflow 117 m³/h Pulse-width modulation (PWM) support Yes Bearing type Fluid Dynamic Bearing (FDB) Product color Gray, White Number of fans 1 fan(s) Number of fan blades 9 Fan connector 4-pin Voltage 12 V Rated current 0.2 A Width 4.72" (120 mm) Depth 1.06" (27 mm) Height 4.72" (120 mm) Weight 4.55 oz (129 g) Package width 5.16" (131 mm) Package depth 1.38" (35 mm) Package height 4.96" (126 mm) Package weight 5.89 oz (167 g) Package type Box Screws included Yes Number of screws 4 Mounting hole pattern (WxD) 4.13 x 4.13" (105 x 105 mm) Country of origin China Harmonized System (HS) code 84733080
Product Details
Reference
W128261430
Availability date:
2026-02-02
Condition
New
Data sheet
Type
Fan
Product color
Gray, White
Package type
Box
Weight
4.55 oz (129 g)
Harmonized System (HS) code
84733080
Compatible processor series
Not supported
Suitable location
Computer case
Fan diameter
4.72" (12 cm)
Width
4.72" (120 mm)
Height
4.72" (120 mm)
Country of origin
China
Depth
1.06" (27 mm)
Package weight
5.89 oz (167 g)
Package width
5.16" (131 mm)
Package depth
1.38" (35 mm)
Package height
4.96" (126 mm)
Number of fans
1 fan(s)
Supported processor sockets
Not supported
Screws included
Yes
Number of screws
4
Pulse-width modulation (PWM) support
Yes
Maximum airflow
69 cfm
Rotational speed (max)
1800 RPM
Number of fan blades
9
Fan connector
4-pin
Voltage
12 V
Airflow
117 m³/h
Rotational speed (min)
200 RPM
Bearing type
Rated current
0.2 A
Mounting hole pattern (WxD)
4.13 x 4.13" (105 x 105 mm)
Noise level
0.5 sone
Specific References
EAN13
4895213702294
MPN
ACFAN00164A
