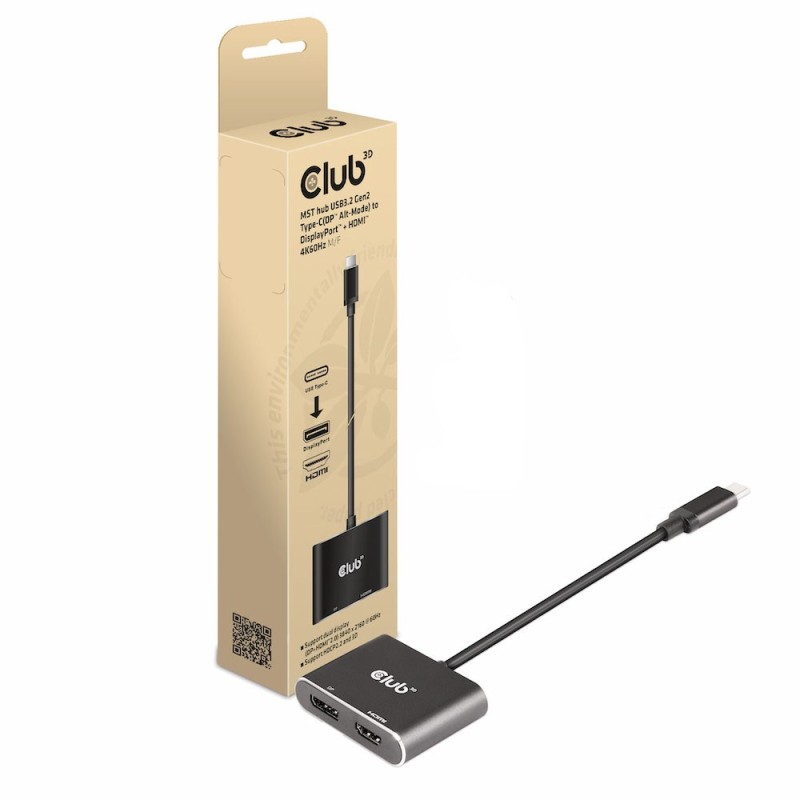

CSV-1552 - W128560520

The CSV-1552 is a MST hub USB3.2 Gen2 Type-C(DP™1.4 Alt-Mode) to DisplayPort™ + HDMI™ 4K60Hz M/F . This USB-C MST hub is designed to cater for your most versatile connectivity demands, such as Mobile Phone, Tablet, laptop, etc. with a USB-C output which supports DP™ Alt-Mode.
Give your Phone, Ultrabook more displays. Phones, Ultrabooks and notebooks are increasingly becoming more powerful and smaller in the physical form factor. With a single USB3.2 Gen2 port available you can now drive one-Displayport™ screen simultaneously with a HDMI™2.0 screen at 4K60Hz or One DP™ display at 8K30Hz in MST mode(Windows). All it needs is a free USB3.2 Gen2 port with DP™ Alt-Mode on your Phone, Laptop or Ultrabook to connect to the MST hub and will provide you with unparalleled connection options for Dual 4K60Hz displays. The setup is easy and simple to do, provided your system supports this function.

CLUB3D CSV-1552. Supported graphics resolutions: 3840 x 2160, Supported video modes: 2160p. Product color: Black. Windows operating systems supported: Windows 10. Width: 2.44" (62 mm), Depth: 2.32" (59 mm), Height: 0.598" (15.2 mm). Package type: Box, Package width: 2.87" (73 mm), Package depth: 1.38" (35 mm)

DisplayPorts quantity	1
HDMI ports quantity	1
HDCP	Yes
HDCP version	2.2
Supported graphics resolutions	3840 x 2160
Supported video modes	2160p
Product color	Black
Windows operating systems supported	Windows 10
Mac operating systems supported	Yes
Width	2.44" (62 mm)
Depth	2.32" (59 mm)
Height	0.598" (15.2 mm)
Weight	1.69 oz (48 g)
Package type	Box
Package width	2.87" (73 mm)
Package depth	1.38" (35 mm)
Package height	9.84" (250 mm)
Package weight	3.07 oz (87 g)
Quantity per pack	1 pc(s)
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Harmonized System (HS) code	84733080
