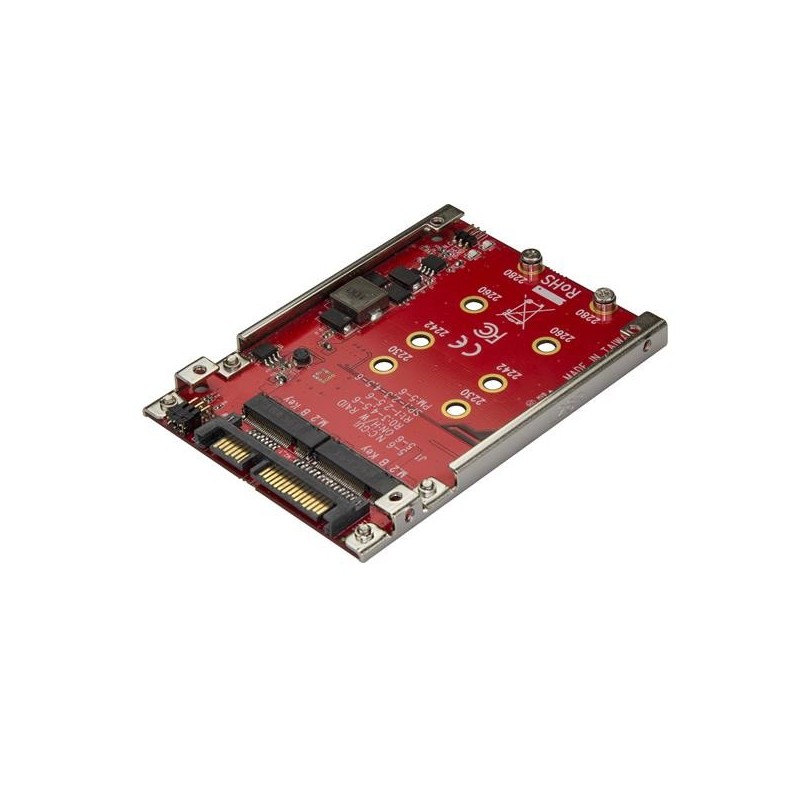

S322M225R - S322M225R

Create high-performance storage with configurable RAID, by installing two M.2 SATA SSDs into a 2.5” SATA interface

Boost your system performance by enhancing the capacity, speed and security of your data storage. This two-drive M.2 to SATA adapter lets you install two M.2 SATA drives instead of a SATA platter drive, in a single 2.5” drive bay, and increase your storage options by configuring a powerful RAID array.

Build a RAID array to enhance system performance

The dual M.2 to SATA adapter supports multiple RAID modes, including RAID 0, 1, or spanning, helping you to achieve greater SSD capacity or data redundancy, depending on your selected RAID mode. The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independently of one another.

Maximize file transfer speeds

The M.2 SATA SSD adapter lets you utilize the full potential of your SATA III controller. Using M.2 SATA SSDs in place of a platter drive reduces your data transfer bottlenecks, giving you file transfer speeds of up to 6Gbps.

The M.2 NGFF SATA RAID adapter also provides TRIM support to enhance the stability and performance of your M.2 NGFF SSDs.

Easy installation

This open-frame adapter is easy to install as it comes with all the necessary installation hardware and doesn’t require any extra software or drivers, to get you up and running quickly.

The S322M225R is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Install two M.2 SSD drives into a single 2.5” drive bay
- Multiple RAID modes supported: RAID 0, 1, spanning, or JBOD
- Open-frame steel mounting bracket with 2.5” SATA form factor housing

StarTech.com S322M225R. Host interface: SATA, Output interface: M.2. Product color: Red, Certification: CE, FCC, REACH, TAA. Chipset: ASMedia - ASM1092R, Data transfer rate (max): 6 Gbit/s, RAID levels: 0, 1, BIG, JBOD. Width: 2.76" (70 mm), Depth: 3.94" (100 mm), Height: 0.276" (7 mm). Package width: 6.77" (172 mm), Package depth: 5.59" (142 mm), Package height: 1.18" (30 mm)

Host interface	SATA
Output interface	M.2
SATA revision	3.0
Number of M.2 (B) slots	2
Number of SSDs supported	2
Port multiplier	Yes
Internal	Yes
Product color	Red
Hot-swap	No
Easy to install	Yes
Certification	CE, FCC, REACH, TAA
Chipset	ASMedia - ASM1092R
Data transfer rate (max)	6 Gbit/s
S.M.A.R.T. support	Yes
TRIM support	Yes
RAID levels	0, 1, BIG, JBOD
Plug and Play	Yes
Operating temperature (T-T)	5 - 50 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	15 - 90%
Compliance certificates	RoHS
Width	2.76" (70 mm)
Depth	3.94" (100 mm)
Height	0.276" (7 mm)
Weight	1.45 oz (41 g)
Mounting brackets included	Yes
Screws included	Yes
Quick installation guide	Yes
Package width	6.77" (172 mm)
Package depth	5.59" (142 mm)
Package height	1.18" (30 mm)
Package weight	3.88 oz (110 g)
Harmonized System (HS) code	84733020
