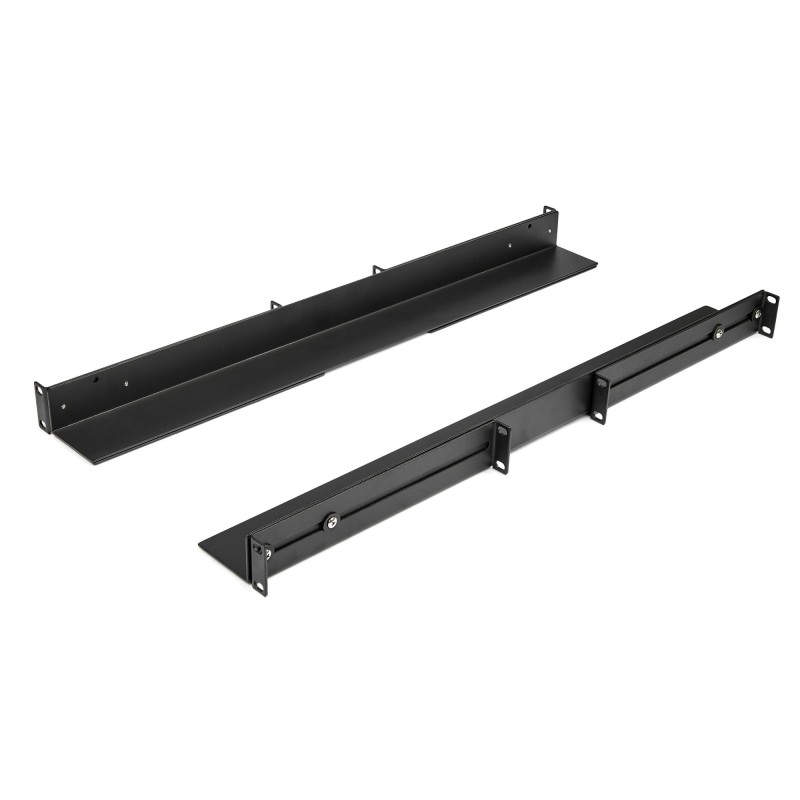

UNIRAILS1UB

Universal | EIA/ECA-310 Compliant | Supports up to 200lbs

These 1U server rack rails let you mount devices, such as servers or networking equipment, that did not come with rack rails into your 19” 4 post rack. The adjustable server rack rails are also a great solution for mounting OEM equipment such as Dell™, IBM®, HP® or Apple servers.

Universal design mounts to almost any 19" server rack

Adhering to the EIA/ECA-310 standard for 19 inch server rack equipment and accessories, these mounting rails are compatible with most 19 inch server racks. The depth is adjustable for a variety of rack sizes and configurations up to a maximum depth of 36 inches.

Maximum durability

To ensure your equipment is secure, these universal rack mount rails feature cold-rolled steel construction. The durable design can support a weight load of up to 200 lbs (90 kg).

The Choice of IT Pros Since 1985

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.

The UNIRAILS1UB is backed by a lifetime StarTech.com warranty with free technical support.

The StarTech.com Advantage


StarTech.com UNIRAILS1UB. Type: Rack rail, Product color: Black. Quantity per pack: 2 pc(s). Weight: 7.72 lbs (3.5 kg)

Type	Rack rail
Product color	Black
Maximum weight capacity	200 lbs (90.7 kg)
Compliance industry standards	EIA-310-D
Width	3.15" (80 mm)
Depth	24.7" (628 mm)
Height	1.77" (45 mm)
Mounting depth (min)	24" (61 cm)
Mounting depth (max)	36" (91.4 cm)
Weight	7.72 lbs (3.5 kg)
Quantity per pack	2 pc(s)
Package width	8.66" (220 mm)
Package depth	25.2" (640 mm)
Package height	3.54" (90 mm)
Package weight	8.82 lbs (4 kg)
Quick installation guide	Yes
Screws included	Yes
Number of screws	8
Nuts included	Yes
Number of nuts	8
Washers included	Yes
Number of washers included	8
Compliance certificates	CE, RoHS
Master (outer) case width	18.1" (460 mm)
Master (outer) case length	26" (660 mm)
Master (outer) case height	19.3" (490 mm)
Quantity per master (outer) case	10 pc(s)
Harmonized System (HS) code	85389099
