7350073736737

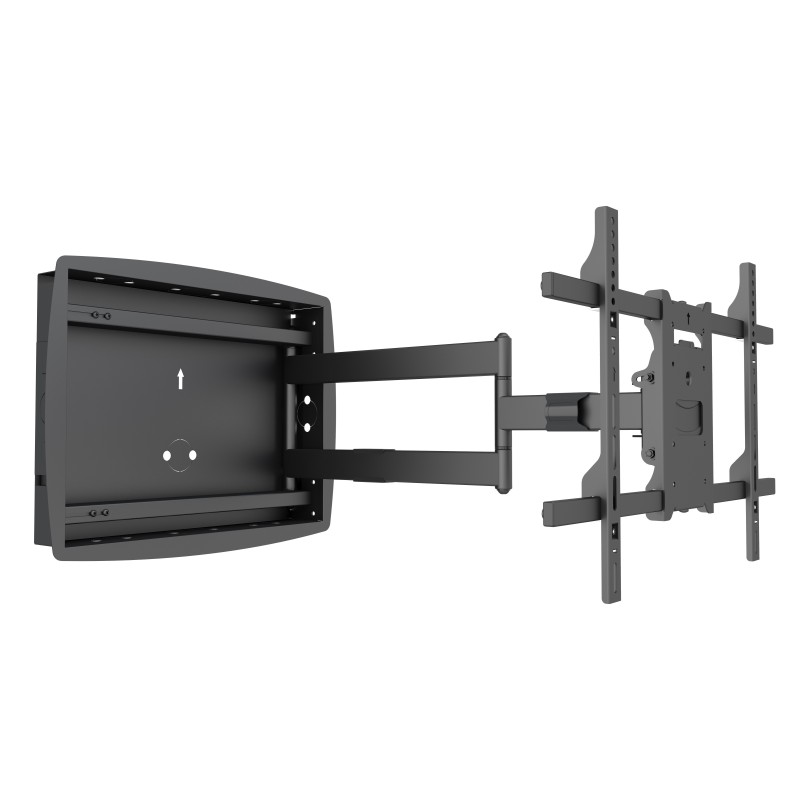

This M Recessed Full Motion Flexarm with will mount most flat-panel TV up to 45 kg. With its ingenious design it allows even the largest TVs to extend up to 75cm from the wall, retract, tilt, and swivel with ease. Using smart tilting technology we allow effortless viewing angle with a tool less manual adjustment.

The Multibrackets recessed Flexarm allows a flat-panel TV´s to rest flush against the wall, hiding mounting hardware for a “no profile” solution for the full-motion Flexarm. Easily installed by cutting a hole into sheetrock between wood studs (cc 60). The included template allows box to be leveled and secured tightly into place. All details made in a heavy gauge steel construction. The in wall box features knockouts for power cables and audio/video cables.

The M Recessed Full Motion Flexarm in-wall design is made to fit securely between cc 60 stud centers. When fully retracted, its arm assembly allows your TV to sit almost flush with the wall.

Constructed out of solid steel, the M Recessed Full Motion Flexarm  safely supports 32” - 80” TVs weighing up to 45kgs, while its adjustable mounting brackets accommodate VESA sizes between 100×100, 100x200, 200x100, 200x200, 300x300, 400x200, 400x300, 400x400, 600x300 and 600×400.

Use the M Recessed Full Motion Flexarm articulating arm to ensure you always have the perfect viewing angle. Extend it out 75cm to provide ample room to tilt and swivel your TV.

Because every installation is unique, the M Recessed Full Motion Flexarm is carefully packaged with all the lag bolts, washers and spacers that you may need.

Multibrackets 6737. Maximum weight capacity: 99.2 lbs (45 kg), Minimum screen size: 32", Maximum screen size: 80", Minimum VESA mount: 3.94 x 3.94" (100 x 100 mm), Maximum VESA mount: 23.6 x 15.7" (600 x 400 mm). Tilt angle range: -5 - 10°, Distance to the wall (min): 0" (0 mm), Distance to the wall (max): 29.8" (75.6 cm). Product color: Black

Number of displays supported	1
Maximum screen size	80"
Mounting type	Wall
Maximum weight capacity	99.2 lbs (45 kg)
Minimum VESA mount	3.94 x 3.94" (100 x 100 mm)
Maximum VESA mount	23.6 x 15.7" (600 x 400 mm)
Minimum screen size	32"
Panel mounting interface	100 x 100,100 x 200,200 x 100,200 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 300,600 x 400
Adjustable depth	Yes
Tilt adjustment	Yes
Tilt angle range	-5 - 10°
Swivel angle	180°
Turn angle	120°
Cable management	Yes
Distance to the wall (max)	29.8" (75.6 cm)
Distance to the wall (min)	0" (0 mm)
Product color	Black
Housing material	Steel
Metal packaging weight	0 oz (0 g)
Plastic packaging weight	2.12 oz (60 g)
Paper/cardboard packaging weight	28.2 oz (800 g)
Width	22.2" (565 mm)
Depth (min)	3.9" (9.9 cm)
Height	17.1" (435 mm)
Weight	20.6 lbs (9.34 kg)
Aluminium content weight	0 oz (0 g)
Steel content weight	20.6 lbs (9.34 kg)
Other metals content weight	0 oz (0 g)
Package width	17.9" (455 mm)
Package depth	29.3" (745 mm)
Package height	5.12" (130 mm)
Package weight	22.5 lbs (10.2 kg)
Package type	Box
Quantity per shipping (inner) case	1 pc(s)
