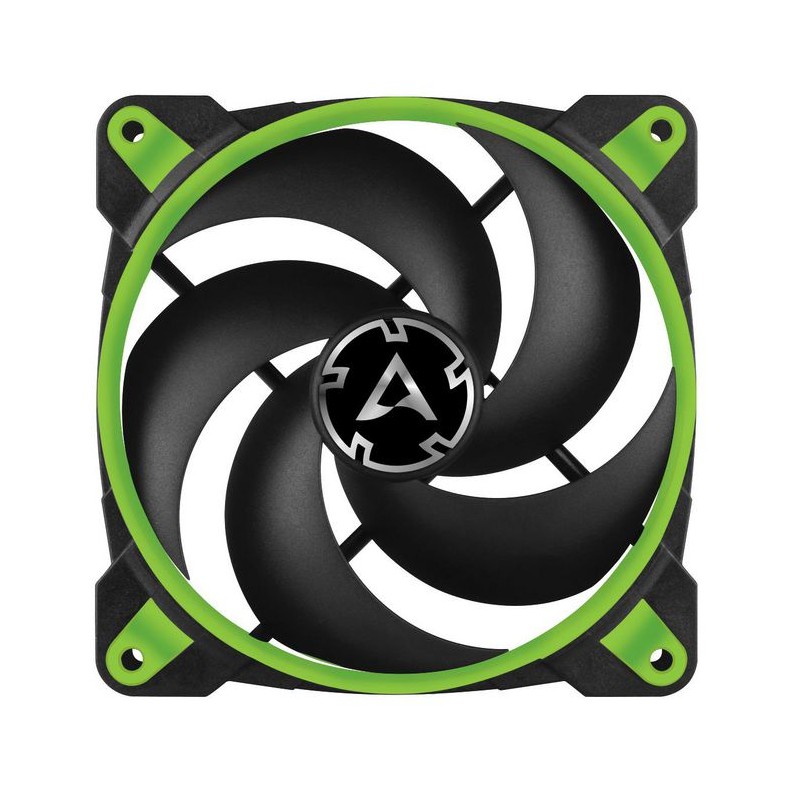

ACFAN00114A
120 mm, 200 - 2100 RPM, PWM, 67.56 CFM, 114.79 m3/h, 12 V DC, 2x 4-pin, 140 g, Green
Description
The BioniX P120 fan features completely redesigned fanblades and is optimised for high static pressure. Thus, the BioniX P120 is especially effective when used on heatsinks and with higher air resistance.
The wide RPM range from 200 to 2100 RPM can be regulated seamlessly and synchronously with other fans thanks to ARCTIC's PWM Sharing Technology (PST).
The newly developed motor with a low coil temperature significantly increases the life span of the fan. Therefore we have extended the warranty to 10 years.
The wide RPM range from 200 to 2100 RPM can be regulated seamlessly and synchronously with other fans thanks to ARCTIC's PWM Sharing Technology (PST).
The newly developed motor with a low coil temperature significantly increases the life span of the fan. Therefore we have extended the warranty to 10 years.
- Optimised for static pressure
- Ideal choice on heatsinks, radiators and (partly-) covered case vents
- Broad RPM range for highest performance and low noise level
- Push- or pull-configuration
- PWM Sharing Technology (PST) regulates fan speed synchronously
- Newly developed, very quiet motor
- Extended life span
- Available in multiple distinct colors
Specifications
Design
| Fan connector | 4-pin + 4-pin |
| Number of fan blades | 5 |
| Number of fans | 1 fan(s) |
| Product colour | Black/Green |
Other features
| Mounting hole pattern (W x D) | 105 x 105 mm |
Packaging content
| Number of screws | 4 |
| Package type | Box |
| Screws included | Yes |
Performance
| Airflow | 114.79 m³/h |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Compatible processor series | Not supported |
| Fan diameter | 12 cm |
| Maximum airflow | 67.56 cfm |
| Noise level | 0.45 sone |
| Pulse-width modulation (PWM) support | Yes |
| Rotational speed (max) | 2100 RPM |
| Rotational speed (min) | 200 RPM |
| Suitable location | Computer case |
| Supported processor sockets | Not supported |
| Type | Fan |
Power
| Power consumption (typical) | 1.56 W |
| Rated current | 0.13 A |
| Voltage | 12 V |
Technical details
| Compliance certificates | RoHS |
Vendor information
| Brand Name | Arctic |
| Warranty | 1 |
Weight & dimensions
| Cable length | 0.4 m |
Product Details
2026-04-06
New
Data sheet
- Bearing type
- Fluid Dynamic Bearing (FDB)
- Current rating
- 0.13 A
- Anzahl Fans
- 1 Lüfter
- Number of bolts
- 4
- Compliance certificates
- RoHS
- Geräuschpegel
- 0.45 Sone
- Stromverbrauch (typisch)
- 1.56 W
- Geeigneter Standort
- Computer case
- Kompatible Prozessorserien
- Not supported
- Lüfterdurchmesser
- 12 cm
- Unterstützte Prozessorsockel
- Not supported
- Schrauben enthalten
- Yes
- Pakettyp
- Box
- Stromspannung
- 12 V
- Kabellänge
- 0.4 m
- Typ
- Fan
- Brand Name
- Arctic
- Warranty
- 1
- Produktfarbe
- Black/Green
- Luftzug
- 114.79 m³/h
- Lüfteranschluss
- 4-pin + 4-pin
- Maximum Luftstrom
- 67.56 cfm
- Unterstützung für Pulsweitenmodulation (PWM)
- Yes
- Anzahl Lüfterblätter
- 5
- Drehzahl (max.)
- 2100 RPM
- Drehzahl (min)
- 200 RPM
- Befestigungslochbild (B x T)
- 105 x 105 mm
Specific References
- MPN
- ACFAN00114A
