7350105210990

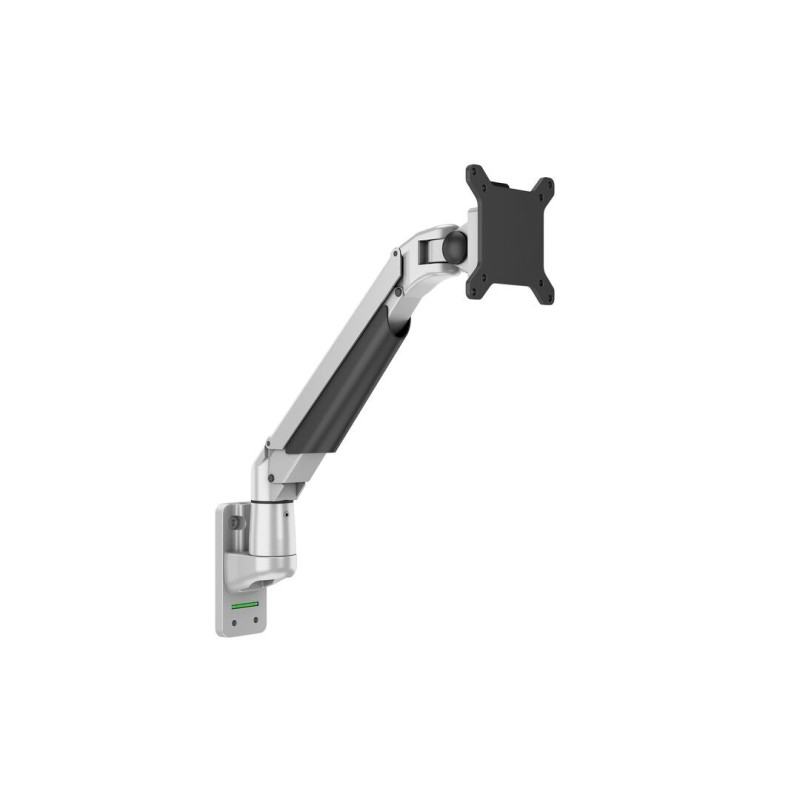

A double jointed gas suspended monitor arm, designed by Multibrackets to optimize your productivity and help reducing strain on neck, back and eyes.

The M VESA Gas Lift Arm is made out of a durable aluminum construction and uses a gas driven suspension technique. This makes the screen "float" and it can then be moved with near zero effort. Sleek and streamlined, the M VESA Gas Lift Arm frees up space and allows positioning of your display for greater productivity. The unique counterbalance gas technology provides smooth adjustment in any direction. Easy move the screen from landscape to portrait position or move the screen close to the desk, high up, matching almost any wanted working position imaginable.

Ultra flexible
Lift, swing or turn your display in any direction, and change it whenever you need. Vast adjustment possibilities up horizontal or vertical. Perfect for situations when a screen needs to be moved in and out of way after usage. Used in production facilities, service facilities, hospitals or medical rooms. Intelligent cable management clips on the underside of the arm route and hide wires

Floating position
Position the screen to relieve eye, neck and back strain. Your arm will always provides a fluid, light-touch adjustments for effortless monitor movement.

Use in Landscape or portrait position
With the built in rotation function one can simply choose landscape or portrait position of the display, providing a smooth, continuous vertical and horizontal movement of the display in all directions.
Ideally mounted in space-constrained spaces—folds to within just centimeters of wall in storage position.

The snap on head gives a fast assembly and disassembly of the LCD perfect for any IT department who wants to minimize downtime.

The M VESA Gas Lift Arm Basic holds to your standard workdesk (max 50mm), or assemble it using a workdesk thru hole technique.

Available in Silver, Black and White.

Supports VESA standards 75x75 and 100x100 and holds screens weighing from minimum 2kg and up to maximum 10kg. This interval is important to keep due to the gas driven piston that keeps your screen floating in the air.

Multibrackets 0990. Mounting: Screws, Maximum weight capacity: 22 lbs (10 kg), Minimum screen size: 15", Maximum screen size: 32", Minimum VESA mount: 2.95 x 2.95" (75 x 75 mm), Maximum VESA mount: 3.94 x 3.94" (100 x 100 mm). Height adjustment, Tilt angle range: -45 - 75°. Product color: Silver

Number of displays supported	1
Maximum screen size	32"
Mounting type	Wall
Maximum weight capacity	22 lbs (10 kg)
Minimum screen size	15"
Minimum VESA mount	2.95 x 2.95" (75 x 75 mm)
Maximum VESA mount	3.94 x 3.94" (100 x 100 mm)
Mounting	Screws
Panel mounting interface	75 x 75,100 x 100 mm
Height adjustment	Yes
Height adjustment type	Gas spring
Tilt adjustment	Yes
Tilt angle range	-45 - 75°
Angle of rotation	90°
Turn angle	180°
Cable management	Yes
Product color	Silver
Housing material	Aluminum
Orientation	Landscape/Portrait
Weight	5.29 lbs (2.4 kg)
Package width	7.68" (195 mm)
Package depth	18.7" (475 mm)
Package height	5.51" (140 mm)
Package weight	9.04 lbs (4.1 kg)
