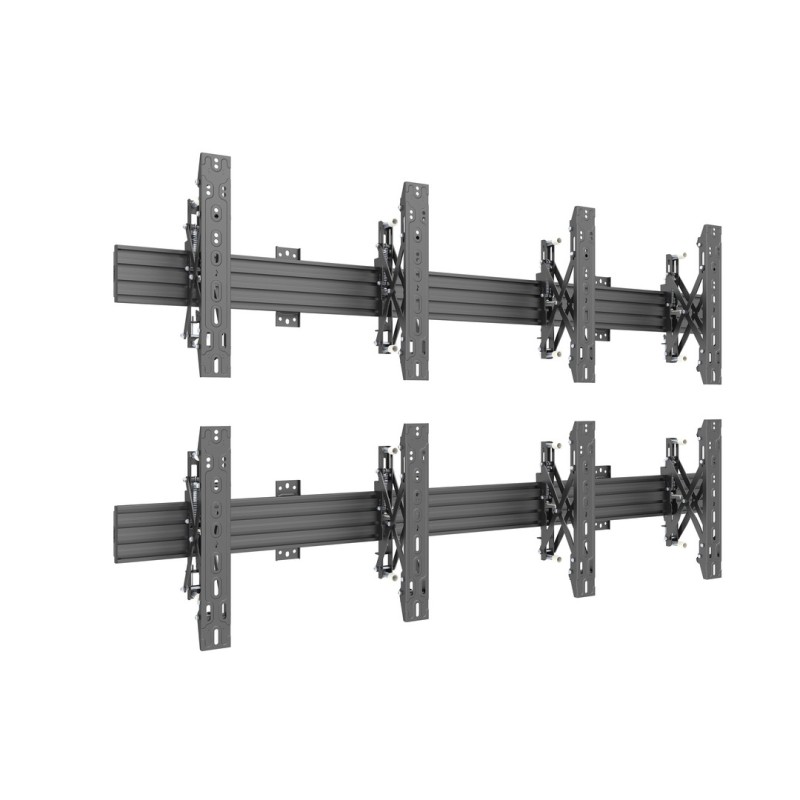

Multibrackets Pro Series M Wallmount Pro MBW2U Push In Pop Out Black is our innovative - ready to be installed Single-Display Wallmount.

The new professional video wallmount for 6 screens from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install, and simple to maintain. Push in pop out arms makes installation and service simple and detailed. Individual fine tune adjustement possibilities for each screen gives a very detailed finishing touch. Working closely with installers we created a range with close to unlimited flexibility. This model the M Wallmount Pro MBW2Ux2 Push In Pop Out Black is no exception. The product provides the versatility and flexibility demanded by installers. Based upon the Pro Series strong and ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and creating an esthetic result worth the public eye.

With its modular construction installers have vast possibilities to change, create, update and reconfigure its design if ideas change over time, then Pro Series can follow.

Designed with our Scandinavian heritage in mind and providing a clean Nordic look each part and detail serves its purpose. The result is a sleek Nordic solution emphasizing quality and function. Used in a variety of environments this ceiling mount is truly versatile and is made of the highest quality materials.

The Pro Series possibilities to extend aluminum rail change brackets and add details by individual choice is vast so that one can tailor each mount to its location and function.
The Pro Series includes hardware so that a basic installation should not be a hassle.

Multibrackets Pro Series Public Wallmounts is ideal for any large screen digital signage wallmount application such as videowalls, menuboards and more.

Multibrackets 2628. Maximum weight capacity: 264.6 lbs (120 kg), Minimum screen size: 40", Maximum screen size: 65", Minimum VESA mount: 3.94 x 3.94" (100 x 100 mm), Maximum VESA mount: 23.6 x 15.7" (600 x 400 mm). Height adjustment range: 0 - 0.197" (0 - 5 mm), Tilt angle range: -3 - 3°. Product color: Black

Number of displays supported	4
Maximum weight capacity (per display)	66.1 lbs (30 kg)
Maximum screen size	65"
Mounting type	Wall
Maximum weight capacity	264.6 lbs (120 kg)
Minimum VESA mount	3.94 x 3.94" (100 x 100 mm)
Maximum VESA mount	23.6 x 15.7" (600 x 400 mm)
Minimum screen size	40"
Panel mounting interface	100 x 100,400 x 600,600 x 400
Height adjustment	Yes
Height adjustment type	Manual
Height adjustment range	0 - 0.197" (0 - 5 mm)
Tilt angle range	-3 - 3°
Cable management	Yes
Tilt adjustment	Yes
Product color	Black
Housing material	Aluminum, Steel
Width	77.2" (1960 mm)
Depth	3.54" (90 mm)
Height	19.3" (490 mm)
Weight	61.9 lbs (28.1 kg)
Aluminium content weight	18.5 lbs (8.4 kg)
Steel content weight	61.9 lbs (28.1 kg)
Other metals content weight	0 oz (0 g)
Package weight	66.1 lbs (30 kg)
Quantity per pack	1 pc(s)
Mounting kit	Yes
Paper/cardboard packaging weight	3.97 lbs (1.8 kg)
Metal packaging weight	0 oz (0 g)
Plastic packaging weight	3.53 oz (100 g)
Depth adjustment range	0 - 0.591" (0 - 15 mm)
