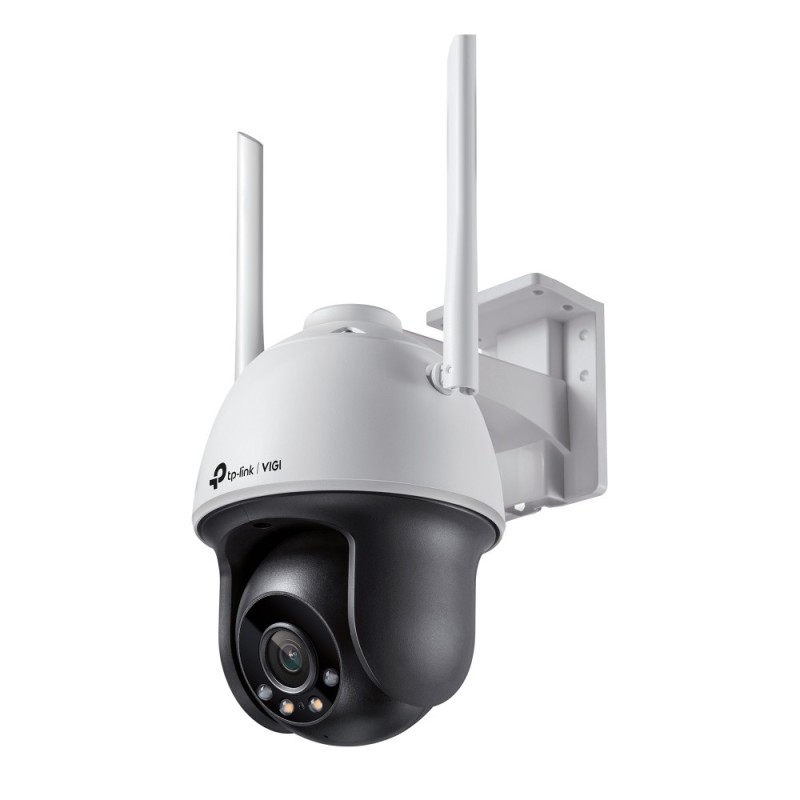

TP-Link VIGI C540-W V1, IP security camera, Indoor & outdoor, Wired & Wireless, RCM, BSMI, VCCI, NCC, JRF, KC, Ceiling/wall, Black, White
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired & Wireless |
| Certification | RCM, BSMI, VCCI, NCC, JRF, KC |
| Mounting type | Ceiling/wall |
| Product color | Black, White |
| Form factor | Turret |
| Housing material | Plastic |
| International Protection (IP) code | IP66 |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 79° |
| Lens viewing angle, vertical | 43° |
| Lens viewing angle, diagonal | 93° |
| Tilt angle range | 0 - 120° |
| Tilt speed | 44 °/sec |
| Pan range | 0 - 350° |
| Pan speed | 44 °/sec |
| Sensor type | CMOS |
| Optical sensor size | 1/3" |
| Progressive scan | Yes |
| Number of lenses | 1 |
| Zoom capability | Yes |
| Detect distance | 3149.6" (80 m) |
| Observe distance | 1299.2" (33 m) |
| Recognize distance | 629.9" (16 m) |
| Lens diameter | 0.157" (4 mm) |
| Identify distance | 315" (8 m) |
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Maximum resolution | 2560 x 1440 pixels |
| Total megapixels | 4 MP |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Supported graphics resolutions | 320 x 240, 352 x 288, 640 x 480 (VGA), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440 |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness |
| Privacy masking | Yes |
| Bit rate | 256 Kbps - 4 Mbps |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Built-in speaker(s) | Yes |
| Built-in microphone | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Live view | Yes |
| Number of simultaneous live view channels | 3 channels |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
| Ethernet LAN (RJ-45) ports | 1 |
| Password protection | Yes |
| IP address filtering | Yes |
| Security algorithms | WPA, WPA2-PSK |
| HTTPS encryption | Yes |
| Intelligent Video Surveillance (IVS) system features | Human detection |
| Mirror | Yes |
| Digest authentication | Yes |
| Reset button | Yes |
| Behavior analysis | Intrusion detection, Line crossing detection |
| Power source type | DC |
| DC output voltage | 12 |
| Operating temperature (T-T) | -30 - 60 °C |
| Width | 4.72" (120 mm) |
| Depth | 6.77" (172 mm) |
| Height | 7.8" (198 mm) |
| Basic event | Motion Detection, Camera Tampering Detection, Exception |
| Package width | 6.42" (163 mm) |
| Package depth | 9.57" (243 mm) |
| Package height | 9.57" (243 mm) |
| Package weight | 2.67 lbs (1.21 kg) |
| Compliance certificates | CE, RoHS |
| Number of cameras | 1 |
| Mounting kit | Yes |
