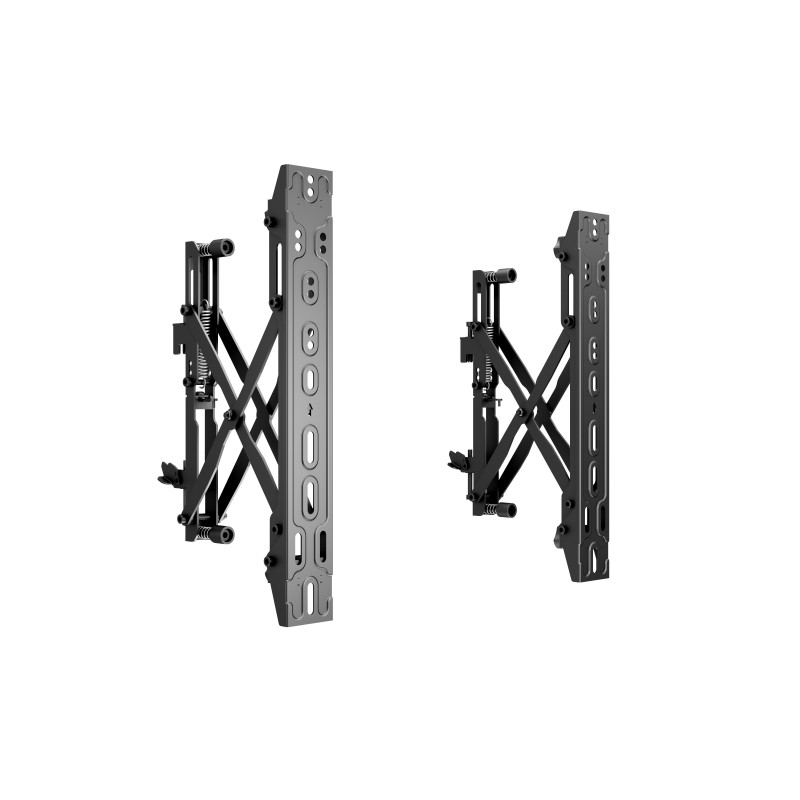

The M Pro Series – M Push in Pop out Pro, VESA 400 Videowall mount might just be one of the markets most innovative and easy to install video wall mounts available.

With numerous post installation possibilities and a tailored pantograph alignment system this might be the most easy to use, yet  one of the most powerful video wall mount system you have seen.

With the market for Menu boards and Video Wall installations growing at a fantastic pace, the need for a high quality, affordable and installer friendly mounting equipment has become in the need by many. Our Pro Series M Push in Pop out Pro, VESA 400 is a video a wall solution quick to install, and easy to configure. Made especially for menu board, video wall applications in mind. This is a professional mount focusing on multiple screen installations, easy and fast installation and simplified maintenance. Making it an installers dream.

Easy-access to your after-service
The "Pop out" feature gives easy-access to any display for quick serviceability. This is often one of the major functions needed when building a video wall mounting solution or when integrating a single screen into the wall. Simply push against the screen to release the lock, then the screen will pop out, you do not need to remove any other screens to access a center screen for maintenance or when placed in recessed areas. The pop out feature is handled by its scissor arm construction expanding out. Of course the screen is as easily pushed back into place after maintenance is finished.

Knobs making detailed adjustments an ease

With the built in fine tune adjustments each of the M Push in Pop out Pro, VESA 400 can be adjusted individually to match "its neighboring screens". By 8 knobs the screens can be adjusted in depth, side and height. What before could take hours for an installer to measure and re install, is now fixed in a matter of minutes.

Truly an installers dream come true.

Multibrackets 4726. Maximum weight capacity: 66.1 lbs (30 kg), Minimum screen size: 40", Maximum screen size: 65", Minimum VESA mount: 3.94 x 3.94" (100 x 100 mm), Maximum VESA mount: 15.7 x 15.7" (400 x 400 mm). Tilt angle range: -3 - 3°. Product color: Black

Number of displays supported	1
Maximum screen size	65"
Mounting type	Wall
Maximum weight capacity	66.1 lbs (30 kg)
Minimum VESA mount	3.94 x 3.94" (100 x 100 mm)
Maximum VESA mount	15.7 x 15.7" (400 x 400 mm)
Minimum screen size	40"
Panel mounting interface	100 x 100,400 x 400 mm
Tilt angle range	-3 - 3°
Tilt adjustment	Yes
Distance to the wall (min)	2.91" (7.4 cm)
Distance to the wall (max)	8.86" (22.5 cm)
Product color	Black
Housing material	Steel
Width	3.15" (80 mm)
Depth (max)	8.86" (22.5 cm)
Height	17.9" (455 mm)
Weight	11.8 lbs (5.37 kg)
Aluminium content weight	0 oz (0 g)
Steel content weight	11.8 lbs (5.37 kg)
Other metals content weight	0 oz (0 g)
Package width	6.85" (174 mm)
Package depth	18.7" (475 mm)
Package height	3.46" (88 mm)
Package weight	12.6 lbs (5.7 kg)
Package type	Box
Manual	Yes
Paper/cardboard packaging weight	10.6 oz (300 g)
Metal packaging weight	0 oz (0 g)
Plastic packaging weight	1.06 oz (30 g)
Quantity per EUR-pallet	57 pc(s)
Shipping (inner) case width	18.1" (46 cm)
Shipping (inner) case length	19.3" (49 cm)
Shipping (inner) case height	7.48" (19 cm)
Shipping (inner) case weight	46.3 lbs (21 kg)
Quantity per shipping (inner) case	5 pc(s)
