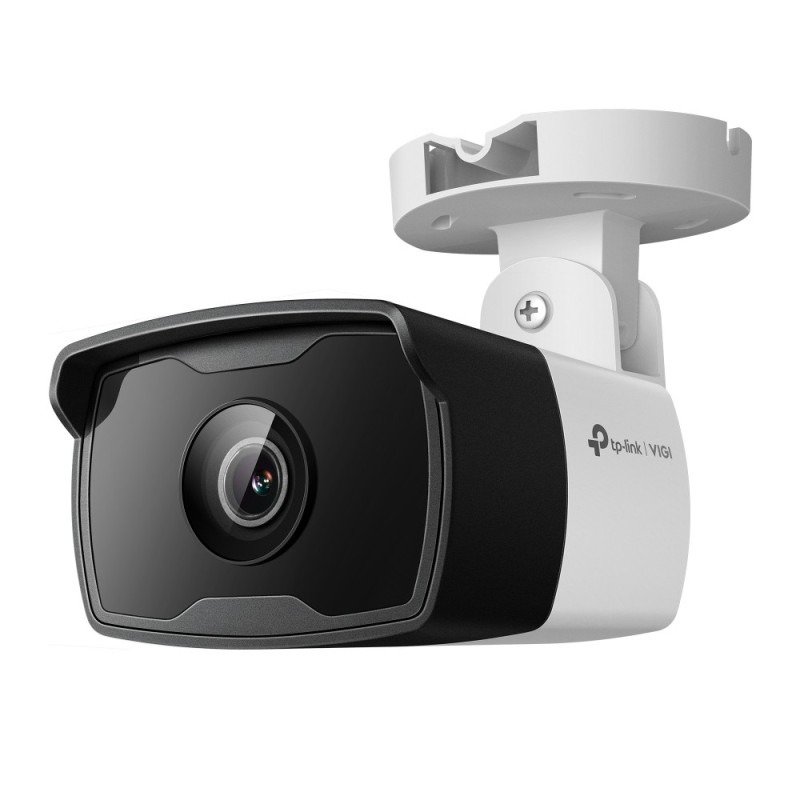

TP-Link VIGI C340I 2.8MM, IP security camera, Outdoor, Wired, Ceiling/Wall/Pole, Black, White, Bullet
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Mounting type | Ceiling/Wall/Pole |
| Product color | Black, White |
| Form factor | Bullet |
| Housing material | Plastic |
| International Protection (IP) code | IP67 |
| Minimum illumination | 0.01 lx |
| Lens viewing angle, horizontal | 88.8° |
| Lens viewing angle, vertical | 48.9° |
| Lens viewing angle, diagonal | 106.5° |
| Tilt angle range | -90 - 90° |
| Pan range | -90 - 90° |
| Camera shutter speed | 1/3 - 1/10000 s |
| Number of Privacy masking areas | 4 |
| Sensor type | CMOS |
| Optical sensor size | 1/3" |
| Progressive scan | Yes |
| Number of lenses | 1 |
| Detect distance | 2362.2" (60 m) |
| Observe distance | 984.3" (25 m) |
| Recognize distance | 472.4" (12 m) |
| Maximum aperture number | 2.2 |
| Identify distance | 236.2" (6 m) |
| Fixed focal length | 0.11" (2.8 mm) |
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 2 |
| Infra-red wavelength | 850 nm |
| Maximum resolution | 2560 x 1440 pixels |
| Total megapixels | 4 MP |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Supported graphics resolutions | 320 x 240, 352 x 288, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440 |
| Supported video modes | 240p, 480p, 720p, 1080p, 1280p, 1440p |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness |
| Privacy masking | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | 256 Kbps - 4 Mbps |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| 3D positioning | Yes |
| Signal-to-Noise Ratio (SNR) | 52 dB |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Number of simultaneous live view channels | 3 channels |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Password protection | Yes |
| Video motion detection | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Intelligent Video Surveillance (IVS) system features | Crossing line, Region entrance detection, Region exiting detection, Vehicle detection |
| Mirror | Yes |
| Password reset via email | Yes |
| Human and vehicle targets classification | Yes |
| Digest authentication | Yes |
| Network access storage (NAS) | Yes |
| Web browser | Yes |
| Behavior analysis | Intrusion detection, Line crossing detection, Object removal detection, Region entrance detection, Region exiting detection |
| Power source type | DC, PoE |
| Power consumption (typical) | 1.32 W |
| Power consumption (max) | 5 W |
| DC output voltage | 12 |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Width | 2.87" (73 mm) |
| Height | 2.8" (71 mm) |
| Length | 6.85" (174 mm) |
| Weight | 7.05 oz (200 g) |
| Package width | 5.04" (128 mm) |
| Package depth | 8.58" (218 mm) |
| Package height | 4.06" (103 mm) |
| Package weight | 12.7 oz (360 g) |
| Package type | Box |
| Compliance certificates | BSMI, CE, EAC, Federal Communications Commission (FCC), UKCA |
| Number of cameras | 1 |
| Mounting kit | Yes |
| Manual | Yes |
| Sustainability compliance | Yes |
