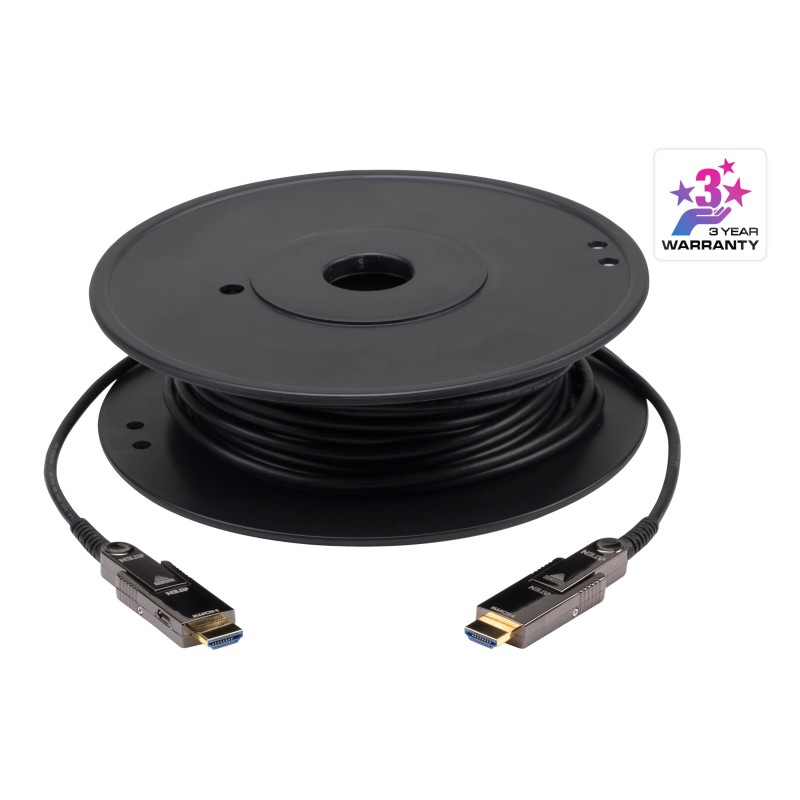

VE7834A-AT

ATEN VE7834A optical cables utilize AOC technology that enables conversion between input signals and output signals for optimum high bandwidth data transmissions. The EMI-resistant optical cables are available in 60 m with full support of True 4K resolutions. They are fully compliant with HDCP 2.2 standards and meet HDMI specifications including 3D, deep color, and data rates up to 18 Gbps. Supporting Dolby True HD and DTS-HD Master Audio, these optical cables guarantee lossless audio signal transmissions. This cable series comes with an HDMI Ethernet Channel (HEC) to combine audio, video, and data streams into a cable, enabling Internet connection sharing and IP-based applications over HDMI. Plus, it supports Audio Return Channel (ARC), allowing audio signal to travel to and from the TV and audio system, thereby reducing the number of cables between the television and external Home Theatre System or soundbar

Engineered to meet the latest trend of integrator-friendly design, the VE7834A optical cables feature pluggable gender and gold-plated connectors. Therefore, the cables are ideal solutions for extending the reach of digital signages in a wide range of settings, such as traffic stations, shopping centers, and hospital facilities.

ATEN VE7834A. Cable length: 2362.2" (60 m), Connector 1: HDMI Type-A/HDMI Type-D, Connector 1 gender: Male, Connector 2: HDMI Type-A/HDMI Type-D, Connector 2 gender: Male, Connector contacts plating: Gold, 3D, Data transfer rate: 18 Gbit/s, Audio Return Channel (ARC), Product color: Black

Cable length	2362.2" (60 m)
Connector 1	HDMI Type-A/HDMI Type-D
Connector 2	HDMI Type-A/HDMI Type-D
Connector 1 gender	Male
Connector 2 gender	Male
Product color	Black
Connector contacts plating	Gold
Connector 1 form factor	Straight
Connector 2 form factor	Straight
3D	Yes
Supported graphics resolutions	3840 x 2160, 4096 x 2160
Audio Return Channel (ARC)	Yes
HDCP	Yes
HDCP version	2.2
Data transfer rate	18 Gbit/s
Bandwidth	600 MHz
Maximum refresh rate	60 Hz
Cable jacket material	Plenum (OFNP)
Color sampling	4:4:4, 4:2:0, 4:2:2
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 85%
Certification	CE / FCC / RoHS2 / UL CMP-OF
Cable diameter	0.177" (4.5 mm)
Weight	3.57 lbs (1.62 kg)
Quantity per pack	1 pc(s)
