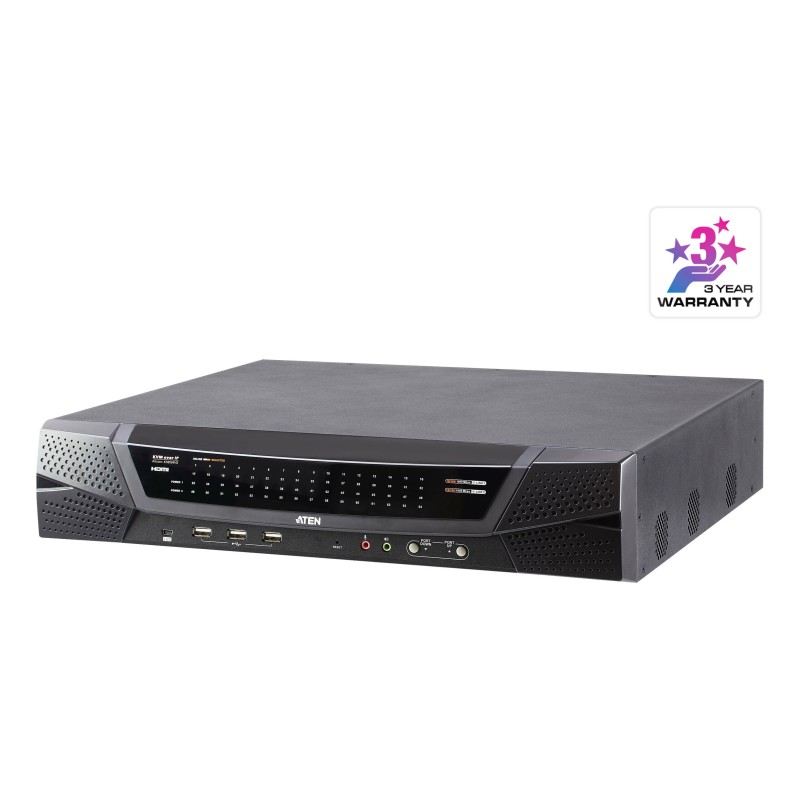

KN8064VB-AX-G

The KN8064VB KVM over IP switch provides local console and remote over IP access for users to monitor and access their entire data center over a network.The KN series offers superior FHD video resolution up to 1920 x 1200, virtual media transmissions at double speed, FIPS 140-2 with level 1 security standards by using an embedded FIPS 140-2 certified OpenSSL cryptographic module. Equipped with dual on-board NICs, the KN series is built to ensure reliability and availability of remote access to all servers. The KN series can be remotely accessed via WinClient / JavaClient* at a console from a separated location for management and operation. ATEN also provides an iOS app - PadClient, whose intuitive interface makes it easy to connect to the KVM over IP switch and control computers direct from user's iPad. Please visit the PadClient webpage for more information.

This KVM switch provides out-of- band access with external modem support for BIOS-level troubleshooting when the network is down. It enables IT administrators to manage network devices (e.g. server, storage, router, and switch) in server rooms via management networks that are separate from the main / production networks. If there’s difficulty in accessing the network devices through the production network, the administrators can still access them via the KVM switch. The KVM switch offers several out-of-band access methods, such as a direct console connection from a local computer, a USB console connection from a laptop, a PSTN connection via modem, or a dedicated management network connection via the Ethernet (LAN) port.

The KN series can be integrated into ATEN’s CC2000 Centralized Management Software. The CC2000 delivers a better user experience and advanced usability. By utilizing consolidated data, task-based navigation, and simplified menus, administrators can access, configure, and manage all of the IT equipments with ease.

The KN series is compatible with ATEN’s KVM over IP Console Station – the KA82 series. The KA82 series is a standalone console that replaces PC or NB, enabling users to remotely access, monitor and control all servers connected to multiple ATEN’s KN series with impenetrable security against virus threats. It is especially suitable for environments where a PC is not allowed. In addition, the KN series works with ATEN’s PDU remote power management systems from the KVM over IP switches’ user interface.

Additional exclusive features of KN series include Message Board, Panel Array Mode, Mouse DynaSync™, and the adapter ID. ATEN KVM over IP switches save user’s time and money by allowing administrators to manage their data centers from practically anywhere – minimizing travel and MTTR (Mean Time to Repair) costs, ensuring the highest availability for data center services.

ATEN KN8064VB. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: HDMI/VGA. HD type: WUXGA, Maximum resolution: 1920 x 1080 pixels, Video bandwidth: 60 Hz. Product color: Black, Housing material: Metal. Power source: AC, Input voltage: 100 - 240 V, AC input frequency: 50-60 Hz. Width: 16.2" (412.6 mm), Depth: 17.1" (433.9 mm), Height: 3.46" (88 mm)

Number of computers controlled	64
Keyboard port type	USB, PS/2
Mouse port type	USB, PS/2
Video port type	HDMI/VGA
Console ports	HDMI, USB A, VGA (D-Sub)
Console USB ports quantity	2
Console HDMI ports quantity	1
USB connector type	Mini-USB B, USB Type-A
Serial port type	RJ-45
Serial ports quantity	1
Audio connections	Yes
Headphone outputs	1
Number of microphone inputs	1
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	2
HD type	WUXGA
Maximum resolution	1920 x 1080 pixels
Video bandwidth	60 Hz
Scan interval	1,255 s
Product color	Black
Housing material	Metal
Cascadable	Yes
LED indicators	Yes
Push button	Yes
Hot keys	Yes
Built-in display	No
Power source	AC
Input voltage	100 - 240 V
AC input frequency	50-60 Hz
Input current	1 A
Power consumption (typical)	84.7 W
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Width	16.2" (412.6 mm)
Depth	17.1" (433.9 mm)
Height	3.46" (88 mm)
Weight	15.9 lbs (7.19 kg)
