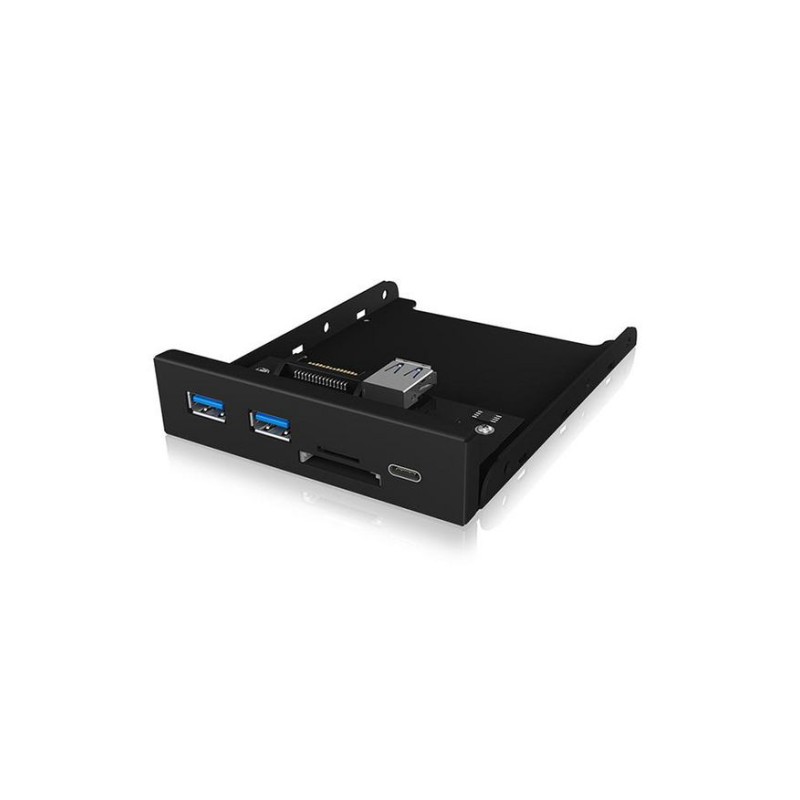

RefreshmentWith the IB-HUB1417-i3, devices become a small control center again. Existing devices such as printers, USB sticks with Type-A and Type-C™ ports, keyboards and SD/MicroSD can now be used again in an uncomplicated manner, without the need to search for a free connection or reorder connected devices.
Some thingswe won´t miss thanks to Multi-LUN support, each logical drive is a stand-alone device. This allows both SD cards to be accessed and data copied simultaneously. This makes the usual back and forth of SD cards a thing of the past.
Not only useful but handsomeDevices that we use every day should not only work but also appeal to us visually. The IB-HUB1417-i3 with its simple inscription on the black paint of the solid metal housing would particularly like to please us here - and is very successful.
- 1 x USB Type-C™ with a transfer rate up to 5 Gbit/s
- 2 x USB Type-A with a transfer rate up to 5 Gbit/s
- SD and microSD dual card reader (UHS-I) up to 100 MB/s
- Multi-LUN - allows the simultaneous use of two cards
- Supports HC-I and XC-I standards up to 2 TB
- Housing made of stable metal
- Fits a standard 3.5" (8.89 cm) bay
Specifications
Features
| Data transfer rate | 5000 Mbit/s |
| Hot-swap | Yes |
| Housing material | Metal |
| Plug and Play | Yes |
| Product colour | Black |
Logistics data
| Master (outer) case gross weight | 11600 g |
| Master (outer) case height | 33 cm |
| Master (outer) case length | 34 cm |
| Master (outer) case width | 34 cm |
| Products per master (outer) case | 40 pc(s) |
Other features
| Chipset | GL3520 ASM1543 GL3224 |
Packaging content
| Quantity per pack | 1 pc(s) |
| Quick installation guide | Yes |
Ports & interfaces
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash)/MicroSDHC/SD/SDHC |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| Hub interfaces | USB 3.2 Gen 1 (3.1 Gen 1) Type-A/USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
Power
| Output current | 0.9 A |
| Output voltage | 5 V |
System requirements
| Windows operating systems supported | Yes |
Vendor information
| Brand Name | ICY BOX |
| Warranty | 2 |
