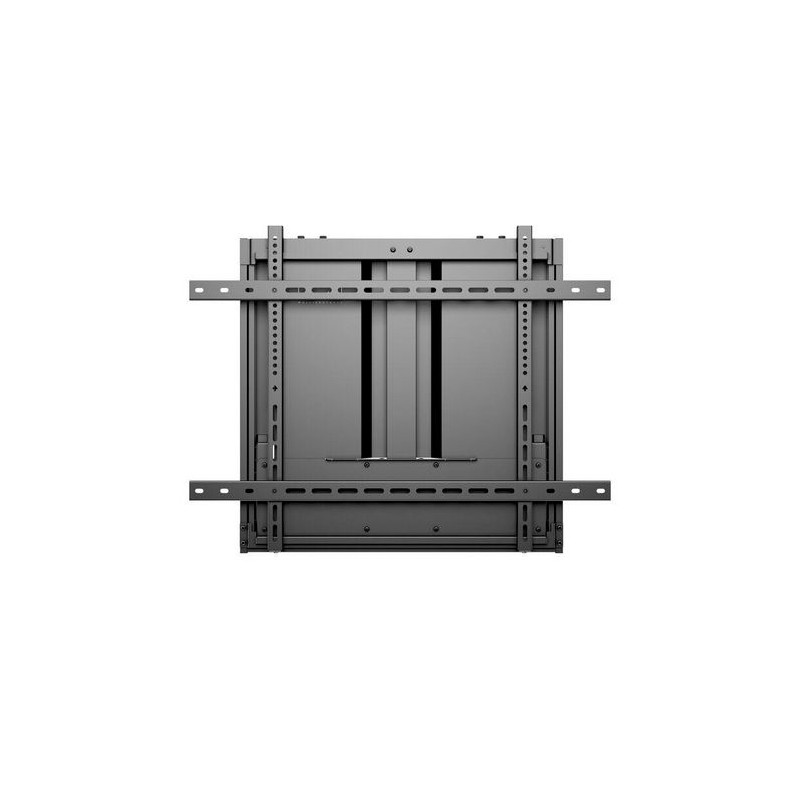

It’s never been this easy to move a large size display or touch screen up and down. Made to fit most public environments and perfect in meeting rooms, and other educational. Introducing the M Counterbalanced Wallmount 60-90kg is designed to provide assisted lifting force and mid-span balancing, allowing safety and usability for any user in front of a large size display.
The M Counterbalanced Wallmount a Dynamic Height adjustable TV Wallmount for Interactive display panel allows users to raise and lower large displays with only a light effort to varied vertical positions. With a vertical movement range of 400 mm the M Counterbalanced Wallmount is the perfect wallmount for schools using interactive displays where small children need to reach the interactive panel. The flexible movement a lets you set the height depensing om situation and audience. Faster and easier than traditional electric mounts with no power required.
Using high quality details and components this M Counterbalanced Wallmount HD 60-90 kg will be servicing you for a long time. Tested under rigorous conditions with weights well over the max level and with a frequency not adaptive for normal conditions this unit will be servicing your needs for a very long time. The Multibrackets is very clever making it possible to have a very good flexibility in height yet the screen does not build to far from the wall. Supporting a wide range of VESA specifications up to 800x600 it can hold near any large screen the market has to offer. It is ideal for use anywhere where a screen needs to be height adjustable or where there is a crowd that might be sitting and/ or standing.
Features effortless up and down movement of a display
Neutralizes the weight of the screen
Fully smooth up and down motion and stopping
Holds securely in any position
Totally Quiet operation
Creates a weightless feeling
Completely maintenance free
Manufactured without compressed gases, oils and service schedules
Amazing finish stainless steel and aluminum parts
Specifications
Design
Product colour
Black
Ergonomics
Height adjustment
Yes
Height adjustment range
0 - 400 mm
Height adjustment type
Manual
Mounting
Maximum screen size
90 "
Maximum VESA mount
800 x 600 mm
Maximum weight capacity
90 kg
Minimum screen size
75 "
Minimum VESA mount
200 x 200 mm
Mounting type
Wall
Number of displays supported
1
Panel mounting interface
200 x 200/300 x 200/300 x 300/400 x 200/400 x 300/400 x 400/600 x 400/700 x 400/800 x 400/800 x 500/800 x 600 mm
Technical details
Compliance certificates
CE
Metal packaging weight
27440 g
Paper/cardboard packaging weight
3980 g
Plastic packaging weight
200 g
Sustainability certificates
CE
Vendor information
Brand Name
Multibrackets
Warranty
1
Weight & dimensions
Aluminium content weight
26800 g
Other metals content weight
0 g
Steel content weight
640 g
Product Details
2026-01-08
New
Data sheet
Minimum VESA mount
7.87 x 7.87" (200 x 200 mm)
Schnittstelle für Schalttafeleinbau
200 x 200/300 x 200/300 x 300/400 x 200/400 x 300/400 x 400/600 x 400/700 x 400/800 x 400/800 x 500/800 x 600 mm
