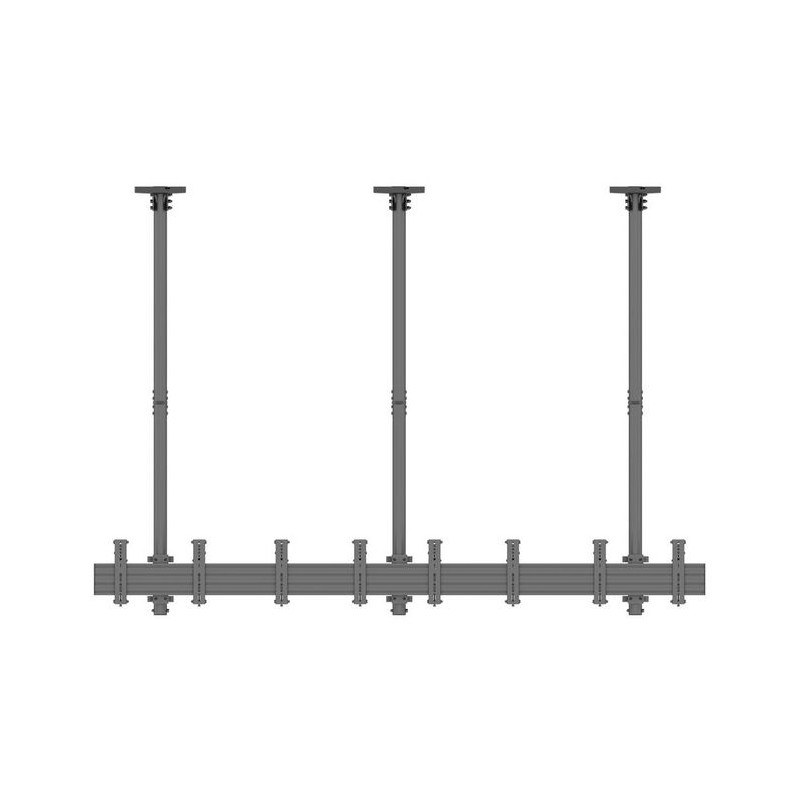

M Ceiling Mount Pro MBC4X1U, VESA 200 - Ceiling mount for LCD display, steel, 3m length, 4 screens, single side, tilt arms, VESA Max 200x200 - screen size: 30"-42" - black
Multibrackets Pro Series M Ceiling Mount Pro MBC4X1U, VESA 200 is our innovative - ready to be installed Single-Display Ceiling Mount.
The new professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install, and simple to maintain. Working closely with installers we created a range with close to unlimited flexibility. This model the M Ceiling Mount Pro MBC4X1U, VESA 200 is no exception. The product provides the versatility and flexibility demanded by installers. Based upon the Pro Series strong and ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and creating an esthetic result worth the public eye.
With its modular construction installers have vast possibilities to change, update and reconfigure its design if ideas change over time then Pro Series can follow.
Designed with our Scandinavian heritage in mind and providing a clean Nordic look each part and detail serves its purpose. The result is a sleek Nordic solution emphasizing quality and function. Used in a variety of environments this ceiling mount is truly versatile and is made of the highest quality materials.
The Pro Series possibilities to extend pipes and add details by individual choice is vast so that one can tailor each mount to its location and function. The Pro Series includes hardware so that a basic installation should not be a hassle.
Multibrackets Pro Series Public Ceiling Mounts is ideal for any large screen digital signage ceiling application.
A professional, flexible and modular product
Includes VESA adapters for compatibility up to VESA 200x200
Integrated cable management throughout the entire solution
Power click install for an easy, fast and safe installation
Ceiling plate included
Portrait or landscape position of screen possible
Hardware kit included
Specifications
Design
Housing material
Aluminium/Steel
Product colour
Black
Ergonomics
Angle of rotation
8 °
Cable management
Yes
Height adjustment
Yes
Height adjustment range
580 - 1550 mm
Rotating
Yes
Swivel angle
360 °
Tilt adjustment
Yes
Tilt angle range
0 - 15 °
Mounting
Maximum screen size
42 "
Maximum VESA mount
200 x 200 mm
Maximum weight capacity
120 kg
Maximum weight capacity (per display)
30 kg
Minimum screen size
30 "
Minimum VESA mount
75 x 75 mm
Mounting type
Ceiling
Number of displays supported
4
Panel mounting interface
100 x 100/100 x 200/200 x 100/200 x 200/75 x 75 mm
Packaging content
Mounting kit
Yes
Technical details
Compliance certificates
CE
Metal packaging weight
0 g
Paper/cardboard packaging weight
1800 g
Plastic packaging weight
150 g
Sustainability compliance
Yes
Vendor information
Brand Name
Multibrackets
Warranty
1
Weight & dimensions
Aluminium content weight
6000 g
Other metals content weight
0 g
Steel content weight
39744 g
Product Details
2026-01-08
New
Data sheet
Tilt adjustment
Yes
Minimum VESA mount
2.95 x 2.95" (75 x 75 mm)
Schnittstelle für Schalttafeleinbau
100 x 100/100 x 200/200 x 100/200 x 200/75 x 75 mm
