Description
What This Product Does

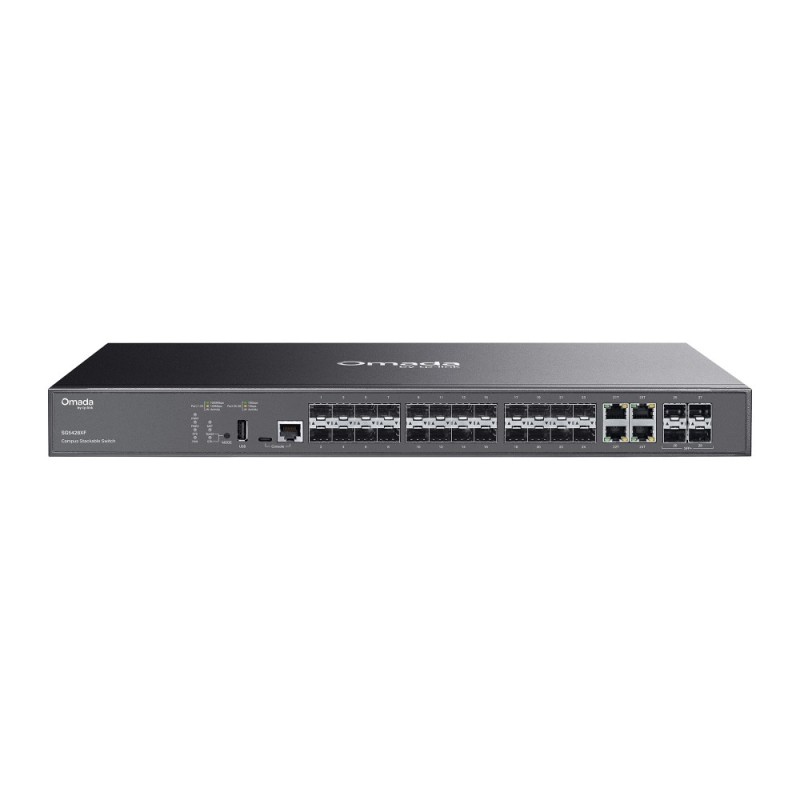

Omada SG5428XF is a dependable entry-level L3 switch tailored for the aggregation layer, featuring L3 routing, fast 10 Gbps wired speeds, and stacking options. It includes 20× gigabit SFP slots, 4× gigabit RJ45/SFP combo ports, 4× 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security and extensive management features, the SG5428XF offers a reliable networking solution for SMEs and ISPs.
High-speed Connectivity and Powerful Stacking
20× gigabit SFP slots, 4× gigabit RJ45/SFP combo ports, and 4× 10 Gbps SFP+ slots provide up to 128 Gbps switching capacity per unit. Up to 4 units of physical stacking empower the networking structure with built-in redundancy and performance.
Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, DHCP Server, and DHCP Relay are supported.
Highly Available
ERPS (Ethernet Ring Protection Switching) ensures rapid protection and recovery in ring topologies, which is essential for maintaining network uptime in medium-sized business environments.
Enhanced Security Functions
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.
Omada SDN
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).† The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management—all controlled from a single interface. Apart from the ability to be centrally managed via the web or the Omada app, SG5428XF is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.
TP-Link SG5428XF. Switch type: Managed, Switch layer: L3. Console port: RJ-45/USB Type-C. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3x. Rack mounting
Omada SG5428XF is a dependable entry-level L3 switch tailored for the aggregation layer, featuring L3 routing, fast 10 Gbps wired speeds, and stacking options. It includes 20× gigabit SFP slots, 4× gigabit RJ45/SFP combo ports, 4× 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security and extensive management features, the SG5428XF offers a reliable networking solution for SMEs and ISPs.
High-speed Connectivity and Powerful Stacking
20× gigabit SFP slots, 4× gigabit RJ45/SFP combo ports, and 4× 10 Gbps SFP+ slots provide up to 128 Gbps switching capacity per unit. Up to 4 units of physical stacking empower the networking structure with built-in redundancy and performance.
Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, DHCP Server, and DHCP Relay are supported.
Highly Available
ERPS (Ethernet Ring Protection Switching) ensures rapid protection and recovery in ring topologies, which is essential for maintaining network uptime in medium-sized business environments.
Enhanced Security Functions
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.
Omada SDN
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).† The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management—all controlled from a single interface. Apart from the ability to be centrally managed via the web or the Omada app, SG5428XF is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.
TP-Link SG5428XF. Switch type: Managed, Switch layer: L3. Console port: RJ-45/USB Type-C. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3x. Rack mounting
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Combo SFP ports quantity | 4 |
| SFP module slots quantity | 20 |
| SFP+ module slots quantity | 4 |
| USB Type-A ports quantity | 1 |
| Fiber ports quantity | 4 |
| Fiber optic connector | SFP |
| Console port | RJ-45/USB Type-C |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3x |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Management VLAN, Multicast VLAN, Private VLAN, Tagged VLAN, Voice VLAN |
| MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 12 MB |
| DHCP features | DHCP relay, DHCP server, DHCP snooping, DHCPv6 snooping |
| IGMP snooping | Yes |
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
| IP-MAC-Port binding | Yes |
| Authentication | Guest VLAN |
| Authentication type | AAA, TACACS+ |
| Multicast Listener Discovery (MLD) snooping | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Routing protocols | OSPF, OSPFv2, OSPFv3, RIP |
| Rack mounting | Yes |
| Stackable | Yes |
| Product color | Black |
| Number of fans | 1 fan(s) |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 28.3 W |
| Power consumption (max) | 28.98 W |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 98.822 BTU/h |
| Width | 17.3" (440 mm) |
| Depth | 8.66" (220 mm) |
| Height | 1.73" (44 mm) |
| Cables included | AC |
| Quick start guide | Yes |
| Rack mount kit | Yes |
Product Details
2026-05-28
New
Data sheet
- Product color
- Black
- AC input frequency
- 50/60 Hz
- Width
- 17.3" (440 mm)
- Height
- 1.73" (44 mm)
- Power source type
- AC
- AC input voltage
- 100 - 240 V
- Depth
- 8.66" (220 mm)
- Operating temperature (T-T)
- -5 - 45 °C
- Storage temperature (T-T)
- -40 - 70 °C
- Operating relative humidity (H-H)
- 10 - 90%
- Storage relative humidity (H-H)
- 5 - 90%
- Cables included
- AC
- Number of fans
- 1 fan(s)
- Quick start guide
- Yes
- Networking standards
- IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3x
- Power consumption (typical)
- 28.3 W
- Power consumption (max)
- 28.98 W
- Security algorithms
- SNMP, SNMPv2, SNMPv3
- Fiber ports quantity
- 4
- Fiber optic connector
- SFP
- Web-based management
- Yes
- Quality of Service (QoS) support
- Yes
- Switch type
- Managed
- Switching capacity
- 128 Gbit/s
- Jumbo frames support
- Yes
- Jumbo frames
- 9000
- Packet buffer memory
- 12 MB
- Rate limiting
- Yes
- VLAN support
- Yes
- Virtual LAN features
- Management VLAN, Multicast VLAN, Private VLAN, Tagged VLAN, Voice VLAN
- Console port
- RJ-45/USB Type-C
- Rack mounting
- Yes
- SFP module slots quantity
- 20
- Stackable
- Yes
- Switch layer
- L3
- Flow control support
- Yes
- Link aggregation
- Yes
- Broadcast storm control
- Yes
- Spanning tree protocol
- Yes
- MAC address table
- 16000 entries
- DHCP features
- DHCP relay, DHCP server, DHCP snooping, DHCPv6 snooping
- Authentication type
- AAA, TACACS+
- Heat dissipation
- 98.822 BTU/h
- ARP inspection
- Yes
- Combo SFP ports quantity
- 4
- SFP+ module slots quantity
- 4
- Port mirroring
- Yes
- Number of queues
- 8
- IGMP snooping
- Yes
- Authentication
- Guest VLAN
- GARP VLAN Registration Protocol (GVRP)
- Yes
- Routing protocols
- OSPF, OSPFv2, OSPFv3, RIP
- IP-MAC-Port binding
- Yes
- Multicast Listener Discovery (MLD) snooping
- Yes
- Rack mount kit
- Yes
- USB Type-A ports quantity
- 1
Specific References
- EAN13
- 1210002602389
- MPN
- SG5428XF
