AV80-500BL

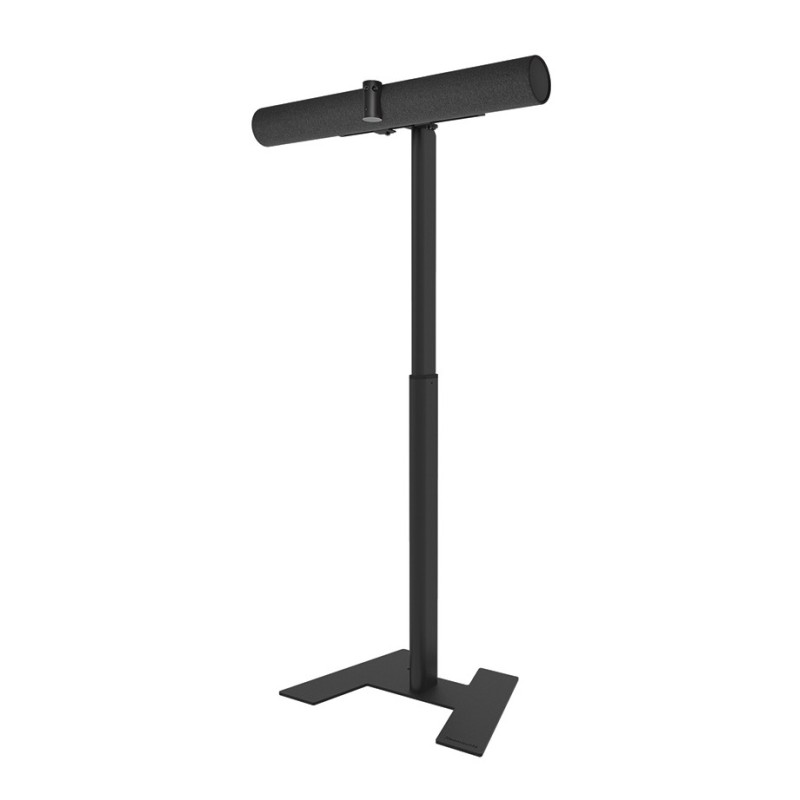

The Neomounts AV80-500BL is a universal videobar floor stand built to support devices up to 10 kg, the stand can be placed freely in any space for maximum flexibility. With an adjustable height, ideal for boardrooms and Microsoft Signature Teams Rooms with Front Row layout, it ensures optimal visibility and professional presentation.

Compatible with most* videobars, PTZ cameras, and soundbars, including Logitech Rally speakers, the AV80-500BL offers broad applicability. The mounting holes allow both width and height adjustments, while the VESA frame adapts in four positions (200/400/600/800).

* The Neomounts AV80-500BL floor stand is truly universal, supporting any videobar that fits within the bracket?s range (see line drawing). It is specifically optimized for the following models:

- Bose Professional VB1
- Neat Bar (gen 1) and Bar Pro
- Poly Studio USB, Studio X50/X52/V52 and Studio X70/X72/V72
- Jabra Panacast 40/50
- Logitech Meetup, Meetup 2, Rally Bar, Rally Bar Mini, Rally Bar Huddle and Rally speakers
- Cisco Webex Room Kit Plus
- Yealink MSpeaker II, MeetingBar A40/A50
- AVer VB350 and VB370A
- Barco ClickShare Bar (Pro)
- Maxhub Xbar U50/V50/W70
- Biamp Parlé ABC 2500(a), VBC 2500(a)/2800 and SBC 2
- Lenovo ThinkSmart One

For detailed compatibility with specific models or mounting sizes, please refer to the online manual.

Neomounts AV80-500BL. Product type: Videobar mount, Mounting type: Floor, Panel mounting interface: 200 x 200,200 x 300,200 x 400,300 x 900,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x.... Width: 35.4" (900 mm), Depth: 14.3" (362 mm), Height: 49.8" (1264 mm). Package width: 14.8" (376 mm), Package depth: 28.6" (727 mm), Package height: 3.7" (94 mm). Master (outer) case net weight: 41 lbs (18.6 kg), Master (outer) case width: 8.07" (205 mm), Master (outer) case length: 29.4" (747 mm)

Product type	Videobar mount
Mounting type	Floor
Panel mounting interface	200 x 200,200 x 300,200 x 400,300 x 900,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 600,440 x 400,460 x 640,500 x 500,500 x 400,600 x 300,600 x 200,600 x 400,600 x 500,600 x 600,680 x 300,700 x 400,800 x 200,800 x 400,800 x 450,800 x 500,800 x 600
Minimum screen size	43"
Maximum screen size	110"
Maximum weight capacity	22 lbs (10 kg)
Height adjustment range	0 - 2.17" (0 - 55 mm)
Depth adjustment range	28.7 - 48.4" (730 - 1230 mm)
Cable management	Yes
Product color	Black
Housing material	Steel
Minimum VESA mount	7.87 x 7.87" (200 x 200 mm)
Maximum VESA mount	31.5 x 23.6" (800 x 600 mm)
Warranty period	5 year(s)
Country of origin	China
Width	35.4" (900 mm)
Depth	14.3" (362 mm)
Height	49.8" (1264 mm)
Package width	14.8" (376 mm)
Package depth	28.6" (727 mm)
Package height	3.7" (94 mm)
Master (outer) case net weight	41 lbs (18.6 kg)
Master (outer) case width	8.07" (205 mm)
Master (outer) case length	29.4" (747 mm)
Master (outer) case height	15.6" (396 mm)
Master (outer) case weight	50 lbs (22.7 kg)
Quantity per master (outer) case	2 pc(s)
Harmonized System (HS) code	7326909890
