AV60-500BL

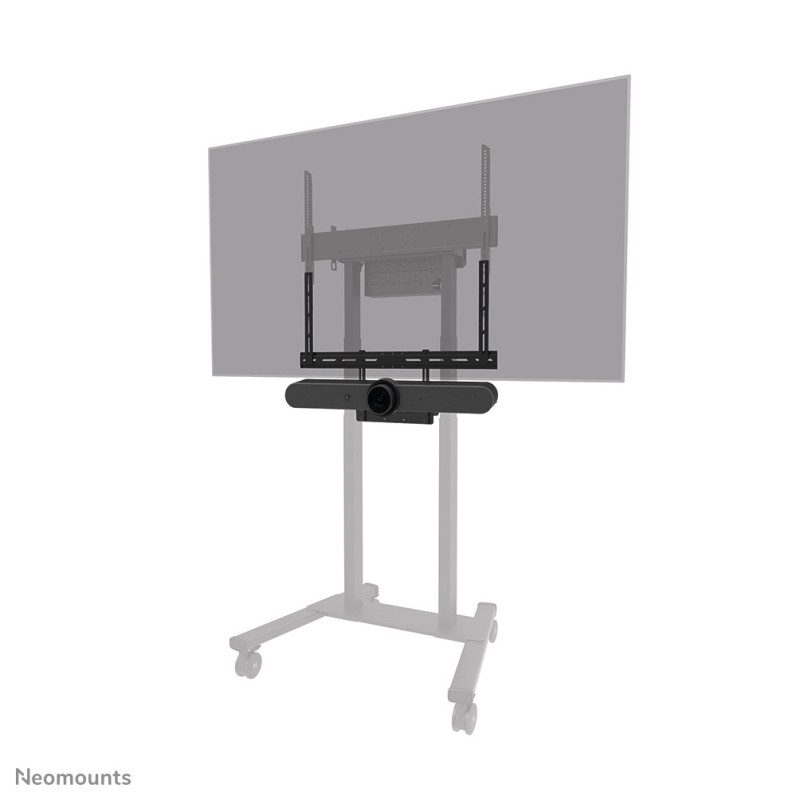

The Neomounts AV60-500BL is a universal videobar and laptop shelf kit designed for 43" displays and larger, supporting VESA hole patterns from 200x200 up to 800x600 mm. Built for durability and versatility, the kit supports devices up to 8 kg and can be installed either above or below the screen. The included laptop shelf carries up to 2,5 kg providing a smart solution for laptops, notebooks, tablets or extra equipment. Both the videobar/laptop support and the backplate brackets are height-adjustable, offering maximum flexibility.

Compatible with most* videobars, PTZ cameras, and soundbars, including Logitech Rally speakers, the AV60-500BL ensures broad applicability. The mounting holes allow width and height variation, while the VESA frame adjusts in both height and width (200/400/600/800). The kit is compatible with both wall and floor mounts. Despite its versatility, installation is straightforward, aided by ruler-guided alignment for a seamless fit.

* The AV60-500BL is truly universal, compatible with any videobar that fits within the bracket?s range (see line drawing). It is also specially designed for the following models:

- Bose Professional VB1 and VB-S
- Neat Bar (gen 1, gen 2) and Bar Pro
- Poly Studio USB, Studio R30/X30/X32, Studio X50/X52/V52, Studio X70/X72/V72 and Studio V12
- Jabra Panacast 40/50
- Logitech Meetup, Meetup 2, Rally Bar, Rally Bar Mini, Rally Bar Huddle and Rally Plus
- Cisco Webex Room Kit Plus
- Yealink MSpeaker II, MeetingBar A30/A40/A50, UVC20/UVC30 Room/UVC34/UVC40 and MeetingEye 400/600
- AVer VB350 and VB370A
- Barco ClickShare Bar (Pro)
- Maxhub Xbar U50/V50/W70 and UC S05/S07/S10/S10 Pro/S15
- Predia Connect Camera
- Biamp Parlé ABC 2500(a), VBC 2500(a)/2800 and SBC 2
- Lenovo ThinkSmart One

For detailed compatibility with specific models or mounting sizes, please refer to the online manual.

Neomounts AV60-500BL. Product type: Videobar mount, Panel mounting interface: 200 x 200,200 x 300,200 x 400,400 x 200,400 x 300,400 x 400,400 x 600,600 x 300,600 x 200,600 x..., Minimum screen size: 43". Width: 35.4" (900 mm), Depth: 17.1" (434 mm), Height: 25.2" (640 mm). Package width: 10.2" (260 mm), Package depth: 37.7" (958 mm), Package height: 3.43" (87 mm). Master (outer) case net weight: 32.6 lbs (14.8 kg), Master (outer) case width: 7.52" (191 mm), Master (outer) case length: 38.5" (978 mm)

Product type	Videobar mount
Panel mounting interface	200 x 200,200 x 300,200 x 400,400 x 200,400 x 300,400 x 400,400 x 600,600 x 300,600 x 200,600 x 400,600 x 500,600 x 600,800 x 800,800 x 200,800 x 400,800 x 450,800 x 500,800 x 600
Minimum screen size	43"
Maximum screen size	110"
Maximum weight capacity	17.6 lbs (8 kg)
Number of displays supported	1
Height adjustment range	0 - 2.17" (0 - 55 mm)
Product color	Black
Housing material	Steel
Minimum VESA mount	7.87 x 7.87" (200 x 200 mm)
Maximum VESA mount	31.5 x 23.6" (800 x 600 mm)
Warranty period	5 year(s)
Country of origin	China
Width	35.4" (900 mm)
Depth	17.1" (434 mm)
Height	25.2" (640 mm)
Weight	16.3 lbs (7.4 kg)
Package width	10.2" (260 mm)
Package depth	37.7" (958 mm)
Package height	3.43" (87 mm)
Master (outer) case net weight	32.6 lbs (14.8 kg)
Master (outer) case width	7.52" (191 mm)
Master (outer) case length	38.5" (978 mm)
Master (outer) case height	11" (280 mm)
Master (outer) case weight	41.4 lbs (18.8 kg)
Quantity per master (outer) case	2 pc(s)
Harmonized System (HS) code	7326909890
