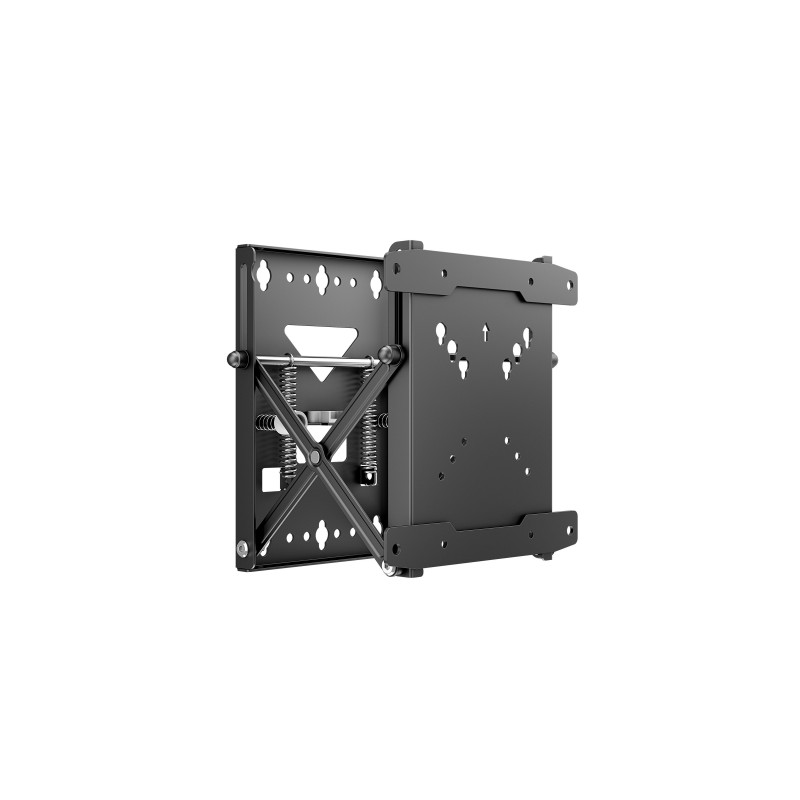

The M Public Video Wall Mount Push X Small 200 might just be one of the markets most innovative and easy to install small size video wall mounts available. With a simple installation and its ingenious scissors “in and out” solution post installation possibilities and after very simple afterservice is possible. Creating an in wall or just close to wall installation for various needs.

With the market for Small size Video Wall installations growing at a fantastic pace, the need for a high quality, affordable and installer friendly mounting equipment has become in the need by many. Our M Public Video Wall Mount Push X Small 200 is a video a wall solution quick to install, and easy to configure. Made especially for applications where a small display with easy access for service is needed. This is a professional mount focusing on single or multiple screen installations, easy and fast installation and simplified maintenance. Making it an installers dream.

Easy-access to your after-service
The "Pop out" feature gives easy-access to any display for quick serviceability. This is often one of the major functions needed when building a video wall mounting solution or when integrating a single screen into the wall. Simply push against the screen to release the lock, then the screen will pop out, you do not need to remove any other screens to access a center screen for maintenance or when placed in recessed areas. The pop out feature is handled by its scissor arm construction expanding out. Of course the screen is as easily pushed back into place after maintenance is finished.

Landscape or portrait mounting

The M Public Video Wall Mount Push X Small 200 can be configured with a dislay in landscape or portrait position.

X Small but Heavy Duty
The M Public Video Wall Mount Push X Small 200 is an iron structure with epoxy painting, holding screens up to 18kg in "pop outed" position. We think this may just be the strongest small size video wall mount on the market, making continues service and usage of the mounts easy.

M Public Video Wall series is proudly made in EU

Multibrackets 5636. Type: Fixed, Product color: Black, Housing material: Steel. Maximum weight capacity: 39.7 lbs (18 kg), Maximum screen size: 43", Mounting type: Wall. Width: 9.88" (251 mm), Depth: 2.91" (74 mm), Height: 11.7" (298 mm). Package width: 11.8" (300 mm), Package depth: 11.8" (300 mm), Package height: 7.87" (200 mm)

Type	Fixed
Product color	Black
Housing material	Steel
Anti-theft function	Yes
Cable management	Yes
Distance to the wall (min)	2.91" (7.4 cm)
Distance to the wall (max)	8.62" (21.9 cm)
Maximum weight capacity	39.7 lbs (18 kg)
Maximum screen size	43"
Mounting type	Wall
Minimum VESA mount	1.97 x 1.97" (50 x 50 mm)
Maximum VESA mount	7.87 x 7.87" (200 x 200 mm)
Minimum screen size	13"
Panel mounting interface	50 x 50,75 x 75,100 x 100,200 x 200
Number of displays supported	1
Width	9.88" (251 mm)
Depth	2.91" (74 mm)
Height	11.7" (298 mm)
Weight	8.09 lbs (3.67 kg)
Aluminium content weight	0 oz (0 g)
Steel content weight	8.09 lbs (3.67 kg)
Other metals content weight	0 oz (0 g)
Package width	11.8" (300 mm)
Package depth	11.8" (300 mm)
Package height	7.87" (200 mm)
Package weight	8.82 lbs (4 kg)
Quantity per pack	1 pc(s)
Paper/cardboard packaging weight	10.6 oz (300 g)
Metal packaging weight	0 oz (0 g)
Plastic packaging weight	1.06 oz (30 g)
