7350105216107

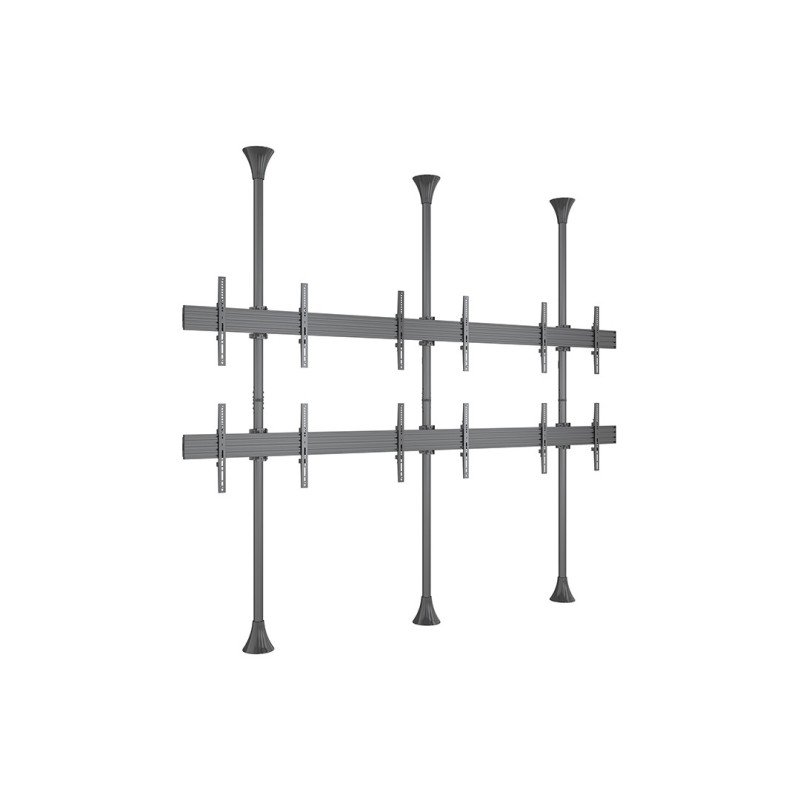

Multibrackets Pro Series M Floor to Ceiling Mount Pro MBFC3UX2 is a signage solution - ready to be installed.

The professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install and simple to maintain. Developed together with installers we added close to unlimited flexibility and versatility. Based on the Pro Series ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and create an esthetic result worth the public eye.

With its modular construction installers can tailor the M Floor to Ceiling Mount Pro MBFC3UX2 with the clients need in mind. Possibilities to change, update and reconfigure its design and if ideas change over time Pro Series can follow
The M Floor to Ceiling Mount Pro MBFC3UX2 creates a rock steady screen display solution aimed for the retail store, mall or any other public area. 50mm black, brass or chrome tubes can be tailored to fit the environment the unit is positioned in. Mount screens with tilt or fixed displays. Place them side by side and/or above each other.

This M Floor to Ceiling Mount series was designed with our Scandinavian heritage in mind and provides a clean Nordic look where each part and detail is made as simple as can be and still service its function. The result a sleek Nordic solution emphasizing quality and function by design and its material choices throughout the entire solution. Widely used in a variety of environments the unit can also be mounted floor to wall via a wall bracket accessory uniquely constructed to hold the pipe connected to the wall.

Our Pro Series includes hardware so that a basic installation should not be a hassle. The Pro Series possibilities to extend tubes and add details by choice is so vast that one can tailor each solution to its location and needed function.


Multibrackets Pro Series Public Floor to Ceiling Mount ideal for any large screen digital signage application

Multibrackets 6107. Maximum weight capacity: 396.8 lbs (180 kg), Minimum screen size: 40", Maximum screen size: 65", Minimum VESA mount: 3.94 x 3.94" (100 x 100 mm), Maximum VESA mount: 23.6 x 15.7" (600 x 400 mm). Product color: Black

Number of displays supported	6
Maximum weight capacity (per display)	66.1 lbs (30 kg)
Maximum screen size	65"
Mounting type	Floor
Maximum weight capacity	396.8 lbs (180 kg)
Minimum VESA mount	3.94 x 3.94" (100 x 100 mm)
Maximum VESA mount	23.6 x 15.7" (600 x 400 mm)
Minimum screen size	40"
Height adjustment	Yes
Height adjustment type	Manual
Cable management	Yes
Ceiling mounting tube length (min)	22.8" (58 cm)
Ceiling mounting tube length (max)	61" (155 cm)
Product color	Black
Housing material	Aluminum, Steel
Weight	124.8 lbs (56.6 kg)
Aluminium content weight	33.5 lbs (15.2 kg)
Steel content weight	124.8 lbs (56.6 kg)
Other metals content weight	0 oz (0 g)
Package weight	132.3 lbs (60 kg)
Mounting kit	Yes
Orientation	Landscape/Portrait
Compliance certificates	CE
Paper/cardboard packaging weight	7.05 lbs (3.2 kg)
Metal packaging weight	0 oz (0 g)
Plastic packaging weight	5.29 oz (150 g)
Sustainability compliance	Yes
