7350105218200

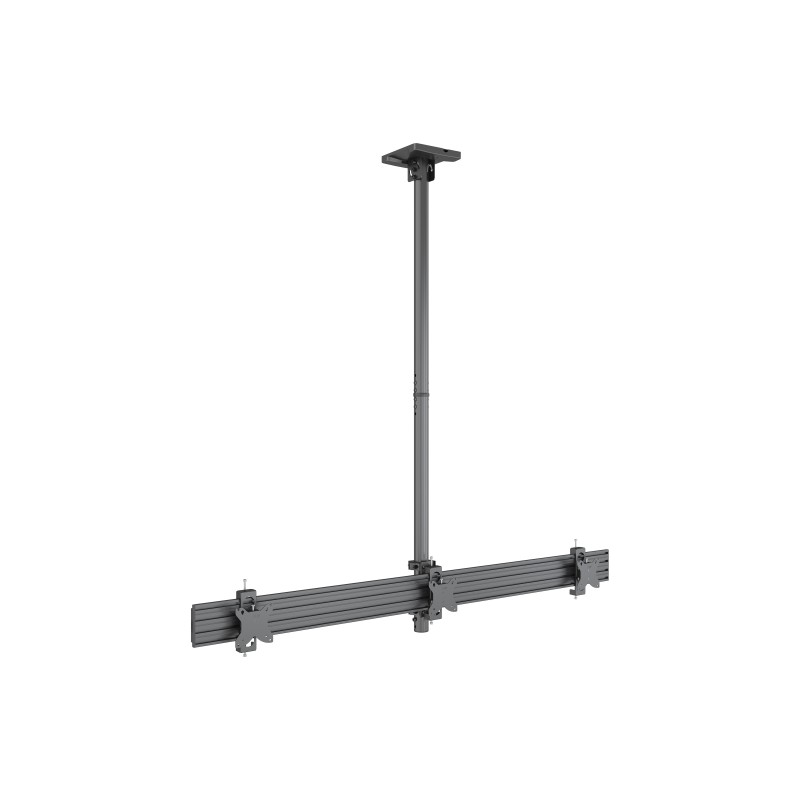

Multibrackets M Ceiling Mount Pro MBC3U VESA 75/100 is our innovative - ready to be installed Triple Side-Display Ceiling Mount.

The new professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install, and simple to maintain. Working closely with installers we created a range with close to unlimited flexibility. This model is no exception. The product provides the versatility and flexibility demanded by installers. Based upon the Pro Series strong and ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and creating an esthetic result worth the public eye.





With its modular construction installers have vast possibilities to change, update and reconfigure its design if ideas change over time then Pro Series can follow.

Designed with our Scandinavian heritage in mind and providing a clean Nordic look each part and detail serves its purpose. The result is a sleek Nordic solution emphasizing quality and function. Used in a variety of environments this ceiling mount is truly versatile and is made of the highest quality materials.

The Pro Series possibilities to extend pipes and add details by individual choice is vast so that one can tailor each mount to its location and function. The Pro Series includes hardware so that a basic installation should not be a hassle.

Multibrackets Pro Series Public Ceiling Mounts is ideal for any large screen digital signage ceiling application.

HighlightsA professional, flexible and modular product
Integrated cable management throughout the entire solution
Power click install for an easy, fast and safe installation
Ceiling plate included
Portrait or landscape position of screen possible
Hardware kit included

Multibrackets 8200. Maximum weight capacity: 66.1 lbs (30 kg), Minimum screen size: 15", Maximum screen size: 32", Minimum VESA mount: 2.95 x 2.95" (75 x 75 mm), Maximum VESA mount: 3.94 x 3.94" (100 x 100 mm). Tilt angle range: -12 - 12°. Product color: Black

Number of displays supported	3
Maximum weight capacity (per display)	22 lbs (10 kg)
Maximum screen size	32"
Mounting type	Ceiling
Maximum weight capacity	66.1 lbs (30 kg)
Minimum VESA mount	2.95 x 2.95" (75 x 75 mm)
Maximum VESA mount	3.94 x 3.94" (100 x 100 mm)
Minimum screen size	15"
Tilt angle range	-12 - 12°
Swiveling	No
Angle of rotation	360°
Cable management	Yes
Rotating	Yes
Tilt adjustment	Yes
Product color	Black
Housing material	Aluminum, Steel
Width	41.1" (1045 mm)
Depth	5.59" (142 mm)
Height	7.87" (200 mm)
Weight	26.7 lbs (12.1 kg)
Aluminium content weight	8.82 lbs (4 kg)
Steel content weight	26.7 lbs (12.1 kg)
Other metals content weight	0 oz (0 g)
Package weight	28.7 lbs (13 kg)
Quantity per pack	1 pc(s)
Mounting kit	Yes
Orientation	Landscape/Portrait
Paper/cardboard packaging weight	28.2 oz (800 g)
Metal packaging weight	0 oz (0 g)
Plastic packaging weight	4.94 oz (140 g)
