7350105216398

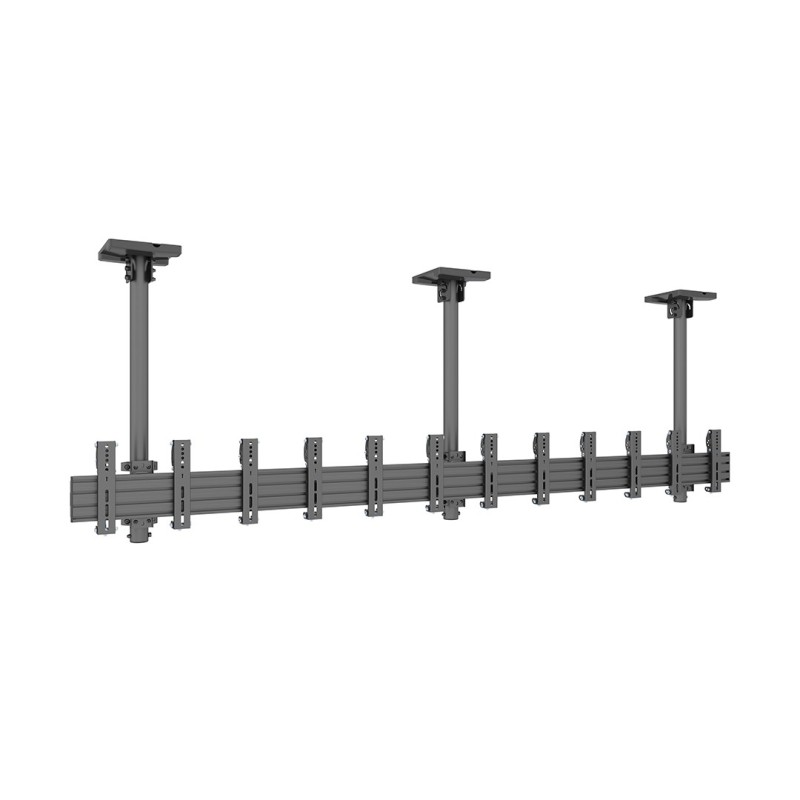

The M Menu Board Mount Pro MBC6X1U VESA 200 is our 6 screen side by side menuboard system - ready to be installed.

The professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install and simple to maintain. Developed together with installers we added close to unlimited flexibility and versatility. Based on the Pro Series ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and create an esthetic result worth the public eye.

With its modular construction installers can tailor with the clients need in mind. Possibilities to change, update and reconfigure its design and if ideas change over time Pro Series can follow.

The M Menu Board Mount Pro MBC6X1U VESA 200 creates a seamless mounting surface through the aluminum rail. The tilted mounting of the displays allow all 6 displays to be placed side by side in portrait and tilted at the same angle with ease creating alignment and true menuboard perfection.

Designed with our Scandinavian heritage in mind Pro Series provides a clean Nordic look where each part and detail is made as simple as can be and still service its function. Possible to use in a variety of environments our Pro Series Menuboards are truly versatile. The Pro Series possibilities to extend pipes and add details by individual choice is vast so that one can tailor each mount to its location and function. With included hardware kit a basic installation should not be a hassle.

Multibrackets Pro Series Menuboards is simply ideal for any large screen digital signage application.

Multibrackets 6398. Maximum weight capacity: 396.8 lbs (180 kg), Minimum screen size: 27", Maximum screen size: 32", Minimum VESA mount: 2.95 x 2.95" (75 x 75 mm), Maximum VESA mount: 7.87 x 7.87" (200 x 200 mm). Tilt angle range: 0 - 15°. Product color: Black

Number of displays supported	6
Maximum weight capacity (per display)	66.1 lbs (30 kg)
Maximum screen size	32"
Mounting type	Ceiling
Maximum weight capacity	396.8 lbs (180 kg)
Minimum VESA mount	2.95 x 2.95" (75 x 75 mm)
Maximum VESA mount	7.87 x 7.87" (200 x 200 mm)
Minimum screen size	27"
Panel mounting interface	75 x 75,100 x 100,100 x 200,200 x 100,200 x 200
Tilt angle range	0 - 15°
Cable management	Yes
Ceiling mounting tube length (min)	22.8" (58 cm)
Ceiling mounting tube length (max)	29.5" (75 cm)
Tilt adjustment	Yes
Product color	Black
Housing material	Aluminum, Steel
Weight	58.2 lbs (26.4 kg)
Aluminium content weight	19.4 lbs (8.8 kg)
Steel content weight	58.2 lbs (26.4 kg)
Other metals content weight	0 oz (0 g)
Package width	41.1" (1045 mm)
Package depth	15.7" (400 mm)
Package height	7.09" (180 mm)
Package weight	61.7 lbs (28 kg)
Quantity per pack	1 pc(s)
Mounting kit	Yes
Orientation	Portrait
Paper/cardboard packaging weight	3.31 lbs (1.5 kg)
Metal packaging weight	0 oz (0 g)
Plastic packaging weight	3.17 oz (90 g)
