561075

Name: 561075
Brand: Intellinet
SKU: 2468600
Price: 68.2 CHF
Availability: BackOrder

Brand Intellinet

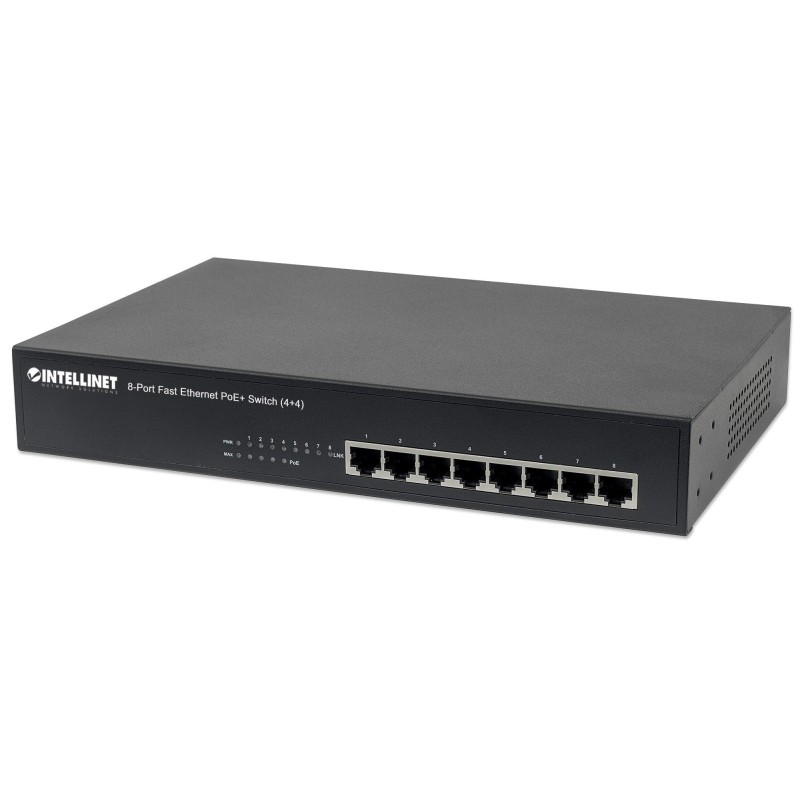

Intellinet 561075, Unmanaged, Fast Ethernet (10/100), Full duplex, Power over Ethernet (PoE), Rack mounting

CHF68.2

Tax included

CHF63.1 Tax excluded

Delayed delivery

Quantity

Will be ordered for you

Description
Product Details

Description

Save installation time and money with PoE. _x000D_
_x000D_
The Intellinet Network Solutions 8-Port Fast Ethernet PoE+ Switch (561075) is designed to pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with eight Fast Ethernet ports (four of which support 802.3at/af PoE/PoE+), this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds of up to 100 Mbps. _x000D_
_x000D_
Power over Ethernet 802.3at _x000D_
The Intellinet Network Solutions 8-Port Fast Ethernet PoE+ Switch supports the IEEE 802.3at protocol and is designed to inject up to 30 watts of power per port*. IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimising the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short-circuit, overload and high-voltage protection function, your equipment is well protected. For devices that are not 802.3at/af compliant (legacy wireless access points or network cameras), we suggest use of an Intellinet Network Solutions PoE/PoE+ Splitter. _x000D_
_x000D_
_x000D_
* Total PoE budget for this switch is 70 watts. Per-port average power distribution is 17.5 watts; maximum per-port power usage cannot exceed 30 watts.

Intellinet 561075. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 2000 entries, Switching capacity: 1.6 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting

Switch type	Unmanaged
Control and Provisioning of Wireless Access Points (CAPWAP)	Yes
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Power connector	AC-in jack
Networking standards	IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Cable types supported	Cat3, Cat4, Cat5
Full duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
MAC address table	2000 entries
Switching capacity	1.6 Gbit/s
Forwarding rate	0.1488 Mpps
Store-and-forward	Yes
Packet forwarding rate (100 Mbps)	148800 pps
Packet forwarding rate (10 Mbps)	14880 pps
Rack mounting	Yes
Product color	Black
Housing material	Metal
LED indicators	Activity, PoE, Power
Buffer size	768 KB
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	80 W
Power protection features	Over voltage, Overload, Short circuit
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	4
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	70 W
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Width	11" (280 mm)
Depth	7.05" (179 mm)
Height	1.73" (44 mm)
Weight	3.31 lbs (1.5 kg)
Cables included	AC
Manual	Yes
Rack mount kit	Yes
Mounting brackets included	Yes
Certification	FCC A, CE
Harmonized System (HS) code	85176990

Product Details

Availability date: 2025-12-05

Condition New

Data sheet

Product color: Black
Weight: 3.31 lbs (1.5 kg)
Harmonized System (HS) code: 85176990
AC input frequency: 50 - 60 Hz
Width: 11" (280 mm)
Height: 1.73" (44 mm)
AC input voltage: 100 - 240 V
Certification: FCC A, CE
Depth: 7.05" (179 mm)
LED indicators: Activity, PoE, Power
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -10 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Cables included: AC
Auto MDI/MDI-X: Yes
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Manual: Yes
Housing material: Metal
Power consumption (max): 80 W
Mounting brackets included: Yes
Switch type: Unmanaged
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Power connector: AC-in jack
Full duplex: Yes
Switching capacity: 1.6 Gbit/s
Forwarding rate: 0.1488 Mpps
Store-and-forward: Yes
Packet forwarding rate (100 Mbps): 148800 pps
Power over Ethernet (PoE): Yes
Cable types supported: Cat3, Cat4, Cat5
Rack mounting: Yes
Installed SFP modules quantity: 0
Installed SFP+ modules quantity: 0
Flow control support: Yes
MAC address table: 2000 entries
Power over Ethernet plus (PoE+) ports quantity: 4
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 70 W
Power protection features: Over voltage, Overload, Short circuit
Packet forwarding rate (10 Mbps): 14880 pps
Rack mount kit: Yes
Buffer size: 768 KB
Control and Provisioning of Wireless Access Points (CAPWAP): Yes
