Description
Save Installation Time and Money with PoE _x000D_

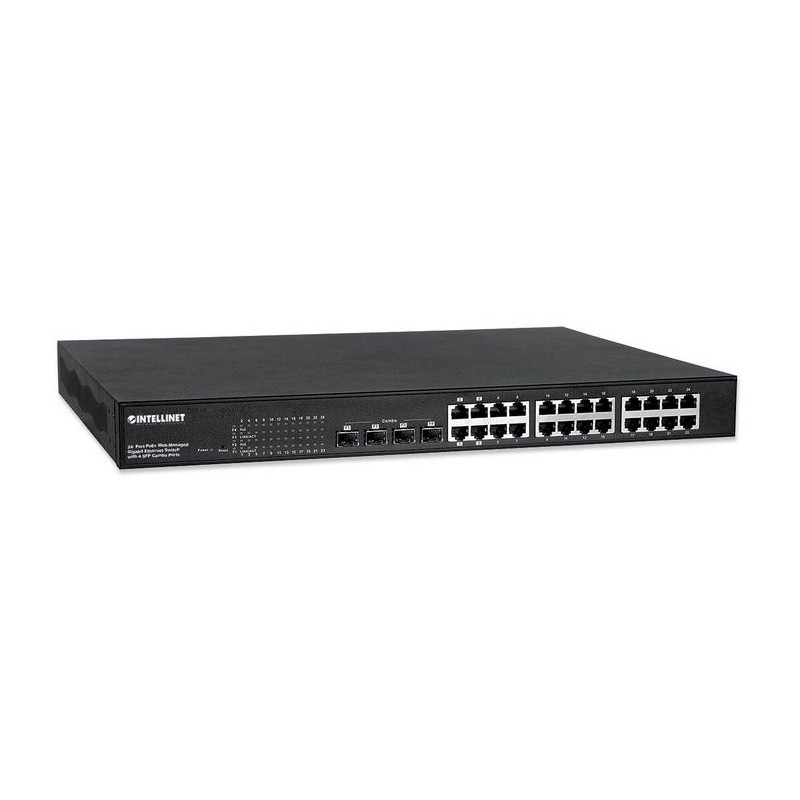

The Intellinet Network Solutions 24-Port Gigabit Ethernet PoE+ Web-Managed Switch with 4 SFP Combo Ports (561372) is designed to pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with 24 Gigabit Ethernet ports, all of which support 802.3at/af Power over Ethernet (PoE/PoE+), this switch can power wireless LAN access points and bridges, VoIP (Voice over Internet Protocol) telephones, IP surveillance cameras and more while delivering network speeds of up to 1000 Mbps. _x000D_
_x000D_
Power over Ethernet 802.3at _x000D_
The Intellinet Network Solutions 24-Port Gigabit Ethernet PoE+ Web-Managed Switch with 4 SFP Combo Ports supports the IEEE 802.3at protocol and is designed to inject up to 30 watts of power per port*. IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimising the unsightly clutter caused by power supplies and adapters. Any mix of PoE and non-PoE devices is supported, and thanks to its short circuit, overload and high-voltage protection function, your equipment is well-protected. For devices that are not 802.3at/af compliant (legacy wireless access points or network cameras), we suggest the use of an Intellinet Network Solutions PoE/PoE+ Splitter. _x000D_
_x000D_
Eliminate Bottlenecks With Gigabit Speeds _x000D_
Equipped with 24 auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports, the 24-Port Gigabit Ethernet PoE+ Web-Managed Switch with 4 SFP Combo Ports offers plenty of performance for your computers, servers and other networking devices. in addition, four shared, combo, small, form-factor, pluggable GBIC module slots (SFP) provide fibre connectivity for greater distances. _x000D_
_x000D_
Web-Management _x000D_
This PoE switch is equipped with an impressive array of advanced management functions that allow you to be in full control over your network. The 24-Port Gigabit Ethernet PoE+ Web-Managed Switch with 4 SFP Combo Ports supports VLAN, port aggregation, QoS, port mirroring, SNMP V1 and the popular SNMP V2c, just to name a few. _x000D_
_x000D_
_x000D_
* Total PoE budget for this switch is 430 watts. Per-port average power distribution is 17.9 watts; maximum per-port power usage cannot exceed 30 watts.
The Intellinet Network Solutions 24-Port Gigabit Ethernet PoE+ Web-Managed Switch with 4 SFP Combo Ports (561372) is designed to pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with 24 Gigabit Ethernet ports, all of which support 802.3at/af Power over Ethernet (PoE/PoE+), this switch can power wireless LAN access points and bridges, VoIP (Voice over Internet Protocol) telephones, IP surveillance cameras and more while delivering network speeds of up to 1000 Mbps. _x000D_
_x000D_
Power over Ethernet 802.3at _x000D_
The Intellinet Network Solutions 24-Port Gigabit Ethernet PoE+ Web-Managed Switch with 4 SFP Combo Ports supports the IEEE 802.3at protocol and is designed to inject up to 30 watts of power per port*. IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimising the unsightly clutter caused by power supplies and adapters. Any mix of PoE and non-PoE devices is supported, and thanks to its short circuit, overload and high-voltage protection function, your equipment is well-protected. For devices that are not 802.3at/af compliant (legacy wireless access points or network cameras), we suggest the use of an Intellinet Network Solutions PoE/PoE+ Splitter. _x000D_
_x000D_
Eliminate Bottlenecks With Gigabit Speeds _x000D_
Equipped with 24 auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports, the 24-Port Gigabit Ethernet PoE+ Web-Managed Switch with 4 SFP Combo Ports offers plenty of performance for your computers, servers and other networking devices. in addition, four shared, combo, small, form-factor, pluggable GBIC module slots (SFP) provide fibre connectivity for greater distances. _x000D_
_x000D_
Web-Management _x000D_
This PoE switch is equipped with an impressive array of advanced management functions that allow you to be in full control over your network. The 24-Port Gigabit Ethernet PoE+ Web-Managed Switch with 4 SFP Combo Ports supports VLAN, port aggregation, QoS, port mirroring, SNMP V1 and the popular SNMP V2c, just to name a few. _x000D_
_x000D_
_x000D_
* Total PoE budget for this switch is 430 watts. Per-port average power distribution is 17.9 watts; maximum per-port power usage cannot exceed 30 watts.
- Provides power and data connection for up to 24 PoE network devices
- Save installation costs by delivering data and power over existing network cables
- 10/100/1000 Mbps auto-sensing ports automatically detect optimal network speeds
- Four small form-factor pluggable GBIC module slots (SFP)
- IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
- Power output up to 30 watts per port*
- PoE power budget of 430 watts
- Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras)
- The Powered Device Monitor feature (PDM) restarts any connected PoE device that fails to respond or send out network traffic.
- Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
- All RJ45 ports equipped with Auto-MDIX and auto-negotiation support
- Web-based configuration
- Remote Reboot/restart
- Supports SNMP management
- Supports VLAN (tag-based and port-based)
- Supports link aggregation (trunking)
- IGMP Snooping for multicast filtering
- Supports bandwidth control per port
- Supports port mirroring
- Supports two types of QoS: IEEE 802.1p and DSCP
- Broadcast storm control with multicast packet rate settings
- Supports jumbo frames up to 9.6 kBytes
- Supports Rapid Spanning Tree/Spanning Tree Protocol
- Store and forward switching architecture
- Full/half duplex operation
- IEEE 802.3x flow control for full duplex
- Supports 8k MAC address entries
- 500 kBytes buffer memory
- LEDs for power, link/activity and PoE
- Two high-volume cooling fans ensure perfect ventilation
- Includes 19" rackmount brackets
- Three-Year Warranty
Specifications
Data transmission
| Jumbo frames | 9600 |
| Jumbo frames support | Yes |
| MAC address table | 8000 entries |
| Packet buffer memory | 0.5 MB |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Store-and-forward | Yes |
| Switching capacity | 48 Gbit/s |
Design
| Certification | FCC A, CE |
| Housing material | Metal |
| LED indicators | Activity/Link/PoE/Power |
| Number of fans | 2 fan(s) |
| Product colour | Black |
| Rack mounting | Yes |
Management features
| Control and Provisioning of Wireless Access Points (CAPWAP) | Yes |
| Quality of Service (QoS) support | Yes |
| Switch type | Managed |
| Web-based management | Yes |
Multicast features
| Multicast support | Yes |
Network
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Copper ethernet cabling technology | 100BASE-TX/10BASE-T |
| Flow control support | Yes |
| Full duplex | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1w/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x |
| Port mirroring | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Virtual LAN features | Port-based VLAN/Tagged VLAN |
| VLAN support | Yes |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 85 °C |
Packaging data
| Cables included | AC |
| Manual | Yes |
| Rack mount kit | Yes |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 4 |
| Power connector | AC-in jack |
Power
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 90 - 240 V |
| Power consumption (max) | 500 W |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 300 W |
Security
| IGMP snooping | Yes |
| Security algorithms | SNMP |
Vendor information
| Brand Name | Intellinet |
| Warranty | 1 |
Product Details
2025-12-04
New
Data sheet
- Auto MDI/MDI-X
- Yes
- Packet forwarding rate (1 Gbps)
- 1488000 pps
- Virtual LAN features
- Port-based VLAN/Tagged VLAN
- Broadcast storm control
- Yes
- Jumbo-Rahmen
- 9600
- MAC-Adresstabelle
- 8000 Eintragungen
- Unterstützung für Jumbo-Frames
- Yes
- Anzahl Fans
- 2 Lüfter
- Gestellmontage
- Yes
- Schaltertyp
- Managed
- Webbasierte Verwaltung
- Yes
- Multicast-Unterstützung
- Yes
- Kupfer-Ethernet-Verkabelungstechnologie
- 100BASE-TX/10BASE-T
- Link-Aggregation
- Yes
- Netzwerkstandards
- IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1w/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x
- Spanning-Tree-Protokoll
- Yes
- Unterstützung der Flusskontrolle
- Yes
- Anzahl Combo-SFP-Ports
- 4
- Grundlegende Anzahl von RJ-45-Ethernet-Ports
- 24
- Grundlegender Switching-RJ-45-Ethernet-Porttyp
- Gigabit Ethernet (10/100/1000)
- Anzahl der Power over Ethernet Plus (PoE+) Ports
- 24
- Gesamtbudget für Power over Ethernet (PoE)
- 300 W
- Stromversorgung über Ethernet (PoE)
- Yes
- IGMP-Schnüffelei
- Yes
- Quality of Service (QoS)-Unterstützung
- Yes
- Paketpufferspeicher
- 0.5 MB
- Speichern und weiterleiten
- Yes
- Portspiegelung
- Yes
- Ratenbegrenzung
- Yes
- Rack-Montage-Kit
- Yes
- Breaking capacity
- 48 Gbit/s
- LED-Anzeigen
- Activity/Link/PoE/Power
- Handbuch
- Yes
- Kabel enthalten
- AC
- Zertifizierung
- FCC A, CE
- AC-Eingangsfrequenz
- 50 - 60 Hz
- AC-Eingangsspannung
- 90 - 240 V
- Sicherheitsalgorithmen
- SNMP
- Stecker
- AC-in jack
- Vollduplex
- Yes
- Stromverbrauch (max.)
- 500 W
- 10G-Unterstützung
- No
- VLAN-Unterstützung
- Yes
- Gehäusematerial
- Metal
- Brand Name
- Intellinet
- Warranty
- 1
- Betriebstemperatur (TT)
- 0 - 40 °C
- Lagertemperatur (TT)
- -20 - 85 °C
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 10 - 90 %
- Produktfarbe
- Black
- Auto-Negotiation
- Yes
- Power over Ethernet (PoE)-Stromversorgung pro Port
- 30 W
- Paketweiterleitungsrate (10 Mbps)
- 14880 pps
- Paketweiterleitungsrate (100 Mbps)
- 148800 pps
- Control and Provisioning of Wireless Access Points (CAPWAP)
- Yes
Specific References
- ISBN
- 978-1-23456-789-0
- MPN
- 561372
