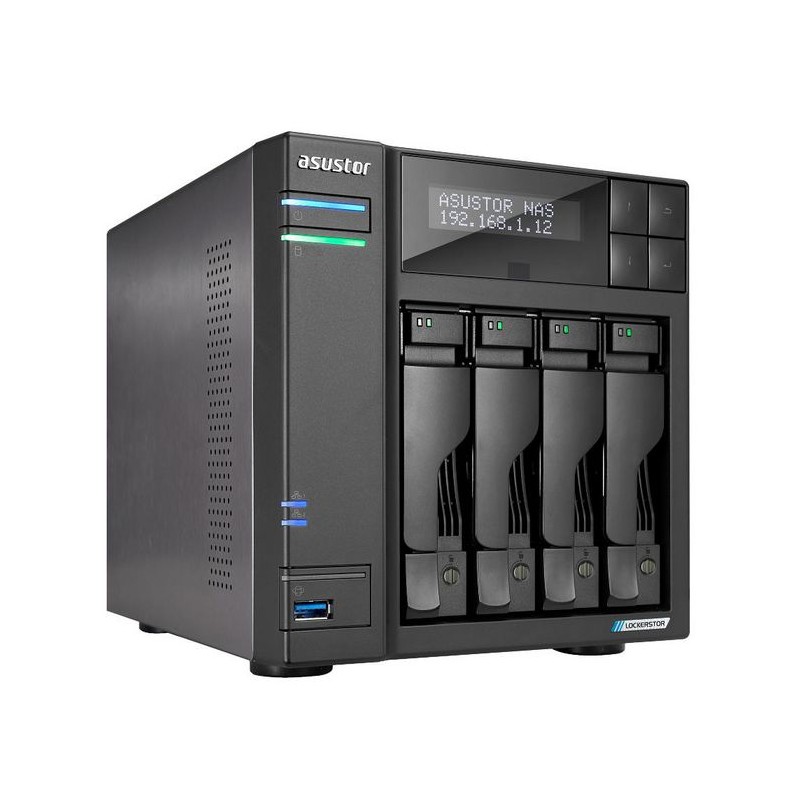

AS6704T
Intel Celeron N5105, 4GB SO-DIMM DDR4, 90W x1, 8GB eMMC, 1x HDMI 2.0b, 17.6dB, 100V to 240V AC
Description
Enthusiast-grade NAS with two, four or six bays
The LOCKERSTOR Gen2 series of NAS devices come with the all-new Quad-Core Intel Celeron N5105 CPU featuring Intel 10 nm technology. Intel’s Jasper Lake Celeron CPUs bring up to 31% extra performance over the previous generation of Celeron CPUs. The LOCKERSTOR Gen2 is flexible. Install up to four M.2 SSDs or a 10-Gigabit Ethernet card in the available PCI Express slot for maximum performance.
The LOCKERSTOR Gen2 uses DDR4-2933 and super-fast 2.5-Gigabit Ethernet which makes content creation even easier than ever before.
Unleashed Potential
Supports Premiere Pro & Final Cut Pro
Easily collaborate with anyone, anywhere.
Adobe Creative Cloud data backup and version control
Stream YouTube and/or Twitch videos with rebroadcasting and live recording functionality
CPU
Intel’s newest N5105 Quad-Core CPU comes with Intel 10 nm technology and up to 31% increased performance over Gemini Lake SoCs. The N5105 is clocked at 2.0 GHz with a boost of up to 2.9 GHz, enabling efficient content creation with the added flexibility of 10-Gigabit Ethernet upgrades.
Keeping Cool
With up to four SSDs, a considerable amount of heat can be generated. With extra ventilation, the Lockerstor Gen2 ensures that all components in your NAS receive cooling.
USB 3.2 Gen 2x1 – A First for ASUSTOR
The Lockerstor Gen2 series now support USB 3.2 Gen 2x1 for the first time on an ASUSTOR NAS. Enjoy up to double the performance compared with USB 3.2 Gen1 at up to 10 Gbps.
Four M.2 Slots
The Lockerstor Gen2 series of NAS devices come with four M.2 slots for caching or storage or both. Either use all slots for one purpose or mix and match depending on your needs.
Also Supports 10-Gigabit Ethernet
The PCIe slot in the Lockerstor Gen2 series is no longer proprietary and now accepts 10-Gigabit Ethernet cards for maximum flexibility.
The LOCKERSTOR Gen2 series of NAS devices come with the all-new Quad-Core Intel Celeron N5105 CPU featuring Intel 10 nm technology. Intel’s Jasper Lake Celeron CPUs bring up to 31% extra performance over the previous generation of Celeron CPUs. The LOCKERSTOR Gen2 is flexible. Install up to four M.2 SSDs or a 10-Gigabit Ethernet card in the available PCI Express slot for maximum performance.
The LOCKERSTOR Gen2 uses DDR4-2933 and super-fast 2.5-Gigabit Ethernet which makes content creation even easier than ever before.
Unleashed Potential
Supports Premiere Pro & Final Cut Pro
Easily collaborate with anyone, anywhere.
Adobe Creative Cloud data backup and version control
Stream YouTube and/or Twitch videos with rebroadcasting and live recording functionality
CPU
Intel’s newest N5105 Quad-Core CPU comes with Intel 10 nm technology and up to 31% increased performance over Gemini Lake SoCs. The N5105 is clocked at 2.0 GHz with a boost of up to 2.9 GHz, enabling efficient content creation with the added flexibility of 10-Gigabit Ethernet upgrades.
Keeping Cool
With up to four SSDs, a considerable amount of heat can be generated. With extra ventilation, the Lockerstor Gen2 ensures that all components in your NAS receive cooling.
USB 3.2 Gen 2x1 – A First for ASUSTOR
The Lockerstor Gen2 series now support USB 3.2 Gen 2x1 for the first time on an ASUSTOR NAS. Enjoy up to double the performance compared with USB 3.2 Gen1 at up to 10 Gbps.
Four M.2 Slots
The Lockerstor Gen2 series of NAS devices come with four M.2 slots for caching or storage or both. Either use all slots for one purpose or mix and match depending on your needs.
Also Supports 10-Gigabit Ethernet
The PCIe slot in the Lockerstor Gen2 series is no longer proprietary and now accepts 10-Gigabit Ethernet cards for maximum flexibility.
- Quad-Core 10 nm Intel Celeron N5105 CPU - 31% more performance over Gemini Lake
- Superfast 2.5-Gigabit Ethernet ports
- Flexible PCIe slot for 10GbE NICs or M.2 SSDs
- Supports PCIe 3.0 SSDs for up to twice the performance of PCIe 2.0
- Uses DDR4-2933 with 40% more performance
- USB 3.2 Gen2 ports – 10Gbps speed
- Enjoy, download, upload and stream content with 4K transcoding
- Increased ventilation for SSDs
- Supports Wake on LAN and Wake on WAN
Specifications
Design
| Built-in display | Yes |
| Chassis type | Desktop |
| Cooling type | Active |
| Display type | LCD |
| Fan diameter | 12 cm |
| LED indicators | Yes |
| Number of fans | 1 fan(s) |
| Product colour | Black |
Memory
| Flash memory | 8000 MB |
| Internal memory | 4 GB |
| Internal memory type | DDR4 |
| Maximum RAM supported | 16 GB |
| Memory clock speed | 2933 MHz |
| Memory form factor | SO-DIMM |
| Memory slots | 2 |
Network
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100/1000/2500 Mbit/s |
| iSCSI support | Yes |
| Jumbo frames support | Yes |
| Supported network protocols | CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog |
| Wake-on-LAN ready | Yes |
Operational conditions
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | 0 - 40 °C |
Performance
| Access Control List (ACL) | Yes |
| Backup features | Cloud |
| Backup function | Yes |
| Browser supported | Firefox, Chrome, Safari, Microsoft Edge |
| Device class | Home & Home Office |
| Noise level | 17.6 dB |
| Number of users | 4096 user(s) |
| S.M.A.R.T. support | Yes |
| System log | Yes |
| Type | NAS |
| Universal Plug and Play (UPnP) | Yes |
| Web-based management | Yes |
Ports & interfaces
| Concurrent connections | 512 |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB port | Yes |
Power
| AC input voltage | 100 - 240 V |
| Power consumption (sleep) | 0.88 W |
| Power consumption (typical) | 35 W |
| Power supply location | External |
| Power supply unit (PSU) capacity | 90 W |
Processor
| CPU configuration (max) | 1 |
| On-board graphics card model | Intel® UHD Graphics |
| Processor cache | 4 MB |
| Processor cores | 4 |
| Processor family | Intel® Celeron® N |
| Processor frequency | 2 GHz |
| Processor manufacturer | Intel |
| Processor model | N5105 |
Processor special features
| Enhanced Intel SpeedStep Technology | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Trusted Execution Technology | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
Software
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.7 Lion/Mac OS X 10.8 Mountain Lion/Mac OS X 10.9 Mavericks/Mac OS X 11.0 Big Sur/Mac OS X 12.0 Monterey |
| Operating system installed | ADM |
| Operating system version | 4.1 Onwards |
| Server operating systems supported | Windows Server 2003/Windows Server 2008/Windows Server 2012/Windows Server 2016/Windows Server 2019 |
| Windows operating systems supported | Yes |
Storage
| Installed storage drive type | No |
| Number of M.2 (M & B) slots | 4 |
| Number of storage drives installed | 0 |
| Number of storage drives supported | 4 |
| RAID levels | 0/1/10/5/6/JBOD |
| RAID support | Yes |
| Storage drive capacity | 0 GB |
| Storage drive sizes supported | 2.5/3.5/M.2 " |
| Storage drives installed | No |
| Supported file systems | BTRFS/exFAT/ext3/ext4/FAT32/HFS+/NTFS |
| Supported storage drive interfaces | M.2/Serial ATA |
| Supported storage drive types | HDD & SSD |
| Total installed storage capacity | 0 TB |
Vendor information
| Brand Name | asustor |
| Warranty | 3 |
Product Details
20 Items
New
Data sheet
- Flash memory
- 8000 MB
- iSCSI support
- Yes
- Number of storage drives installed
- 0
- Total installed storage capacity
- 0 TB
- Installed storage drive type
- No
- Number of M.2 (M & B) slots
- 4
- Supported file systems
- BTRFS/exFAT/ext3/ext4/FAT32/HFS+/NTFS
- Device class
- Home & Home Office
- Backup function
- Yes
- System log
- Yes
- Dynamic DNS (DDNS)
- Yes
- Concurrent connections
- 512
- Unterstützung für Jumbo-Frames
- Yes
- Anzahl Fans
- 1 Lüfter
- Webbasierte Verwaltung
- Yes
- Ethernet-LAN-Datenraten
- 100/1000/2500 Mbit/s
- Zugriffskontrollliste (ACL)
- Yes
- Betriebssystem installiert
- ADM
- Integriertes Grafikkartenmodell
- Intel® UHD Graphics
- Prozessorkerne
- 4
- Prozessormodell
- N5105
- Anzahl der HDMI-Anschlüsse
- 1
- Ethernet-LAN-Anschlüsse (RJ-45)
- 2
- Prozessorfrequenz
- 2 GHz
- Speicherformfaktor
- SO-DIMM
- Kühltyp
- Active
- LED-Anzeigen
- Yes
- Geräuschpegel
- 17.6 dB
- USB-Anschluss
- Yes
- Ethernet-LAN
- Yes
- Unterstützte Netzwerkprotokolle
- CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog
- AC-Eingangsspannung
- 100 - 240 V
- Stromverbrauch (typisch)
- 35 W
- CPU-Konfiguration (max.)
- 1
- Prozessor-Cache
- 4 MB
- Prozessorfamilie
- Intel® Celeron® N
- Intel -Virtualisierungstechnologie (VT-x)
- Yes
- Intel -Virtualisierungstechnologie für Directed I/O (VT-d)
- Yes
- Intel Trusted-Execution-Technologie
- No
- Intel VT-x mit erweiterten Seitentabellen (EPT)
- Yes
- Verbesserte Intel SpeedStep-Technologie
- Yes
- Wake-on-LAN bereit
- Yes
- Unterstützte Server-Betriebssysteme
- Windows Server 2003/Windows Server 2008/Windows Server 2012/Windows Server 2016/Windows Server 2019
- Prozessorhersteller
- Intel
- Ruhezustände
- Yes
- Lüfterdurchmesser
- 12 cm
- Intel
- Yes
- Fahrgestelltyp
- Desktop
- Speicherplätze
- 2
- RAID-Unterstützung
- Yes
- Anzahl der unterstützten Speicherlaufwerke
- 4
- Unterstützte Speicherlaufwerksgrößen
- 2.5/3.5/M.2 "
- SMART-Unterstützung
- Yes
- Unterstützte Speicherlaufwerkstypen
- HDD & SSD
- Eingebautes Display
- Yes
- Unterstützte Mac-Betriebssysteme
- Mac OS X 10.7 Lion/Mac OS X 10.8 Mountain Lion/Mac OS X 10.9 Mavericks/Mac OS X 11.0 Big Sur/Mac OS X 12.0 Monterey
- Anzeigetyp
- LCD
- Interner Speichertyp
- DDR4
- Speichertaktfrequenz
- 2933 MHz
- HDMI-Version
- 2.0b
- Typ
- NAS
- Brand Name
- asustor
- Warranty
- 3
- Betriebstemperatur (TT)
- 0 - 40 °C
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 5 - 95 %
- Unterstützte Linux-Betriebssysteme
- Yes
- Unterstützte Windows-Betriebssysteme
- Yes
- Interner Speicher
- 4 GB
- RAID-Level
- 0/1/10/5/6/JBOD
- Unterstützte Speicherlaufwerkschnittstellen
- M.2/Serial ATA
- Produktfarbe
- Black
- Anzahl der Nutzer
- 4096 Benutzer
- Browser unterstützt
- Firefox, Chrome, Safari, Microsoft Edge
- Stromverbrauch (Ruhezustand)
- 0.88 W
- Ort der Stromversorgung
- External
- Betriebssystemversion
- 4.1 Onwards
- Anzahl USB 3.2 Gen 2 (3.1 Gen 2) Typ-A Anschlüsse
- 2
- Kapazität des Netzteils (PSU).
- 90 W
- Kapazität des Speicherlaufwerks
- 0 GB
- Speicherlaufwerke installiert
- No
- Universelles Plug-and-Play (UPnP)
- Yes
- Maximum unterstützter Arbeitsspeicher
- 16 GB
- Sicherungsfunktionen
- Cloud
Specific References
- UPC
- 887372901612
- MPN
- AS6704T
16 other products in the same category:
Reference: HDDVIFM8IN
Brand: StarTech.com
HDDVIFM8IN
StarTech.com HDDVIFM8IN, 7.99" (0.203 m), HDMI Type A (Standard), DVI-D, Female, Male, Straight
CHF32.4
tax incl.
CHF30.0
tax excl.
In stock
Brand: Case Logic
CSGE2177G
Case Logic SnapView 2.0 10.1", Folio, Samsung, Galaxy Tab 4 10.1, 10.1", 8.82 oz (250 g)
CHF47.9
tax incl.
CHF44.3
tax excl.
In stock
Brand: Multibrackets
7350105214264
M VESA Gas Lift Arm Basic Pole - Mounting kit ( articulating arm, desk clamp mount ) for displays - aluminum - black - VESA: 75/100 - screen size: 15" - 34"
CHF315.9
tax incl.
CHF292.2
tax excl.
Will be ordered for you
Reference: W128255425
Brand: Arctic
ACFAN00138A
ARCTIC P14 PWM PST Value Pack, Fan, 5.51" (14 cm), 200 RPM, 1700 RPM, 0.3 sone, 123.76 m³/h
CHF126.4
tax incl.
CHF116.9
tax excl.
Will be ordered for you
CHF80.3
tax incl.
CHF74.3
tax excl.
Will be ordered for you
Reference: W128780623
Brand: Case Logic
3203948
Case Logic Reflect REFPC-116 Dark Blue, Sleeve case, 15.6", 10.9 oz (310 g)
CHF198.7
tax incl.
CHF183.8
tax excl.
In stock
CHF31.7
tax incl.
CHF29.3
tax excl.
Will be ordered for you
Intel Celeron N5105, 4GB SO-DIMM DDR4, 90W x1, 8GB eMMC, 1x HDMI 2.0b, 17.6dB, 100V to 240V AC
