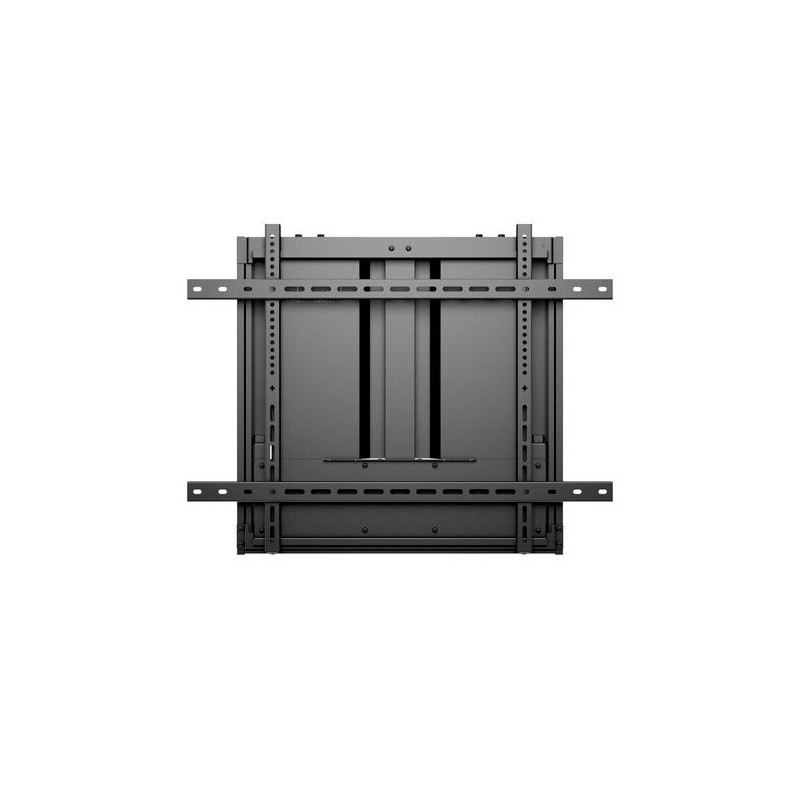

It’s never been this easy to move a large size display or touch screen up and down. Made to fit most public environments and perfect in meeting rooms, and other educational. Introducing the M Counterbalanced Wallmount 40-60kg is designed to provide assisted lifting force and mid-span balancing, allowing safety and usability for any user in front of a large size display.
The M Counterbalanced Wallmount a Dynamic Height adjustable TV Wallmount for Interactive display panel allows users to raise and lower large displays with only a light effort to varied vertical positions. With a vertical movement range of 400mm the M Counterbalanced Wallmount is the perfect wallmount for schools using interactive displays where small children need to reach the interactive panel. The flexible movement a lets you set the height depensing om situation and audience. Faster and easier than traditional electric mounts with no power required.
Using high quality details and components this M Counterbalanced Wallmount HD 40-60 kg will be servicing you for a long time. Tested under rigorous conditions with weights well over the max level and with a frequency not adaptive for normal conditions this unit will be servicing your needs for a very long time. The Multibrackets is very clever making it possible to have a very good flexibility in height yet the screen does not build to far from the wall. Supporting a wide range of VESA specifications it can hold near any large screen the market has to offer. It is ideal for use anywhere where a screen needs to be height adjustable or where there is a crowd that might be sitting and/ or standing.
Features effortless up and down movement of a display
Neutralizes the weight of the screen
Fully smooth up and down motion and stopping
Holds securely in any position
Totally Quiet operation
Creates a weightless feeling
Completely maintenance free
Manufactured without compressed gases, oils and service schedules
Amazing finish stainless steel
Specifications
Design
Product colour
Black
Ergonomics
Height adjustment
Yes
Height adjustment range
0 - 400 mm
Height adjustment type
Manual
Mounting
Maximum screen size
75 "
Maximum VESA mount
800 x 600 mm
Maximum weight capacity
60 kg
Minimum screen size
55 "
Minimum VESA mount
200 x 200 mm
Mounting type
Wall
Number of displays supported
1
Panel mounting interface
200 x 200/300 x 200/300 x 300/400 x 200/400 x 300/400 x 400/600 x 400/700 x 400/800 x 400/800 x 500/800 x 600 mm
Technical details
Compliance certificates
CE
Metal packaging weight
25520 g
Paper/cardboard packaging weight
4040 g
Plastic packaging weight
200 g
Sustainability certificates
CE
Vendor information
Brand Name
Multibrackets
Warranty
1
Weight & dimensions
Aluminium content weight
24880 g
Other metals content weight
0 g
Steel content weight
640 g
Product Details
2026-01-08
New
Data sheet
Minimum VESA mount
7.87 x 7.87" (200 x 200 mm)
Schnittstelle für Schalttafeleinbau
200 x 200/300 x 200/300 x 300/400 x 200/400 x 300/400 x 400/600 x 400/700 x 400/800 x 400/800 x 500/800 x 600 mm
