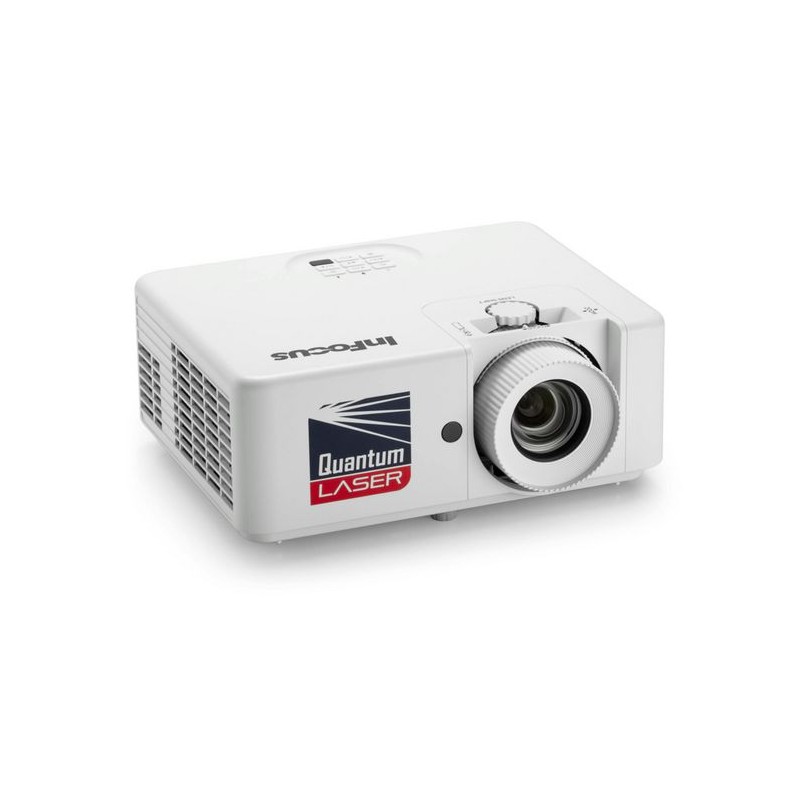

The Quantum Laser Nemesis II Series projectors are the perfect combination of energy efficiency and outstanding visual performance, offering brilliant brightness and deep contrast for applications that demand high-quality visuals. Ideal for corporate environments, houses of worship, exhibitions, museums, and art installations, it delivers stunning, immersive imagery with ultimate flexibility. With 360-degree projection, image correction capabilities, and an incredible lifespan, the Quantum Laser Nemesis II Series ensures flawless setup and adaptability in any space, making it the go-to solution for static and dynamic displays.
- Incredible Longevity with Virtually Maintenance-Free Operation
- True-to-Life Visuals for an Immersive and Compelling Visual Experience
- Seamless Integration Capabilities with Enhanced Connectivity Options
- 360 Degree And Portrait Projection
Specifications
Design
| Cable lock slot | Yes |
| Market positioning | Portable |
| Product colour | White |
| Product type | Standard throw projector |
Display
Features
| Certification | CB, CE, EAC, cTUVus, CCC, FCC, UKCA/WEEE, RoHS |
| International Protection (IP) code | IPX6 |
| Noise level | 32 dB |
Lens system
| Aperture range (F-F) | 2.5 - 3.26 |
| Focal length range | 20.91 - 32.62 mm |
| Focus | Manual |
| Offset | 112 % |
| Vertical lens shift range | 0 - 115 % |
| Zoom capability | Yes |
| Zoom ratio | 1.6:1 |
| Zoom type | Manual |
Light source
| Light source type | Laser |
| Service life of light source | 30000 h |
Multimedia
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 15 W |
Network
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Wi-Fi | No |
Operational conditions
| Operating altitude | 0 - 3048 m |
| Operating relative humidity (H-H) | 10 - 85 % |
| Operating temperature (T-T) | 5 - 40 °C |
| Storage relative humidity (H-H) | 10 - 85 % |
| Storage temperature (T-T) | -10 - 60 °C |
Packaging content
| AC adapter included | Yes |
| Cables included | AC/HDMI |
| Manual | Yes |
| Remote control included | Yes |
Ports & interfaces
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| DC-in jack | Yes |
| DVI port | No |
| HDMI ports quantity | 2 |
| HDMI version | 1.4 |
| Serial interface type | RS-232 |
| USB 2.0 Type-A ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Power
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 195 W |
| Power consumption (standby) | 2 W |
| Power consumption (typical) | 145 W |
| Power source | AC |
Projector
| Contrast ratio (dynamic) | 2000000:1 |
| Contrast ratio (typical) | 400000:1 |
| Horizontal synchronization (max) | 100 kHz |
| Horizontal synchronization (min) | 15 kHz |
| Keystone correction, horizontal | -30 - 30 ° |
| Keystone correction, vertical | -30 - 30 ° |
| Matrix size | 0.65 " |
| Native aspect ratio | 16:10 |
| Projection distance | 1 - 10 m |
| Projection technology | DLP |
| Projector brightness | 5000 ANSI lumens |
| Projector native resolution | WXGA (1280x800) |
| Supported aspect ratios | 16:10/16:9/4:3 |
| Uniformity | 85 % |
| Vertical synchronization (max) | 0.12 kHz |
| Vertical synchronization (min) | 0.024 kHz |
Storage
Vendor information
| Brand Name | Infocus |
| Warranty | 1 |
Video
| Full HD | No |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
