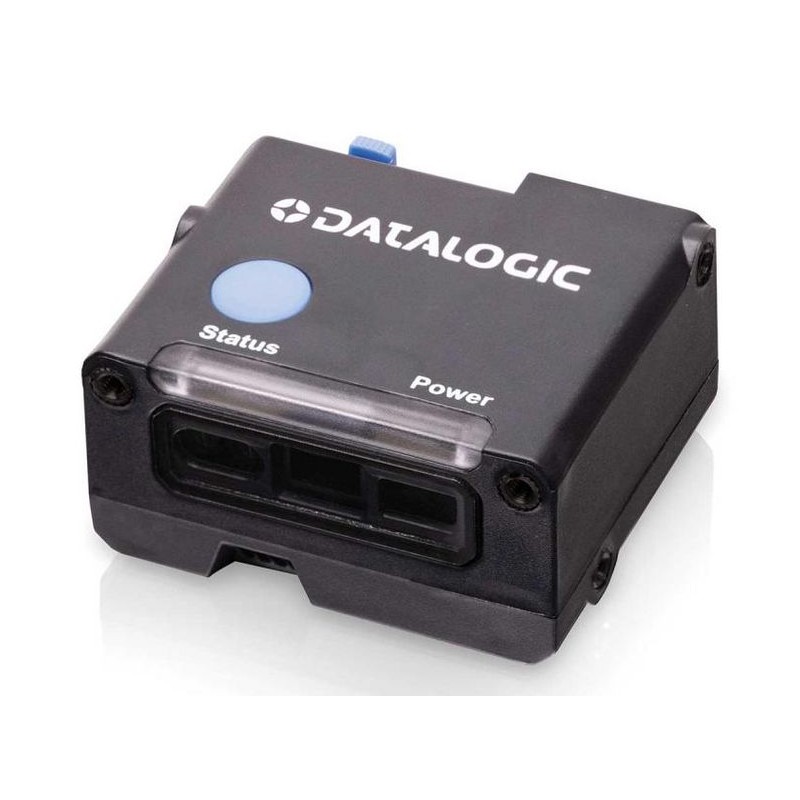

GFS4520-BKK1-RED

The Gryphon 4500 Fixed Series provides ready-to-use versatile solutions for kiosks and machine manufacturers. The GFS4500 module can be easily integrated with little effort in different enclosures from multiple sides with its small size and various fixing points.

The 'naked' version GFE4500 is ideal for tailor-made fully integrated solution.
The Gryphon 4500 Fixed Series 2D scan modules are made to last with a durable design for maximum uptime. You can rely on them for both indoor and outdoor applications with the IP54 sealing, the UV protected scratch resistant output window, the wide range of operating temperatures and the great resistance to accidental drops, shock, and vibrations. RS-232 and USB/RS-232 models have an integrated cable while the USB models are equipped with a locking clip to prevent the USB cable from coming loose or disconnecting. A 5-year factory warranty proves the Gryphon 4500 Fixed Series has been designed to last.

The Gryphon 4500 Fixed Series 2D scan modules feature the most advanced Megapixel sensor technology with distinctive red or white illumination technology with adjustable brightness for outstanding reading performance. The wide-angle optics allows snappy scanning of any 1D and 2D barcodes and it starts reading at almost contact while offering improved motion tolerance and first pass decoding of fast-moving codes. The speedy reading of tickets, boarding passes, loyalty cards, and coupons from mobile phone displays is possible because of the ultimate decoding algorithms you can count on.
Datalogic’s ‘Green Spot’ technology coupled with a high visibility top-front LED and integrated loud beeper with adjustable intensity provide superior good-read feedback.

GENERIC FEATURES
• Compact dimensions for easy installation and simple integration
• Wide angle 1 MP optics for superior scanning and Depth of Field
• Advanced motion tolerance optics for first pass reading of any moving barcode
• Automatic sensing, software, external, manual trigger options available
• Datalogic distinctive red or white illumination technology with adjustable brightness
• Intuitive Blue Dot LED aimer for easier targeted scanning
• Superior good-read feedback (Datalogic’s ‘Green Spot’ technology, high visibility top-front LED and integrated beeper with adjustable intensity)
• Omnidirectional reading of 1D, 2D and postal codes plus stacked, composite codes and dot codes; Digital Watermarks on red illumination models
• Image capture and document scanning capabilities
• USB, RS-232, USB/RS-232 communication options
• 1 Digital input plus 1 Digital output software programmable (available on specific models)
• Water and Particulate Sealing Rating: IP54
• Disinfectant-Ready enclosure withstands cleaning with harsh disinfectant solutions
• EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI.
