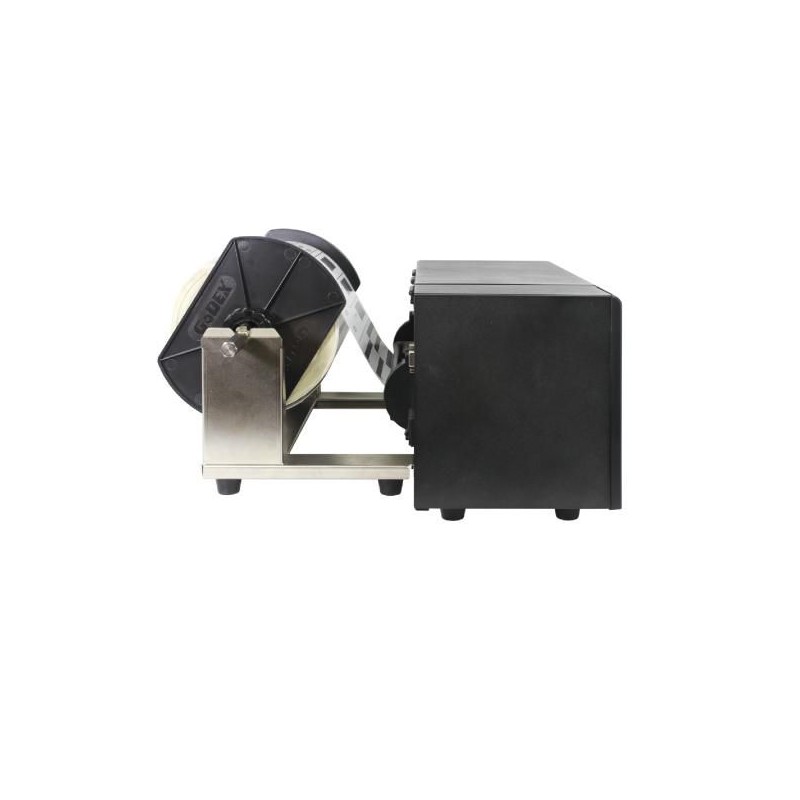

HD830I

Name: GoDEX HD830I
Brand: GoDEX
SKU: 2178202
Price: 2839.7 CHF
Availability: BackOrder

Brand GoDEX

3.2” LCD, 300 dpi (12 dots/mm), 32-bit RISC CPU, USB 2.0 (B-Type), RS-232 (DB-9), IEEE 802.3 10/100 Base-Tx Ethernet port (RJ-45), USB Host (A-Type)

CHF2,839.7

Tax included

CHF2,626.9 Tax excluded

Delivery in several days

Quantity

Will be ordered for you

Documents et médias

Documents 2

leaflet .pdf

Product Brochure

Télécharger

manual pdf .pdf

User manual

Télécharger

Vidéos 2

video/mp4

Voir la vidéo

video/mp4

Voir la vidéo

Description
Product Details

Description

The best-in-class eight inch wide industrial barcode printer. Perfect for wide format labels.
The HD830i is a rugged printer of exquisite design which includes significant characteristics of high performance electronics, reliable mechanism, user -friendliness and easy maintenance design.

- 3.2” color touchscreen facilitates intuitive navigation. Adjustable to 15°.
- Dual-Colored status LEDs and calibration button for simplicity.
- Robust metal casing and solid print mechanism to take on heavy duty jobs
- Outstanding breadth: max label width 10”/ Max print width 8.64”.
- Optional wireless connectivity: Bluetooth or Wi-Fi module
- Top cover designed for ease of motion: heightened safety and comfort.
- A sturdy external label stand for up to 10” roll diameters included.
- Adjustable media detectors: including reflective and see-through sensors
- Advanced adaptive dampening technology : to optimize print quality
- Internal Media Pressure plate is designed to stabilize the label printing process.

Specifications

Design

Built-in display	Yes
Colour display	Yes
Control type	Buttons/Touch
Display	LCD
Display diagonal	3.2 "
Product colour	Black

Operational conditions

Operating relative humidity (H-H)	20 - 85 %
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Storage temperature (T-T)	-20 - 60 °C

Paper handling

Autocutter	Yes
Core diameter	2.54 cm
Maximum label width	22 cm
Maximum roll diameter	6.8 cm
Media thickness	0.05 - 0.25 mm
Ribbon length	300 m
Ribbon width	11 cm

Performance

Bitmap fonts	OCR-A/OCR-B
Built-in barcodes	AZTECCODE/China post/Code 11/Code 39/Code 49/Code 93/Code-128 Codabar Library/Data Matrix/Deutsche Post Identcode/EAN128/EAN13/EAN8/GS1 COMPOSITE/GS1 DataBar/Industrial 2/5/Interleaved 2/5/MaxiCode/MicroPDF417/PDF417/QR Code/TLC39
Built-in processor	Yes
Flash memory	128 MB
Image formats supported	BMP/PCX
Internal memory	32 MB
Page description languages	EZPL/GDPL/GEPL/GZPL

Ports & interfaces

Bluetooth	Yes
Connectivity technology	Wireless
Ethernet LAN	Yes
RS-232 ports	1
USB 2.0 ports quantity	4
USB port	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11b/802.11g/Wi-Fi 4 (802.11n)

Power

AC input frequency	50/60 Hz
AC input voltage	220 - 240 V

Printing

Maximum print height	101.6 cm
Maximum printing width	21.95 cm
Minimum print length	2.54 cm
Number of printable dots	12 dot
Print speed	4 lpm
Print speed	102 mm/sec
Print technology	Direct thermal / Thermal transfer
Printing colours	Black
Rotated printing	Yes
Text style	Bold/Italic/Underline
Vertical printing	Yes

Vendor information

Brand Name	GoDEX
Warranty	1

Product Details

Availability date: 2026-03-09

Condition New

Data sheet

Image formats supported: BMP/PCX
Color display: Yes
Flash memory: 128 MB
Anzahl der USB 2.0-Anschlüsse: 4
Tape length: 300 m
Print speed: 102 mm/sek
Maximum printing width (columns): 21.95 cm
Font styles: EZPL/GDPL/GEPL/GZPL
Minimum print length: 2.54 cm
Vertical printing: Yes
Text style: Bold/Italic/Underline
Core diameter: 2.54 cm
Bluetooth: Yes
Wi-Fi: Yes
Anzeige: LCD
USB-Anschluss: Yes
Ethernet-LAN: Yes
Wi-Fi-Standards: 802.11b/802.11g/Wi-Fi 4 (802.11n)
Konnektivitätstechnologie: Wireless
AC-Eingangsfrequenz: 50/60 Hz
AC-Eingangsspannung: 220 - 240 V
Bandbreite: 11 cm
Drucktechnologie: Direct thermal / Thermal transfer
Eingebauter Prozessor: Yes
Farben drucken: Black
Eingebautes Display: Yes
Diagonale anzeigen: 3.2 "
Brand Name: GoDEX
Warranty: 1
Betriebstemperatur (TT): 5 - 40 °C
Lagertemperatur (TT): -20 - 60 °C
Relative Luftfeuchtigkeit bei Lagerung (HH): 10 - 90 %
Relative Luftfeuchtigkeit im Betrieb (HH): 20 - 85 %
Interner Speicher: 32 MB
Produktfarbe: Black
Steuerungstyp: Buttons/Touch
RS-232-Anschlüsse: 1
Maximum Rollendurchmesser: 6.8 cm
Mediendicke: 0.05 - 0.25 mm
Eingebaute Barcodes: AZTECCODE/China post/Code 11/Code 39/Code 49/Code 93/Code-128 Codabar Library/Data Matrix/Deutsche Post Identcode/EAN128/EAN13/EAN8/GS1 COMPOSITE/GS1 DataBar/Industrial 2/5/Interleaved 2/5/MaxiCode/MicroPDF417/PDF417/QR Code/TLC39
Gedrehter Druck: Yes
Autocutter: Yes
Druckbare Punktnummern: 12 dot
Maximum Druckhöhe: 101.6 cm
Maximum Etikettenbreite: 22 cm
Bitmap fonts: OCR-A/OCR-B
