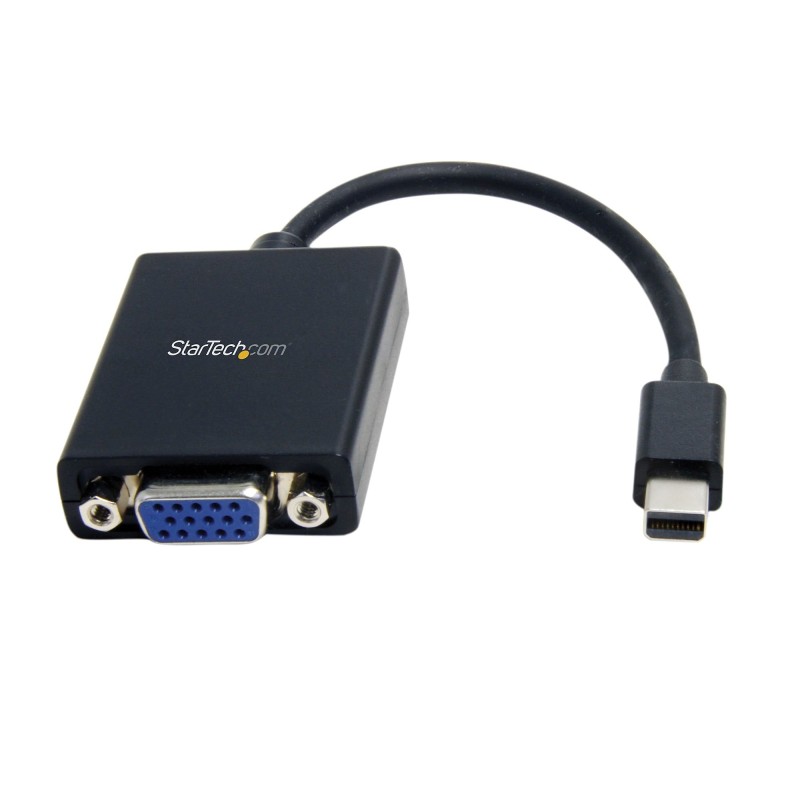

MDP2VGA

Connect your VGA monitor to a Mini DisplayPort equipped computer

This Mini DisplayPort to VGA adapter lets you connect your mDP computer to a VGA monitor or projector. The adapter works with Mini DisplayPort computers like your Ultrabook™ or any Microsoft® Surface™ Pro devices equipped with mDP.

Easily connect your Mini DisplayPort computer to a VGA display

The mDP to VGA adapter lets you connect your Mini DisplayPort laptop, desktop or tablet to a VGA display. The adapter is compatible with mDP ports as well as Thunderbolt 1 and Thunderbolt 2 I/O ports, and supports plug-and-play connectivity ensuring a hassle-free setup.

Works with legacy VGA monitors

The Mini DisplayPort adapter makes your mDP computer fully compatible with existing VGA monitors or projectors in your home or around your office. The VGA connector features nuts that mate with the screws on standard VGA cables, to ensure your video cable won’t get disconnected.

Designed for maximum portability

The Mini DisplayPort to VGA converter maximizes portability with a compact, lightweight design, making it the perfect travel accessory to carry with your Surface Pro or Ultrabook, fitting easily into your laptop bag or carrying case. This ultra-portable design makes this adapter perfect for BYOD (Bring Your Own Device) applications at the office.

Crystal-clear picture quality

With support for video resolutions up to 1920x1200 or 1080p, you’ll be surprised at the picture quality the adapter provides, even when connected to a legacy VGA monitor, projector or television. The adapter harnesses the video capabilities built into your mDP connection to deliver every detail in stunning high-definition.

The MDP2VGA is backed by a 3-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage


StarTech.com MDP2VGA. Cable length: 5.12" (0.13 m), Connector 1: Mini DisplayPort, Connector 2: VGA (D-Sub). Compliance certificates: RoHS, CE. Weight: 0.988 oz (28 g), Width: 1.4" (35.6 mm), Depth: 7.28" (185 mm). Package width: 7.87" (200 mm), Package depth: 8.66" (220 mm), Package height: 0.236" (6 mm). Master (outer) case width: 6.65" (169 mm), Master (outer) case length: 9.84" (250 mm), Master (outer) case height: 4.45" (113 mm)

Cable length	5.12" (0.13 m)
Connector 1	Mini DisplayPort
Connector 2	VGA (D-Sub)
Connector 1 gender	Male
Connector 2 gender	Female
Connector 1 form factor	Straight
Connector 2 form factor	Straight
DisplayPort version	1.2
Maximum resolution	1920 x 1200 pixels
Supported video modes	720p, 1080p
HBR2 support	Yes
Product color	Black
Plug and Play	Yes
Converter type	Active video converter
Compliance certificates	RoHS, CE
Weight	0.988 oz (28 g)
Width	1.4" (35.6 mm)
Depth	7.28" (185 mm)
Height	0.748" (19 mm)
Package width	7.87" (200 mm)
Package depth	8.66" (220 mm)
Package height	0.236" (6 mm)
Package weight	1.31 oz (37 g)
Harmonized System (HS) code	84733080
Master (outer) case width	6.65" (169 mm)
Master (outer) case length	9.84" (250 mm)
Master (outer) case height	4.45" (113 mm)
Quantity per master (outer) case	120 pc(s)
