N2-M2-SSD-DUPLICATOR

Clone M.2 NVMe drives without a host computer, or access the drives when connected to a computer via USB

Perform bidirectional cloning between M.2 NVMe and 2.5/3.5" SATA SSDs/HDDs without a computer, using this M.2 NVMe to SATA Drive Duplicator. The standalone sector-by-sector duplication supports SATA III (6Gbps) and works with any file format.

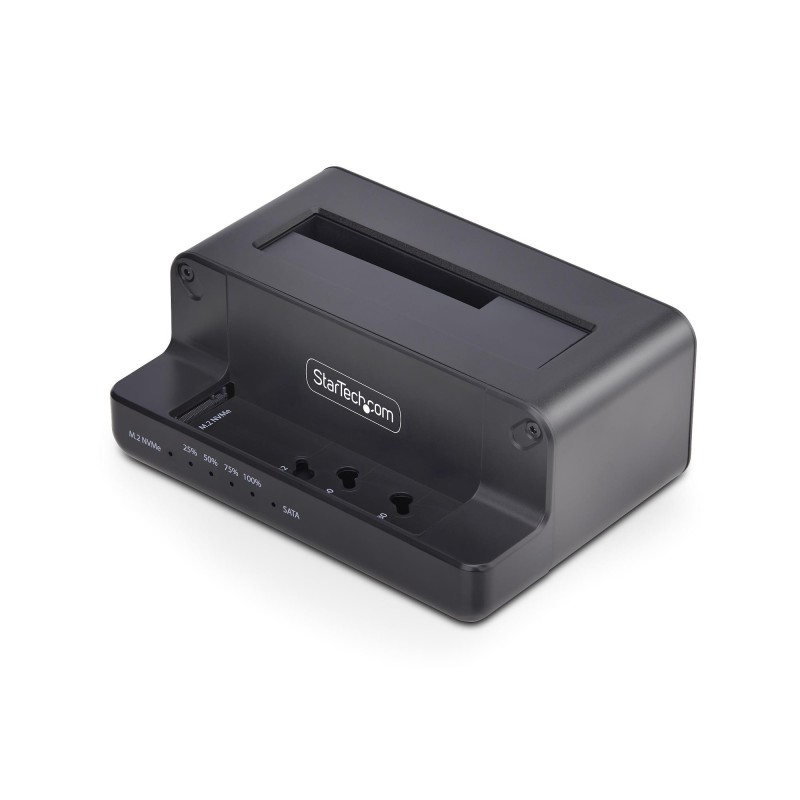

Standalone M.2 NVMe to SATA Cloner Dock

Clone an M.2 NVMe drive to a 2.5"/3.5" SATA SSD/HDD or vice versa. This solution is ideal for hardware upgrades, system imaging, or routine maintenance. The Duplicator Dock supports 2240, 2260, and 2280 M.2 NVMe sizes and fits all standard SATA drives, seamlessly combining both legacy and modern storage solutions.

External Drive Access over USB-C

The USB 3.2 Gen 2 (10Gbps) host connection provides external access to both M.2 NVMe and SATA drives, facilitating data transfer between systems without the need to install the drives internally.

Compact Form Factor

The Standalone M.2 NVMe to 2.5/3.5in SATA Cloner is portable and minimizes desk space usage. It enables instant data backup, and is ideal for IT Professionals when troubleshooting on-site, with the ability to re-image and re-deploy M.2 NVMe and SATA SSDs/HDDs without the need for a dedicated cloning station.

The SSD Cloner Dock features a top-loading design to promote passive airflow for consistent temperatures during peak performance. The Standalone Duplicator supports 4Kn sector size, TRIM, SMART, and UASP. Please note that the target disk must be equal to or larger than the source disk.

The StarTech.com Advantage


StarTech.com N2-M2-SSD-DUPLICATOR. Product type: HDD/SSD duplicator, Number of simultaneous copies: 1 copies, Interface: USB 3.2 Gen 2 (3.1 Gen 2). Supported HDD sizes: 2.5,3.5", Supported HDD interfaces: Serial ATA, Serial ATA II, Serial ATA III, SSD interface: M.2, PCI Express 3.0, PCI Express 3.1. Power consumption (typical): 0.1 W, AC input voltage: 100 - 240 V, Input current: 1.5 A. Dimensions (WxDxH): 3.94 x 5.51 x 2.17" (100 x 140 x 55 mm), Weight: 10.3 oz (292 g). Package width: 9.8" (249 mm), Package depth: 4.65" (118 mm), Package height: 2.56" (65 mm)

Product type	HDD/SSD duplicator
Number of simultaneous copies	1 copies
Interface	USB 3.2 Gen 2 (3.1 Gen 2)
Product color	Black
Duplicator operating modes	Copy
Transfer rate	27 GB/min
Plug and Play	Yes
Chipset	JMS581D
Number of fans	0 fan(s)
LED indicators	Yes
Supported HDD sizes	2.5,3.5"
Supported HDD interfaces	Serial ATA, Serial ATA II, Serial ATA III
SSD support	Yes
SSD interface	M.2, PCI Express 3.0, PCI Express 3.1
Power consumption (typical)	0.1 W
AC input voltage	100 - 240 V
Input current	1.5 A
Output voltage	12 V
Output current	3 A
Power plug type	Type M
Included power plug types	ANZ, EU, JP, NA, UK
Dimensions (WxDxH)	3.94 x 5.51 x 2.17" (100 x 140 x 55 mm)
Weight	10.3 oz (292 g)
Package width	9.8" (249 mm)
Package depth	4.65" (118 mm)
Package height	2.56" (65 mm)
Package weight	21.2 oz (600 g)
Cables included	USB Type-C
AC adapter included	Yes
Manual	Yes
Operating relative humidity (H-H)	10 - 85%
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 70 °C
Compliance certificates	RoHS, Trade Agreements Act (TAA)
Master (outer) case length	13.8" (350 mm)
Master (outer) case width	20.1" (510 mm)
Master (outer) case height	10" (255 mm)
Quantity per master (outer) case	20 pc(s)
