CHF394.2
tax incl.
CHF364.7
tax excl.
In stock
CHF168.5
tax incl.
CHF155.9
tax excl.
In stock
Description

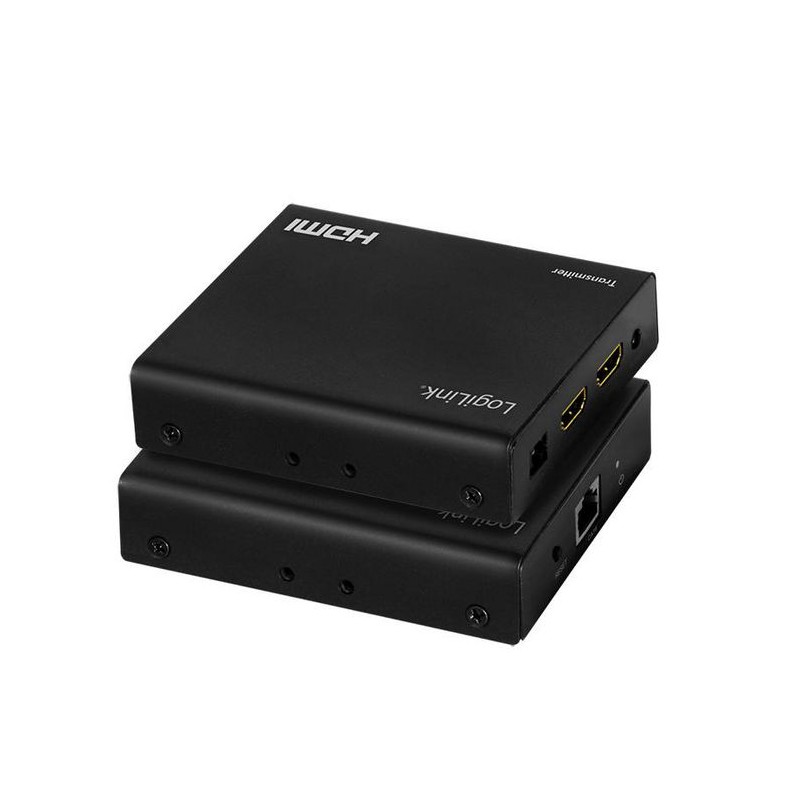

The LogiLink Ultra HD HDMI extender/splitter set (transmitter & receiver unit) offers an extender solution via TCP/IP for the highest demands and distributes audio and video signals of your HDMI device to up to two monitors, TVs or projectors. It transmits digital video and audio signals to a maximum length of up to 70 m over a single Cat.5e/6/7/8 network cable. The highest supported video resolution is 4K/60 Hz. With support for HDCP 1.4/2.2 (bypass function), HDR10, 3D, as well as audio transmission in LPCM 7.1, DTS, Dolby Digital, DTS-HD Master Audio and Dolby TrueHD, experience ultra-sharp image quality. The bidirectional infrared interface (transmitter, receiver) allows you to use the remote control of the connected input source. The additional PoC (Power over Cable) functionality allows you to power remote devices even if no external power source is available there.
- Based on IP technology over a single Cat.5e/6/7/8 cable
- Bandwidth: 6.0 Gbit/s at 600 MHz per channel (18 Gbit/s total)
- Supports Ultra HD A/V signal transmission up to 70 m/229 ft
- Supports UHD 4K/60 Hz YUV 4:4:4 and Full 3D
- Power supply unit: DC 12 V/1 A
- Supports HDMI Loop Out, EDID bypass, bidirectional IR function (broadband 20–60 KHz) and PoC (12 V)
- Compliant with HDCP 2.2/1.4
- Supports DDC and HDR10
- Support uncompressed audio such as LPCM7.1
- Support compressed audio such as DTS, Dolby Digital
- Metal chassis, mountable
- Plug-and-play – no driver installation needed
Specifications
Features
| 3D | Yes |
| Audio formats supported | DTS/LPCM |
| Bandwidth | 600 MHz |
| Bandwidth | 6 Gbit/s |
| Cable types supported | Cat5e/Cat6/Cat7/Cat8.1 |
| LED indicators | Yes |
| Material | Metal |
| Maximum transfer distance | 70 m |
| Product colour | Black |
| Type | AV transmitter & receiver |
Operational conditions
| Operating relative humidity (H-H) | 10 - 85 % |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -10 - 80 °C |
Ports & interfaces
| Connectivity technology | Wired |
| DC-in jack | Yes |
| Ethernet LAN | Yes |
| HDMI in | 1 |
| HDMI version | 2.0 |
| Number of HDMI outputs | 2 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
Power
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Input current | 0.4 A |
| Operating voltage | 12 V |
| Output current | 1 A |
| Power consumption (receiver) (max) | 1.6 W |
| Power consumption (transmitter) (max) | 1.3 W |
Vendor information
| Brand Name | LogiLink |
| Warranty | 4 |
Weight & dimensions
| Receiver dimensions (WxDxH) | 100 x 88 x 23 mm |
| Receiver weight | 200 g |
| Transmitter dimensions (WxDxH) | 100 x 88 x 23 mm |
| Transmitter weight | 200 g |
Product Details
2026-05-04
New
Data sheet
- 3D
- Yes
- Number of HDMI outputs
- 2
- Fernbedienungseingang (IR)
- 1
- DC-Eingangsbuchse
- Yes
- LED-Anzeigen
- Yes
- Unterstützte Audioformate
- DTS/LPCM
- Ethernet-LAN
- Yes
- Konnektivitätstechnologie
- Wired
- AC-Eingangsfrequenz
- 50 - 60 Hz
- AC-Eingangsspannung
- 100 - 240 V
- Ausgangsstrom
- 1 A
- Eingangsstrom
- 0.4 A
- Bandbreite
- 600 MHz
- Betriebsspannung
- 12 V
- Maximum Übertragungsentfernung
- 70 m
- HDMI-Version
- 2.0
- Typ
- AV transmitter & receiver
- Brand Name
- LogiLink
- Warranty
- 4
- Betriebstemperatur (TT)
- 0 - 70 °C
- Lagertemperatur (TT)
- -10 - 80 °C
- Relative Luftfeuchtigkeit bei Lagerung (HH)
- 5 - 90 %
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 10 - 85 %
- Produktfarbe
- Black
- Material
- Metal
- RJ-45-Ausgangsports
- 1
- RJ-45-Eingangsports
- 1
- Unterstützte Kabeltypen
- Cat5e/Cat6/Cat7/Cat8.1
- HDMI-Eingang
- 1
- Remote-Ausgang (IR).
- 1
- Leistungsaufnahme (Empfänger) (max.)
- 1.6 W
- Leistungsaufnahme (Sender) (max)
- 1.3 W
- Empfängerabmessungen (BxTxH)
- 100 x 88 x 23 mm
- Senderabmessungen (BxTxH)
- 100 x 88 x 23 mm
- Gewicht des Empfängers
- 200 g
- Sendergewicht
- 200 g
Specific References
- EAN13
- 4052792050769
- MPN
- HD0030
