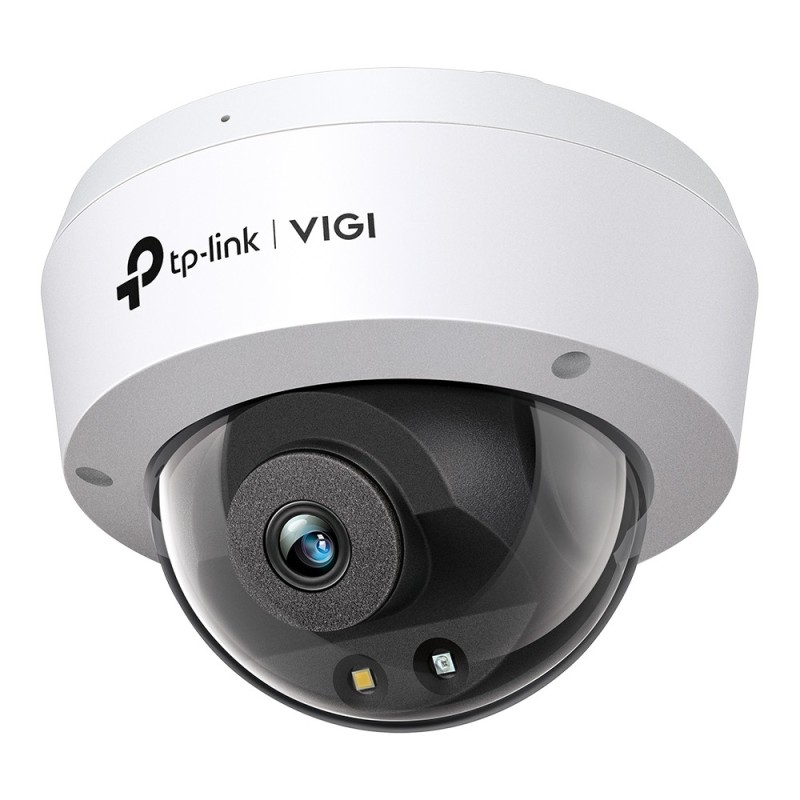

TP-Link VIGI C250, IP security camera, Indoor & outdoor, Wired, 120 dB, CE, NTRA, VCCI, KC, BSMI, FCC, IC, Ceiling
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Built-in light | Yes |
| Dynamic range | 120 dB |
| Certification | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
| Mounting type | Ceiling |
| Product color | White, Black |
| Form factor | Dome |
| Housing material | Plastic |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
| Weatherproof | Yes |
| Minimum illumination | 0.005 lx |
| Field of view (FOV) angle | 107° |
| Lens viewing angle, horizontal | 90° |
| Lens viewing angle, vertical | 48° |
| Lens viewing angle, diagonal | 107° |
| Tilt angle range | 0 - 85° |
| Pan range | 0 - 360° |
| Camera shutter speed | 1/3 - 1/10000 s |
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 1/2.7" |
| Progressive scan | Yes |
| Number of Privacy masking areas (panoramic camera) | 4 |
| Number of lenses | 1 |
| Detect distance | 3149.6" (80 m) |
| Observe distance | 1299.2" (33 m) |
| Recognize distance | 629.9" (16 m) |
| Maximum aperture number | 1.6 |
| Identify distance | 315" (8 m) |
| Fixed focal length | 0.157" (4 mm) |
| Night vision | Yes |
| Night vision distance | 30 m |
| Number of illumination LEDs | 1 |
| Infra-red wavelength | 850 nm |
| Maximum resolution | 2880 x 1620 pixels |
| Total megapixels | 5 MP |
| Video formats supported | H.264, H.264+, H.265, H.265+ |
| Supported graphics resolutions | 1280 x 720 (HD 720), 2048 x 1280, 2304 x 1296, 2688 x 1520, 1920 x 1080 (HD 1080), 2880 x 1620 |
| Supported video modes | 1080p, 720p, 2560p, 2880p |
| Video recording | Yes |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Bit rate | 256 Kbps - 6 Mbps |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| Sample rate | 8 kHz |
| Signal-to-Noise Ratio (SNR) | 52 dB |
| Built-in microphone | Yes |
| Voice codecs | G.711 |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Reset button | Yes |
| Power source type | DC |
| Power consumption (typical) | 1.5 W |
| Power consumption (max) | 7 W |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Height | 3.37" (85.7 mm) |
| Diameter | 4.53" (11.5 cm) |
| Weight | 9.88 oz (280 g) |
| Package width | 6.02" (153 mm) |
| Package depth | 7.6" (193 mm) |
| Package height | 4.72" (120 mm) |
| Package weight | 16.6 oz (470 g) |
| Package type | Box |
| Number of cameras | 1 |
