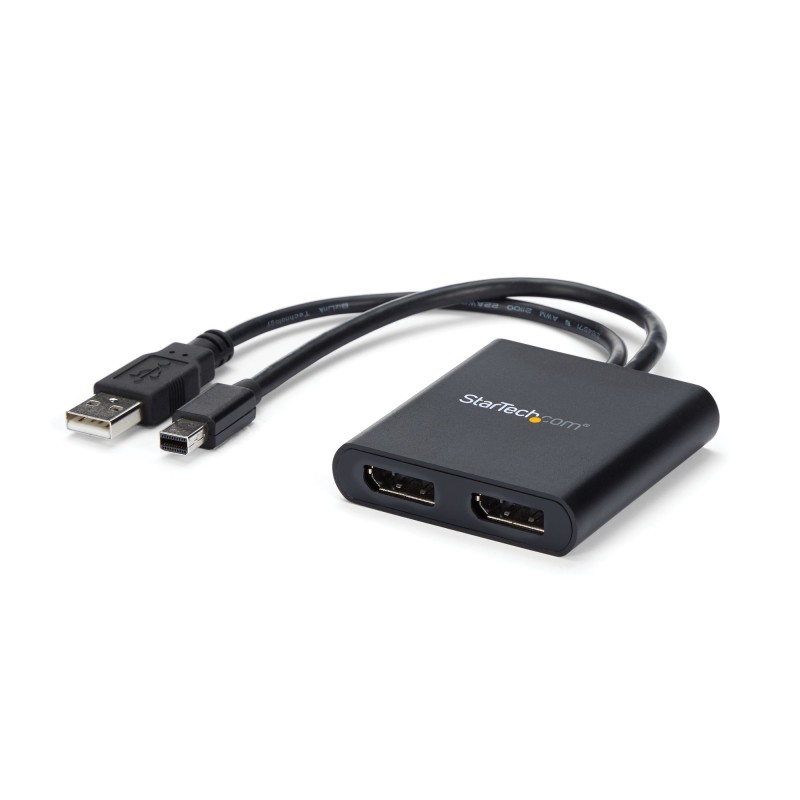

MSTMDP122DP

Use this adapter to connect two independent displays to a single mDP 1.2 port

This MST hub lets you connect two DisplayPort monitors to your Mini DisplayPort computer. MST works on any Windows® device that supports DisplayPort 1.2, such as models of the Lenovo™ Think Pad® and Microsoft® Surface™. When connected to earlier revisions of DisplayPort, such as DP 1.1 the MST hub acts as a video splitter. The MST hub is USB powered, so the only thing you'll need to operate the hub is your computer.

Increase your productivity with multiple monitors

The newest generations of laptops are more portable than ever, unfortunately this means you’re left with fewer video outputs and a small integrated screen. The MST hub solves these problems by letting you connect two independent displays to a single mDP port on your computer, which makes multitasking much easier. Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display, which makes it easier to multitask and increase your productivity - perfect for creating an easy-to-dock hot desk solution with a wireless keyboard and mouse peripheral set. You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.

Astonishing picture quality that won’t drain your system resources

MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. 4K is supported by the latest A/V devices and delivers four times the resolution of 1080p. Plus, because the MST hub can output high-definition 1080p, the MST hub is perfect for all high-resolution applications such as graphic design and medical imaging.

Works with any monitor, television or projector

With this MST hub, you can use separate mDP video adapters to connect HDMI, VGA or DVI displays, for compatibility with all of your existing monitors. The hub is VESA and DisplayPort certified to support DP 1.2 enabled systems, for seamless integration with your existing video equipment.

The MSTMDP122DP has been certified by Microsoft and tested for compatibility with your Microsoft Surface Pro 3, Surface Pro 4 and Surface Book and is backed by a 3-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage


StarTech.com MSTMDP122DP. Video port type: Mini DisplayPort, Video out: 2x DisplayPort. Maximum resolution: 3840 x 2160 pixels, Product color: Black, Housing material: Plastic. Width: 2.28" (58 mm), Depth: 15.2" (386 mm), Height: 0.551" (14 mm). Package width: 5.59" (142 mm), Package depth: 7.05" (179 mm), Package height: 1.06" (27 mm). Master (outer) case width: 13" (331 mm), Master (outer) case length: 19.7" (501 mm), Master (outer) case height: 9.49" (241 mm)

Video ports quantity	2
Video port type	Mini DisplayPort
Video out	2x DisplayPort
Maximum resolution	3840 x 2160 pixels
Product color	Black
Housing material	Plastic
HD type	4K Ultra HD
Maximum refresh rate	60 Hz
Cable length	7.48" (0.19 m)
Supported graphics resolutions	1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160
Plug and Play	Yes
Certification	CE, FCC, REACH
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
USB powered	Yes
Width	2.28" (58 mm)
Depth	15.2" (386 mm)
Height	0.551" (14 mm)
Weight	1.8 oz (51 g)
Package width	5.59" (142 mm)
Package depth	7.05" (179 mm)
Package height	1.06" (27 mm)
Package weight	5.01 oz (142 g)
Manual	Yes
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	50 - 90%
Compliance certificates	RoHS
Harmonized System (HS) code	85176990
Master (outer) case width	13" (331 mm)
Master (outer) case length	19.7" (501 mm)
Master (outer) case height	9.49" (241 mm)
Quantity per master (outer) case	28 pc(s)
