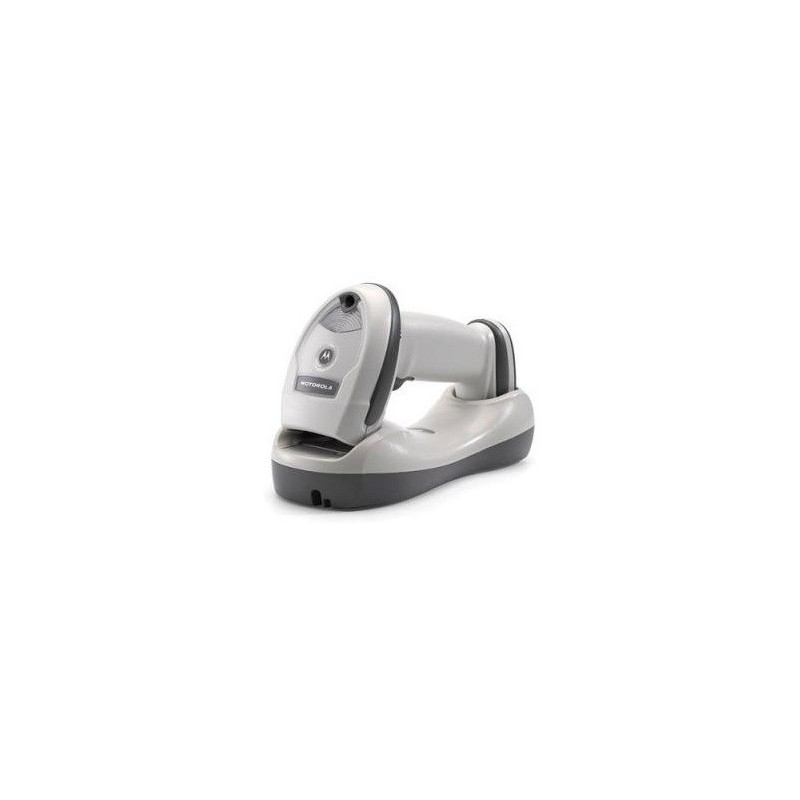

LI4278-TRWU0100ZWR

The LI4278 takes 1D bar code scanning to the next level, allowing workers to scan faster and farther as they can capture virtually any 1D bar code. Built for all day and everyday use, the LI4278 offers cordless freedom with Bluetooth compatibility. It also offers better encryption for improved security and better overall wireless performance. The LI4278 is backward compatible with its key accessory — the cradle — which works with its cousins, the LS4278 and DS6878. Superior battery power management delivers the largest number of scans per battery charge to support scan intensive applications. You can use it in dusty and wet environments and it can survive a 6 foot/1.8 m drop.

Excellent 1D scanning performance
Delivers superior scanning speed and a wide data capture range.

Captures virtually all 1D bar codes on any surface — including mobile phone displays
Capture labels printed on traditional paper labels as well as mobile bar codes that may be displayed on a mobile phone, tablet or computer screen.

Wide working range
Reads UPC barcodes from 1 in./2.54 cm to 30 in./76.2 cm as well as high density codes at extended ranges for application flexibility.

Superior motion and angular tolerance
Bar codes can be captured faster, and there is no need to pause between scans or align scanner and bar code.

Built-in rechargeable battery
Provides largest number of scans per charge – easily provides a full day of service in the highest usage profiles; replaceable battery ensures long lifecycle.

Compatible with 123Scan and Remote Scanner Management (RSM)
Dramatically reduces management time and cost, from initial configuration to day-to-day management.

Withstands 100 consecutive drops to concrete
Protects against downtime from breakage due to everyday drops.

Flexible mounting — vertical or horizontal
Desktop cradle provides versatility to accommodate your unique environment.

Bluetooth 2.1
Provides better security, better performance, better energy management and much easier pairing over the Bluetooth wireless connection.

Backward compatible
Works with LS4278 cradles, providing a very cost-effective upgrade path.

Motorola LI4278. Read rate (max): 547 reads/s, Light levels (direct sunlight): 0 - 108000 lx, Wavelength: 617 nm. Standard interfaces: USB, RS-232, RS-485, Bluetooth version: 2.1+EDR. Product color: White, Certification: FCC, ICES, IEC, RoHS, EN, UL. Weight: 7.9 oz (224 g), Width: 2.76" (70 mm), Depth: 7.32" (186 mm). Operating time: 4320 min, Maximum operating distance: 3937" (100 m)

Read rate (max)	547 reads/s
Light levels (direct sunlight)	0 - 108000 lx
Wavelength	617 nm
Pitch reading angle	-65 - 65°
Decoding standards	UPC/EAN, UPC-A, UPC-E, UPC-E1, EAN-8/JAN 8, EAN-13/JAN 13, Bookland EAN, Bookland ISBN, UCC Coupon, ISBT 128, Code 39, Code 93, Matrix 2/5, Interleavd 2/5, Discrete 2/5, Codabar, MSI Chinese 2/5, GS1
Standard interfaces	USB, RS-232, RS-485
Bluetooth version	2.1+EDR
Bluetooth	Yes
Product color	White
Certification	FCC, ICES, IEC, RoHS, EN, UL
Weight	7.9 oz (224 g)
Width	2.76" (70 mm)
Depth	7.32" (186 mm)
Height	3.86" (98 mm)
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 85%
Operating time	4320 min
Maximum operating distance	3937" (100 m)
