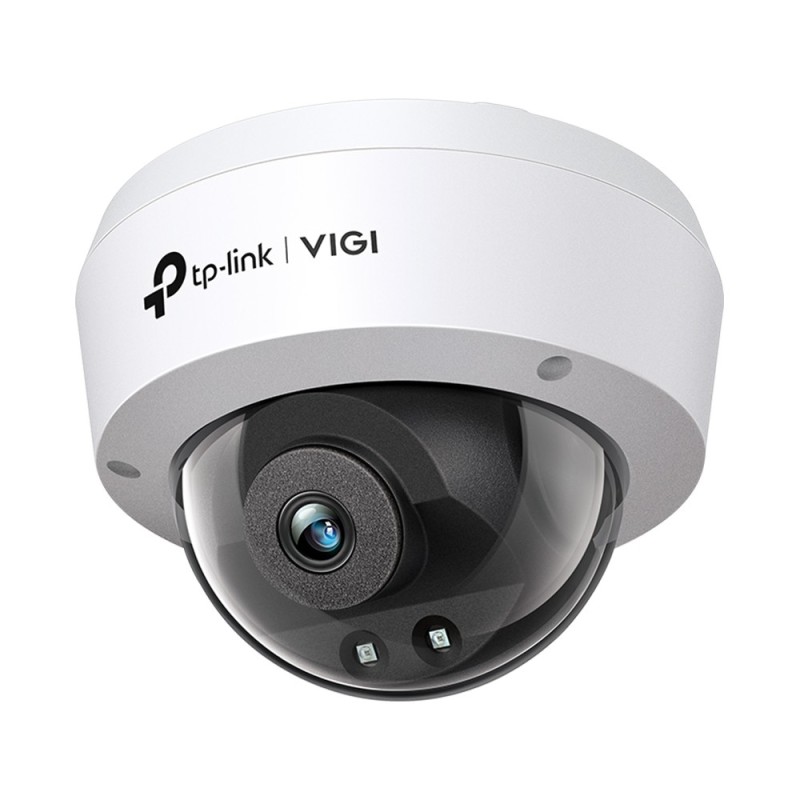

TP-Link VIGI C240I (4mm), IP security camera, Indoor & outdoor, Wired, CE, BSMI, VCCI, ONVIF, Ceiling/wall, Black, White
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Certification | CE, BSMI, VCCI, ONVIF |
| Mounting type | Ceiling/wall |
| Product color | Black, White |
| Form factor | Dome |
| Housing material | Plastic |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
| Minimum illumination | 0 lx |
| Lens viewing angle, horizontal | 75.1° |
| Lens viewing angle, vertical | 41.5° |
| Lens viewing angle, diagonal | 88.7° |
| Sensor type | CMOS |
| Optical sensor size | 1/3" |
| Number of lenses | 1 |
| Lens diameter | 0.157" (4 mm) |
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 1 |
| Infra-red wavelength | 850 nm |
| Maximum resolution | 2560 x 1440 pixels |
| Total megapixels | 4 MP |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Supported graphics resolutions | 320 x 240, 352 x 288, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440 |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Noise reduction technology | 3D noise reduction |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness |
| Privacy masking | Yes |
| Bit rate | 64 Kbps - 4 Mbps |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Number of simultaneous live view channels | 3 channels |
| Built-in HDD | No |
| Ethernet LAN (RJ-45) ports | 1 |
| Password protection | Yes |
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Intelligent Video Surveillance (IVS) system features | Abandoned object, Crossing line, Human detection, Intrusion, Region entrance detection, Region exiting detection, Vehicle detection |
| Mirror | Yes |
| Digest authentication | Yes |
| Web-based management | Yes |
| Management software | VIGI App, VIGI Security Manager, VIGI NVR |
| Power source type | PoE |
| Power consumption (max) | 5 W |
| Operating temperature (T-T) | -30 - 60 °C |
| Width | 4.53" (115 mm) |
| Depth | 4.53" (115 mm) |
| Height | 3.39" (86 mm) |
| Basic event | Motion Detection, Camera Tampering Detection, Exception |
| Package width | 6.02" (153 mm) |
| Package depth | 7.6" (193 mm) |
| Package height | 4.72" (120 mm) |
| Package weight | 15.9 oz (450 g) |
| Compliance certificates | CE |
| Number of cameras | 1 |
| Mounting kit | Yes |
