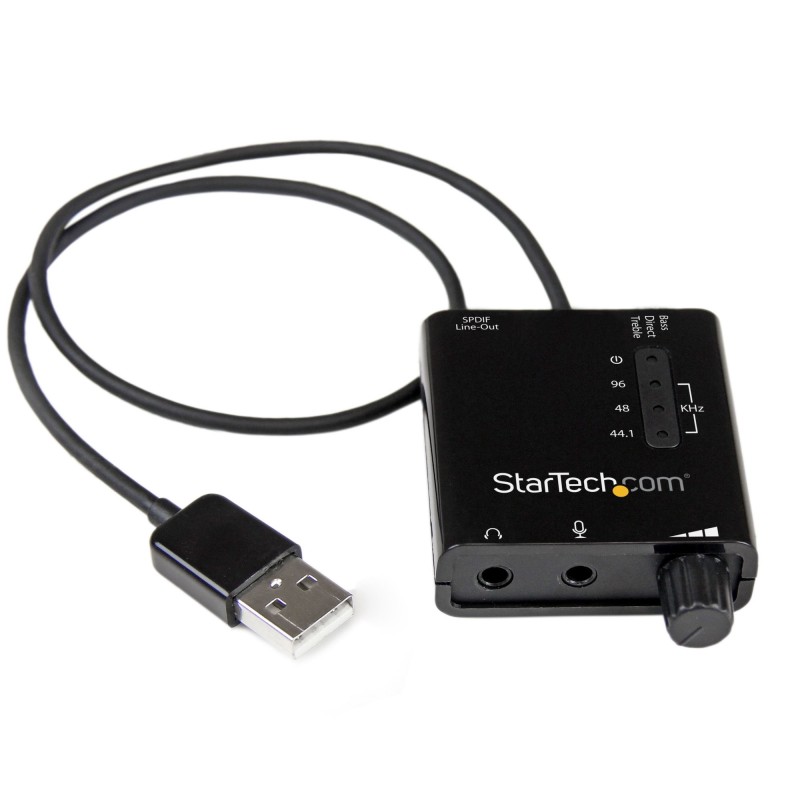

ICUSBAUDIO2D

Add an SPDIF digital audio output and standard 3.5mm audio/microphone connections to your system through USB

The ICUSBAUDIO2D External USB Sound Card lets you add an S/PDIF digital audio output and standard 3.5mm analog audio/microphone connections to your system through USB - a convenient way to bypass or replace an internal sound card without having to open the computer case.

For home-theater quality sound, the USB DAC (digital-to-analog converter) offers 96KHz / 24-bit sampling rates for playback, and a 3.5mm S/PDIF port with support for Dolby® Digital 5.1 surround sound (AC3) and DTS® pass-through (Note: 5.1 surround sound is supported in Windows® only).

This versatile USB audio adapter features an integrated 3.5mm 4-position TRRS connection for your headphones or combination headset/microphone. Also a convenient external volume control for quick adjustments, a hardware EQ switch for Bass or Treble boosting, and an LED status bar to display the current sampling rate.

Please note that the microphone input is stereo only.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage


StarTech.com ICUSBAUDIO2D. Audio output channels: 5.1 channels, Audio quality: 24 bit, Line-out Signal-to-Noise Ratio (SNR): 91 dB. Host interface: USB. Cable length: 16" (0.406 m), Chipset: C-Media CM6533, Product color: Black. Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,..., Mac operating systems supported: Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion. Weight: 1.16 oz (33 g), Width: 1.81" (46 mm), Depth: 1.85" (47 mm)

Internal	No
Audio output channels	5.1 channels
Audio quality	24 bit
Line-out Signal-to-Noise Ratio (SNR)	91 dB
Host interface	USB
Headphone outputs	1
Digital audio optical out	1
Microphone in	Yes
LED indicators	Yes
Cable length	16" (0.406 m)
Chipset	C-Media CM6533
USB powered	Yes
Product color	Black
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac compatibility	Yes
Mac operating systems supported	Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion
Weight	1.16 oz (33 g)
Width	1.81" (46 mm)
Depth	1.85" (47 mm)
Height	0.63" (16 mm)
Package width	6.81" (173 mm)
Package depth	5.63" (143 mm)
Package height	1.26" (32 mm)
Package weight	3.74 oz (106 g)
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Quick start guide	Yes
Housing material	Plastic
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	0 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Harmonized System (HS) code	84733020
Master (outer) case width	15.9" (405 mm)
Master (outer) case length	18.5" (470 mm)
Master (outer) case height	10.9" (277 mm)
Quantity per master (outer) case	50 pc(s)
