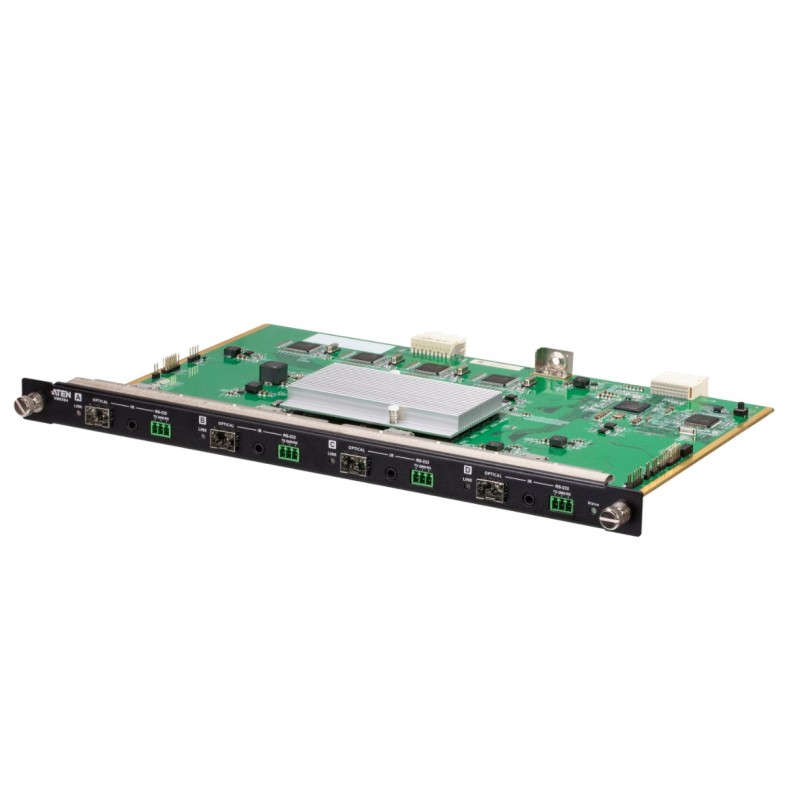

VM8584K2-AT

The VM8584 4-Port 10G Optical Output Board offers an easy way to route 4 HDMI sources to HDMI displays through optical extenders, and up to 16/32 input and 16/32 output connections on an ATEN Modular Matrix Switch through various AV interfaces. Designed with fiber optics technology for long-distance transmission, the VM8584 along with its SFP+ module extends uncompressed 4K signal up to 300 m (using VM8584K1) or 10 km (using VM8584K2) over duplex fiber optic cables. The optical fiber simplifies cabling by guaranteeing an interference-free long-haul transmission of audio, video, IR, and RS-232 control signals over one single set of duplex cables that easily connects to the SFP+ slot. Moreover, the VM8584 supports a high data rate of 10.2 Gbps and meets HDMI Specifications that include 3D, Deep Color, and 4K to ensure superior video quality.
1x VM8584 4-Port 10G Optical Output Board
4x SFP+ Modules
4x 3-Pole Terminal Blocks
1x IR Receiver
1x IR Emitter
1x User Instructions

ATEN VM8584K2-AT. Product type: Output board, Product color: Black, Material: Metal. Power consumption (typical): 22.96 W. Width: 9.37" (238 mm), Depth: 13.9" (352 mm), Height: 0.917" (23.3 mm). Package width: 11.2" (285 mm), Package depth: 16.8" (426 mm), Package height: 2.24" (57 mm). Quantity per master (outer) case: 2 pc(s), Master (outer) case weight: 6.08 lbs (2.76 kg), Master (outer) case length: 17.3" (440 mm)

Product type	Output board
Product color	Black
Material	Metal
LED indicators	Yes
Compatibility	Aten VM3250/VM3200/VM1600A
Power consumption (typical)	22.96 W
Width	9.37" (238 mm)
Depth	13.9" (352 mm)
Height	0.917" (23.3 mm)
Weight	22.9 oz (650 g)
Package width	11.2" (285 mm)
Package depth	16.8" (426 mm)
Package height	2.24" (57 mm)
Package weight	2.54 lbs (1.15 kg)
Quick start guide	Yes
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 80%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	0 - 80%
Quantity per master (outer) case	2 pc(s)
Master (outer) case weight	6.08 lbs (2.76 kg)
Master (outer) case length	17.3" (440 mm)
Master (outer) case width	11.8" (300 mm)
Master (outer) case height	5.43" (138 mm)
Master (outer) case net weight	2.87 lbs (1.3 kg)
