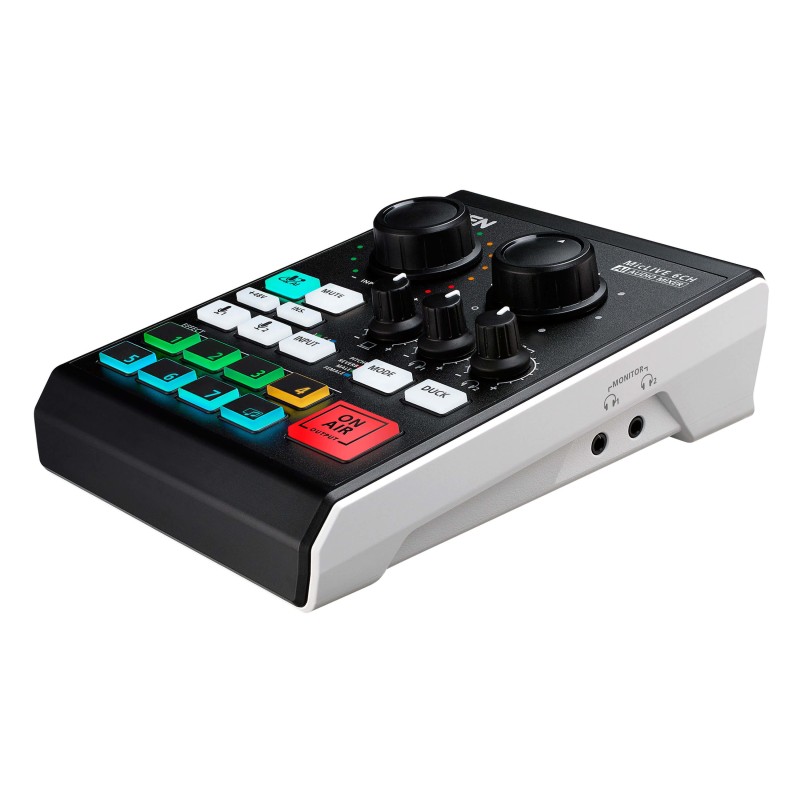

UC8000-AT

AI Power Makes Podcasts Better Than Ever
MicLIVE™ is the industry’s first AI-optimized audio mixer that integrates a USB audio interface, voice effects processor, and sound effects pads. It adopts acoustic enhancement with its AI Smart-EQ to solve common recording issues and optimize the voice recording experience to simplify podcast production.

Professional Podcasting, Easier Than Ever
Complex audio engineering is simplified into a few simple taps from audio input processing to sound effect invoking. Create great sound with one click of AI Smart-EQ to create sound that usually only professionals know how to tune. Then use Voice FX to further polish your sound and invoke sound effects to enrich your recording.

Studio-grade Playback and Recordings
With two combo jack (XLR/6.3mm microphone or instrument) inputs, phantom power, and a studio-grade pre-amp, you can connect pro-level condenser mics and any instrument to get a crystal clear, low-noise signal with high-resolution 24bit/96kHz playback and recordings. Two headphone outputs allows for two-person monitoring, each with a dedicated volume control. Easily take remote calls or play background music from a smartphone thanks to 3.5mm TRRS input.

Everything You Need for Podcasts Is Here
Packed with a powerful set of features to streamline your podcast workflow and enrich your programs. Just one user can create a pro-level broadcast on their own.

Voice FX – Fine-tune Your Voice
Personalize and optimize your voice in any scenario with Voice FX. With it you can switch among Pitch, Reverb, Male, and Female effects and spin the knob based on the performance scenario to personalize your vocal tone. Whether you’re recording a talk or singing, Voice FX makes your voice stand out from the crowd.

Enrich Your Program with Color-coded Jingle Pads
MicLIVE™ features eight customizable jingle pads for triggering sound effects in real time. Each pad is highly customizable. You can record direct to a pad from any of MicLIVE™’s inputs or assign audio and the pad’s color from the computer app.

Mix Any Podcast Genre from Anywhere
Powered by USB 5V, MicLIVE™ can operate using USB bus power and also be powered by a mobile battery. Its truly mobile design allows you to carry it to any venue for mixing and streaming audio whether it’s a talk, interview, music, or more.

Unlimited Control with the OnAir™ Audio App
The MicLIVE™ App allows access to every feature in the mixer, giving you additional control over DSP parameters such as compressor, equalizer, Echo, Filter, Pitch, Reverb, and more. You can also customize the jingle pads with icon, playback mode, color, and volume for a more personal style and to speed up your workflow.

ATEN UC8000. Channels quantity: 6 channels, Digital sound processing: 24 bit, Supported sample rates: 96 kHz. Input impedance: 2500 Ω, Microphone input impedance: 3000 Ω. Headphone connectivity: 3.5 mm. Power consumption (typical): 2.55 W. Country of origin: Taiwan, Master (outer) case weight: 9.33 lbs (4.23 kg), Master (outer) case length: 19.7" (500 mm)

Channels quantity	6 channels
Digital sound processing	24 bit
Supported sample rates	96 kHz
Sample rate	96 kHz
Frequency range	20 - 20000 Hz
Input impedance	2500 Ω
Microphone input impedance	3000 Ω
Built-in display	No
Headphone connectivity	3.5 mm
XLR in	Yes
DJ mixer	No
Rack mounting	No
Video capability	No
Product color	Black, Gray
Headphone out	Yes
USB port	Yes
USB connector type	USB Type-C
Package volume	5663.37 cm³
Master (outer) case volume	32847.54 cm³
Power consumption (typical)	2.55 W
Country of origin	Taiwan
Master (outer) case weight	9.33 lbs (4.23 kg)
Master (outer) case length	19.7" (500 mm)
Master (outer) case width	9.13" (232 mm)
Master (outer) case height	11.1" (283 mm)
Width	7.12" (180.9 mm)
Depth	5.14" (130.5 mm)
Height	2.47" (62.7 mm)
Weight	14.8 oz (420 g)
Package width	3.74" (95 mm)
Package depth	10.4" (265 mm)
Package height	8.66" (220 mm)
Package weight	26.1 oz (740 g)
Manual	Yes
Cables included	USB Type-C
Quick start guide	Yes
